AC Main + Additional Positions Circuit Panel
AC Main + Additional Positions Circuit Panel

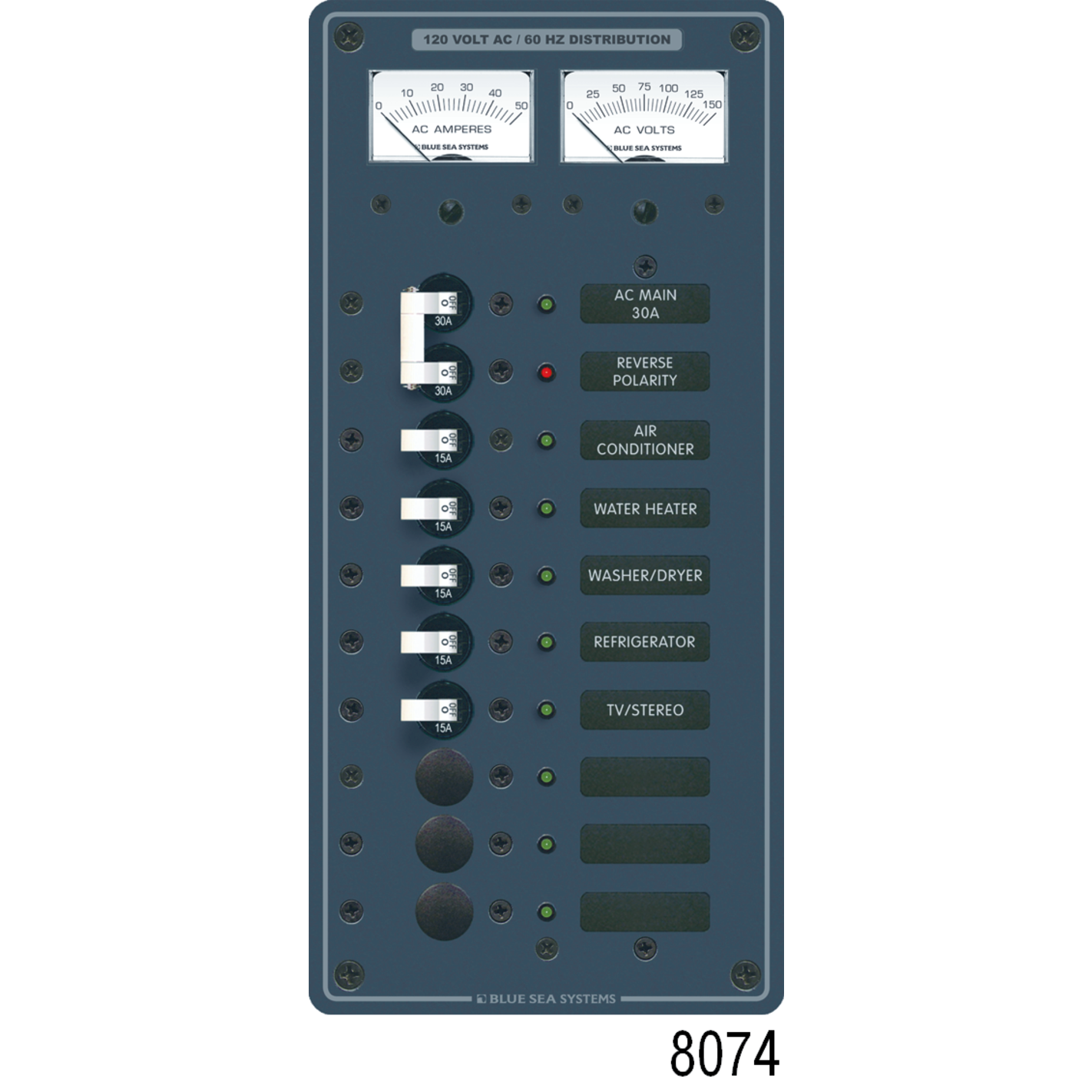

AC Main + Additional Positions Circuit Breaker Panel, AC Main + 8 Positions Breaker Panel (White Toggle)
SKU: 97462 Item ID: B/S 8074
- Backlighting
- Reverse polarity indicator
- Analog meters
Description
• Panel is ready to install
• All hot, neutral and safety ground buses installed, fully pre-wired
• Red reverse polarity indicating LED
• Includes pre-installed backlighting, LEDs and 30 common AC labels
• One double-pole 30 Amp AC main circuit breaker occupies 2 positions
• Panel main bus is rated at 50 amps
• Analog micro voltmeter (No.8244 for 120V panels displays 0-150 volts)
• Analog micro ammeter (No.8246), 0-50 amp AC; includes AC current transformer (coil)
Specifications
MFG #:8074
| TypeAC Main + 8 Positions Breaker Panel (White Toggle)
Type
AC Main + 8 Positions Breaker Panel
Dimensions
5.25"W x 11.25"H
Toggle
White
Breakers
5 x 15A
Volts
120 VAC
Empty
3
Warning
This item may be known to the State of California to cause cancer, birth defects, or other reproductive harm.
Barcode
632085080747
