Description
ANL fuses provide cost effective circuit protection in capacities from 35A to 750A.
⢠Silver-plated connector blades for corrosion resistance
⢠Fusible link window provides visible indication of blown condition
⢠Interrupt capacity: 5,000 amperes DC (a measure of the current which can be interrupted without catastrophic failure); satisfies ABYC requirements for main DC circuit protection on large battery banks
⢠Voltage rating: 32 volts DC
⢠35 - 500 amp fuses are ignition protected to SAE J1171; safe for installation aboard gasoline powered boats
Specifications
MFG #:5122
| Amps50A
Type
50A
Ignition Protected
Yes
Warning
This item may be known to the State of California to cause cancer, birth defects, or other reproductive harm.
Barcodes
632085051228
5122
50632085051223
5122
50632085051223
Product Options
| Selected | SKU # | MFG # | Availability | Amps | Price | Quantity | |
|---|---|---|---|---|---|---|---|
| SKU #: 64895 | MFG #: 5122 | 24 In Stock Ships immediately | 50A | $22.96 Each | |||
| SKU #: 64896 | MFG #: 5123 | 15 In Stock Ships immediately | 60A | $22.96 Each | |||
| SKU #: 64897 | MFG #: 5124 | 16 In Stock Ships immediately | 80A | $22.96 Each | |||
| SKU #: 64898 | MFG #: 5125 | 28 In Stock Ships immediately | 100A | $22.96 Each | |||
| SKU #: 64899 | MFG #: 5126 | 13 In Stock Ships immediately | 130A | $22.96 Each | |||
| SKU #: 64900 | MFG #: 5127 | 19 In Stock Ships immediately | 150A | $22.96 Each | |||
| SKU #: 64901 | MFG #: 5128 | 12 In Stock Ships immediately | 175A | $22.96 Each | |||
| SKU #: 64902 | MFG #: 5129 | 16 In Stock Ships immediately | 200A | $22.96 Each | |||
| SKU #: 64904 | MFG #: 5131 | 17 In Stock Ships immediately | 250A | $27.15 Each | |||
| SKU #: 64906 | MFG #: 5133 | 23 In Stock Ships immediately | 300A | $27.15 Each | |||
| SKU #: 64908 | MFG #: 5135 | 18 In Stock Ships immediately | 350A | $27.15 Each | |||
| SKU #: 64909 | MFG #: 5136 | 21 In Stock Ships immediately | 400A | $27.15 Each | |||

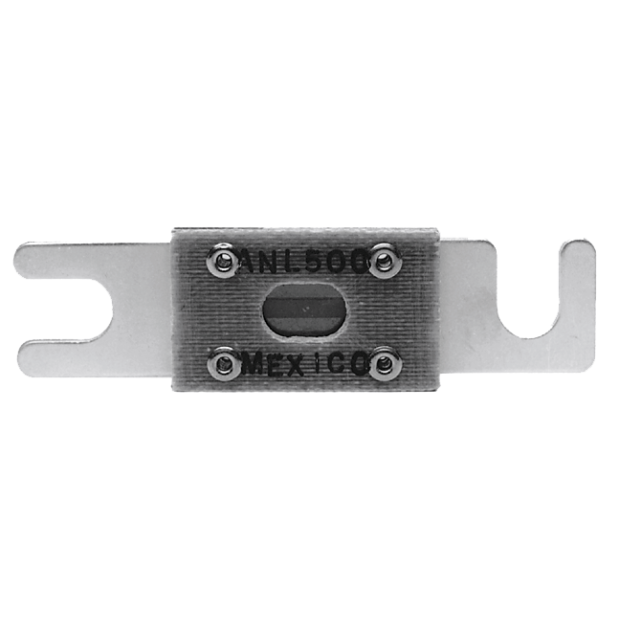

| SKU #: 64910 | MFG #: 5137 | 20 In Stock Ships immediately | 500A | $27.15 Each | |||
| SKU #: 132312 | MFG #: 5161 | 3 In Stock Ships immediately | 600A | $41.47 Each | |||
| SKU #: 132314 | MFG #: 5163 | 3 In Stock Ships immediately | 750A | $41.47 Each | |||

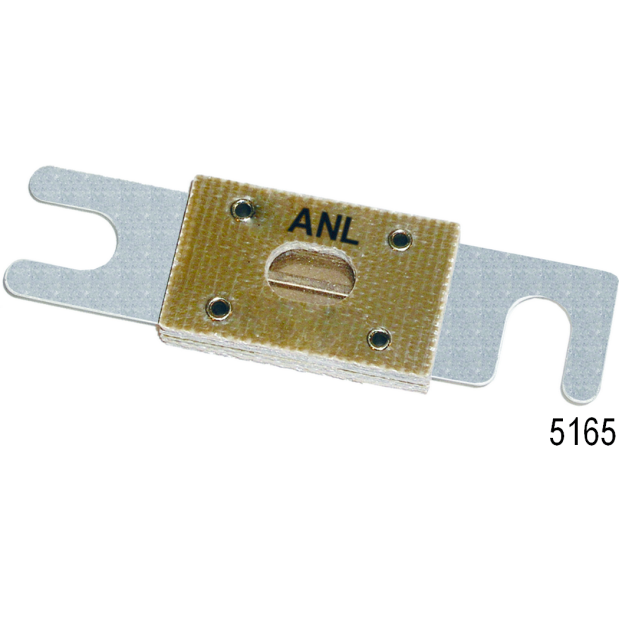

| SKU #: 166117 | MFG #: 5164 | 20 In Stock Ships immediately | 35A | $22.96 Each | |||
| SKU #: 188230 | MFG #: 5165 | 1 Remaining In Stock Ships immediately | 40A | $22.96 Each |
