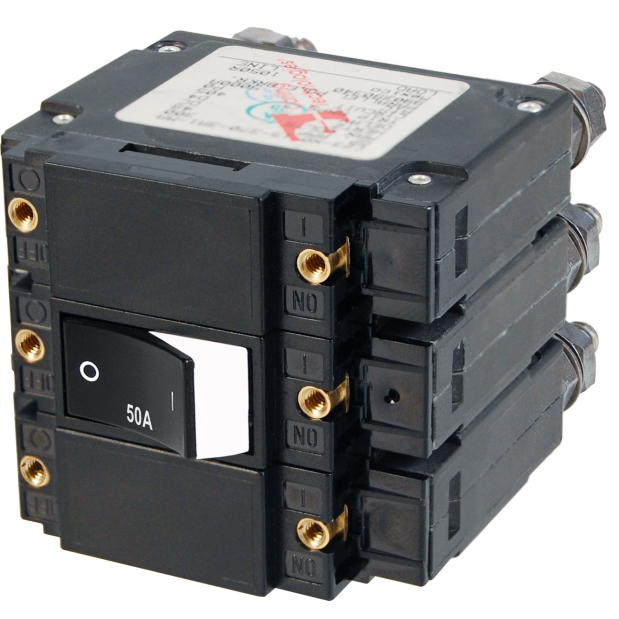

• 5,000 Ampere interrupt capacity to meet ABYC requirements for 120/240 Volt 50 Ampere main protection
• Double pole can be used as 120 Volt AC main circuit breaker to switch hot and neutral
• Triple pole can be used as 240 Volt AC main circuit breaker to switch both lines (hots) and neutral
• Circuit breakers will trip all poles if any one pole trips
• “Trip Free” design cannot be held “ON” during fault current condition
Terminal Stud Torque: 35 in-lb (3.95 Nm)
Interrupt Capacity: 5000A @ 120V AC
Minimum Operating Temperature: -40° C
Maximum Operating Temperature: 85° C
Mounting Screw: 6-32 Stainless Steel
Mounting Screw Torque: 6 in-lb (0.68 Nm)
Switching Cycles: 10000
Terminal Stud: 1/4-20 Tin-Plated Brass
