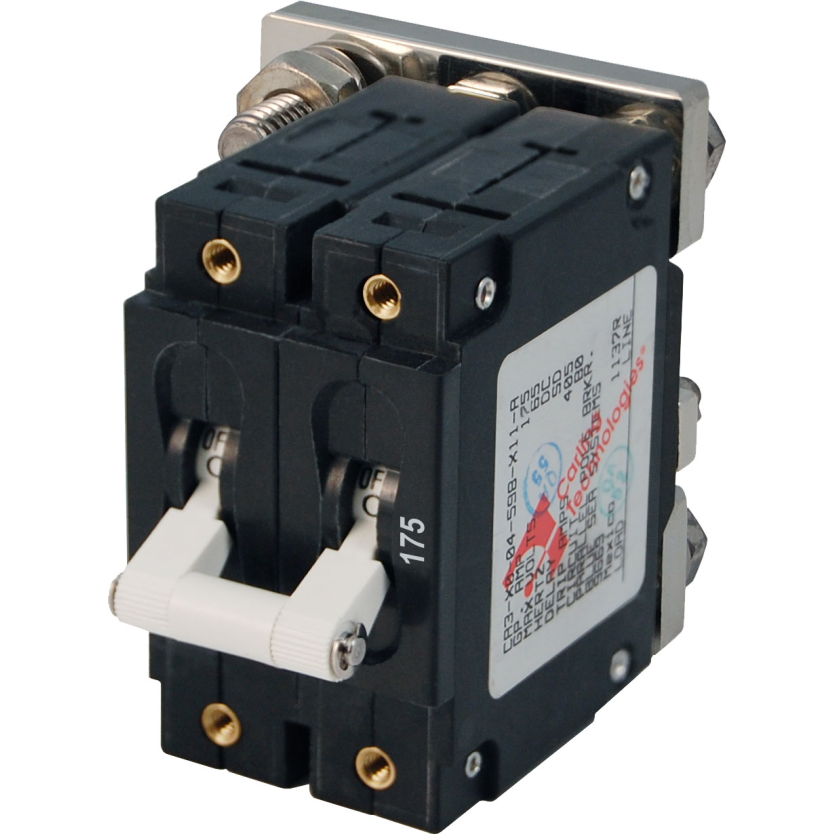

C-Series White Toggle Circuit Breaker
- Double Pole 175 Amp
Description
• Paralleled poles have 5/16" stud on bus
• Provides overcurrent protection for inverters, bow thrusters, and windlasses
• Combines switching and circuit protection into a single device
• "Trip Free" - cannot be held closed after trip
Maximum Voltage: 120V AC, 240V AC, 65V DC
Circuit Breaker Type: Magnetic Hydraulic - trip free
Terminal Stud Torque: 35 in-lb (3.95 Nm)
Interrupt Capacity: 5000A @ 65V DC
Specifications
MFG #:7268
Warning
This item may be known to the State of California to cause cancer, birth defects, or other reproductive harm.
Barcode
632085072681
