Common 150A BusBar - Four 1/4"-20 Studs

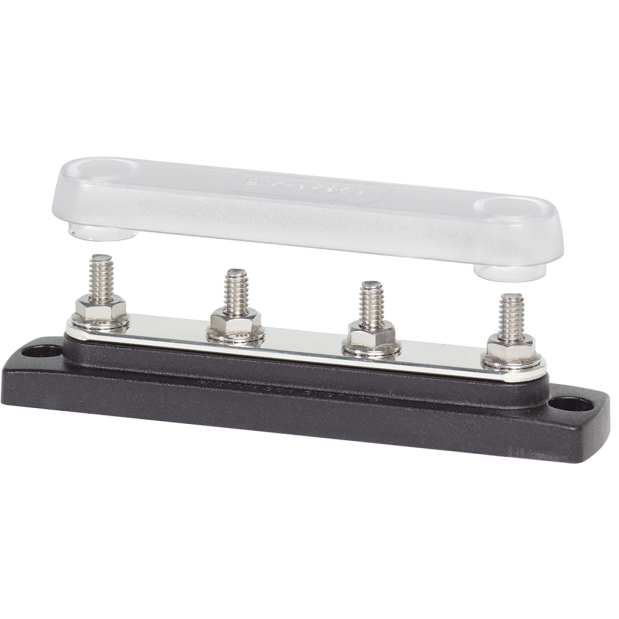

Common 150A BusBar - Four 1/4"-20 Studs with Cover
SKU: 191903 Item ID: B/S 2307
Description
• The industry standard busbar for positive distribution
• The industry standard busbar for the collection of negative or AC ground circuits
• The ABYC recommends no more than 4 wire terminals per stud
Specifications
MFG #:2307
# Terminals
4
Base Material
Reinforced Polycarbonate
Bus Material
Tin-Plated Copper CDA 110 / UNS 11000
Cover Material
Clear Polycarbonate
Max. Voltage
48V DC, 300V AC
Terminal Type
1/4" Stud
Type
Common 150A BusBar - Four 1/4"-20 Studs with Cover
Weight
0.39 lb
Barcodes
2307
632085023072
10632085023079
632085023072
10632085023079
