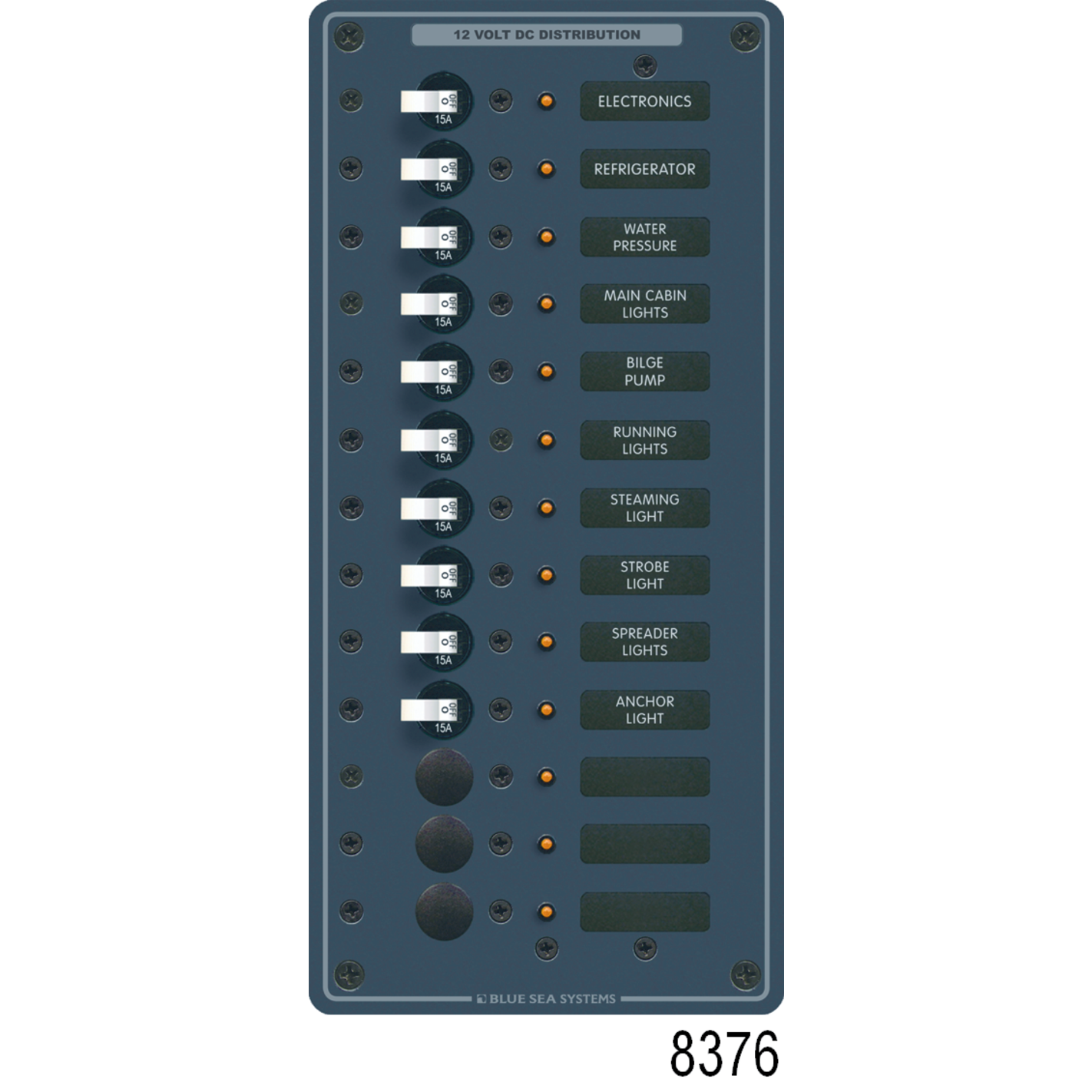

DC 13 Position Circuit Breaker Panel

SKU: 158907 Item ID: B/S 8376

LED Backlighting
Configure for 12 or 24V
Includes 30 common DC labels

Your Price:$456.91/ Each

Availability:

1 Remaining In Stock

Ships immediately

Quantity:

Return Policy

Overview

Specifications

Description

• Panel is ready for installation
• All positive, negative and grounding buses installed, fully pre-wired
• 13 DC circuit breaker positions
• Ten 15 ampere single pole circuit breakers installed; 3 empty positions
• Panel main bus is rated at 100 amps
• Includes pre-installed backlighting and LEDs
• Includes set of 30 common DC labels
• Can be configured for 12 or 24 volts with supplied labels
• Detailed installation instructions and cutout template
• Dimensions: 11.25"H x 5.25"W

Specifications

MFG #:8376

Dimensions

11.25"H x 5.25"W

Toggle

White

Volts

12 / 24 VDC

Barcode

632085083762
