- Digital meter
- LED backlighting
- 30 common labels included

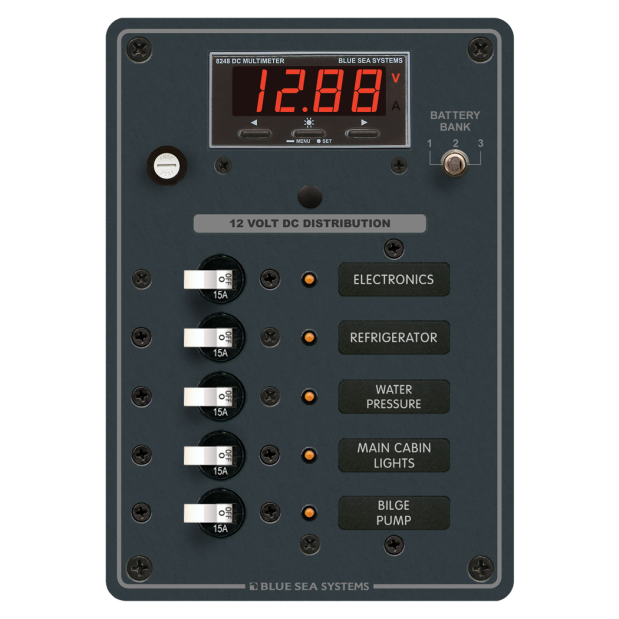

Description
• Panel is ready for installation
• All positive, negative and grounding buses installed, fully pre-wired
• Five 15 ampere single pole circuit breakers installed
• Includes DC digital multimeter with alarm (No. 8248)
• DC digital multimeter displays +/- 500 amperes, voltage to 60V, includes high and low voltage alarms with 3 position switch for multiple battery banks
• Meter display has 3 levels of brightness and a sleep mode
• Includes 500 amp shunt (No. 8255)
• Panel main bus is rated at 100 amps DC
• Includes pre-installed backlighting and LEDs
• Includes set of 30 common DC labels
• Can be configured for 12 or 24 volts
• Detailed installation instructions and cutout template
Specifications
8401
