- Integral backlight
Description
• Standard size 2-3/4" face
• Simple 2-wire connection from shunt - no other power required
• Meter senses and is powered from shunt connection
• Packaged complete with shunt (except #8005 with internal shunt)
• Shunt type: 50 millivolts at meter full scale
• Meter operating current: 1 milliampere at full scale
• Integral backlight for low-light readability
• Dimensions: 2.375" x 2.800"
• Mounting hole: 2.125" diameter
Specifications
MFG #:8017
| Range0-100A DC
Type
0-100A DC
Shunt Type
External
Warning
This item may be known to the State of California to cause cancer, birth defects, or other reproductive harm.
Barcode
632085080174
Product Options
| Selected | SKU # | MFG # | Availability | Range | Price | Quantity | |
|---|---|---|---|---|---|---|---|

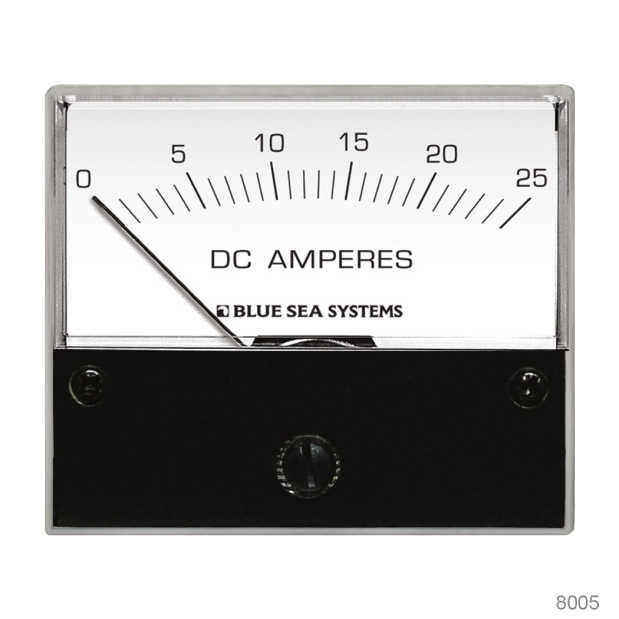

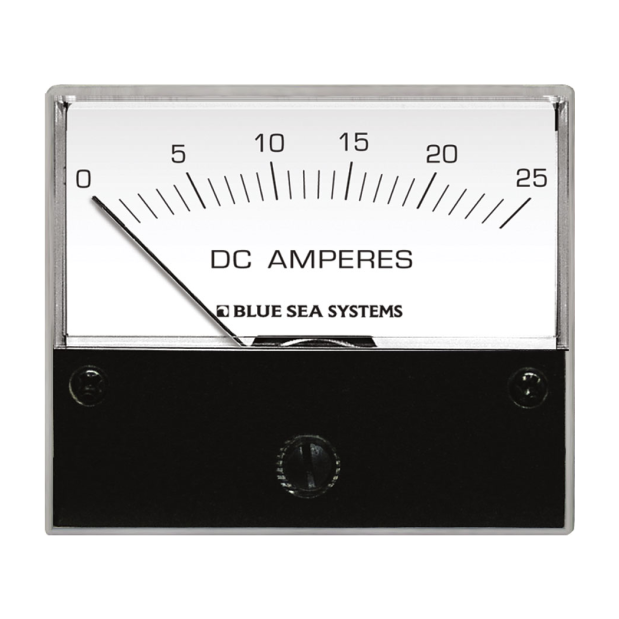

| SKU #: 64929 | MFG #: 8005 | Out of Stock | 0- 25A DC | $45.57 | |||

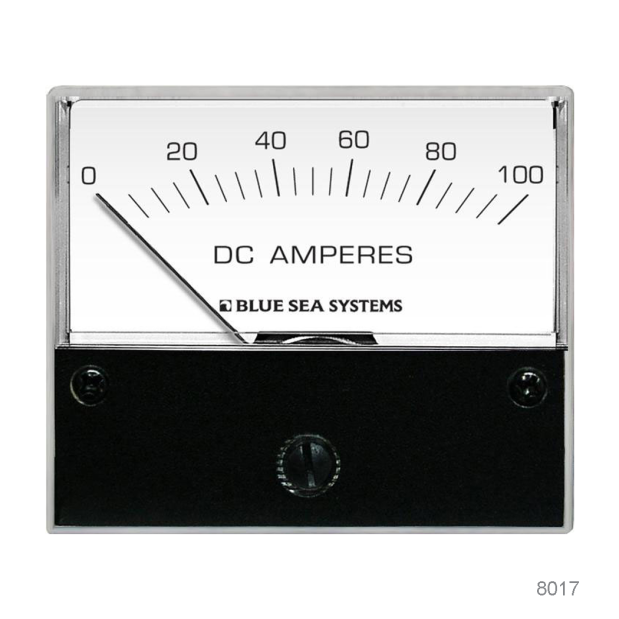

| SKU #: 64939 | MFG #: 8017 | 2 In Stock Ships immediately | 0-100A DC | $85.33 | |||

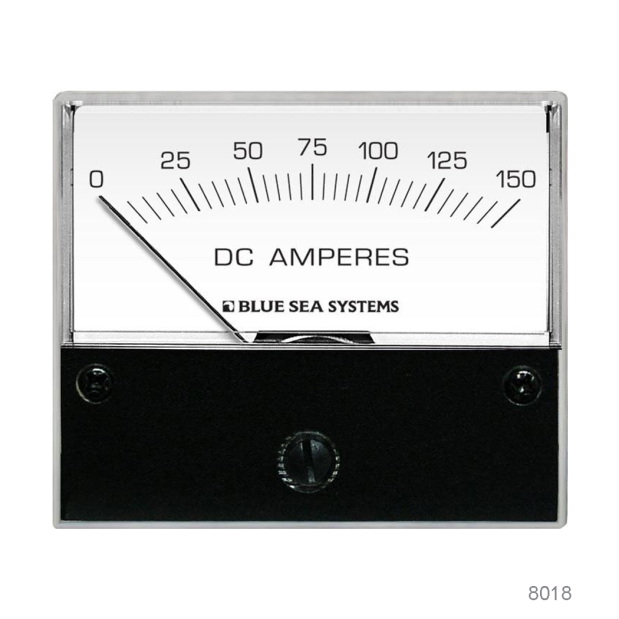

| SKU #: 64940 | MFG #: 8018 | 2 In Stock Ships immediately | 0-150A DC | $85.33 | |||

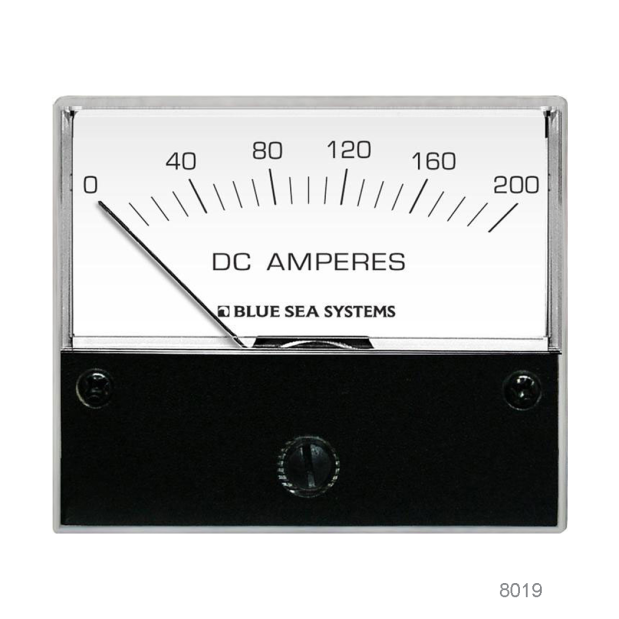

| SKU #: 64941 | MFG #: 8019 | Special Order Only | 0-200A DC | $107.59 | |||

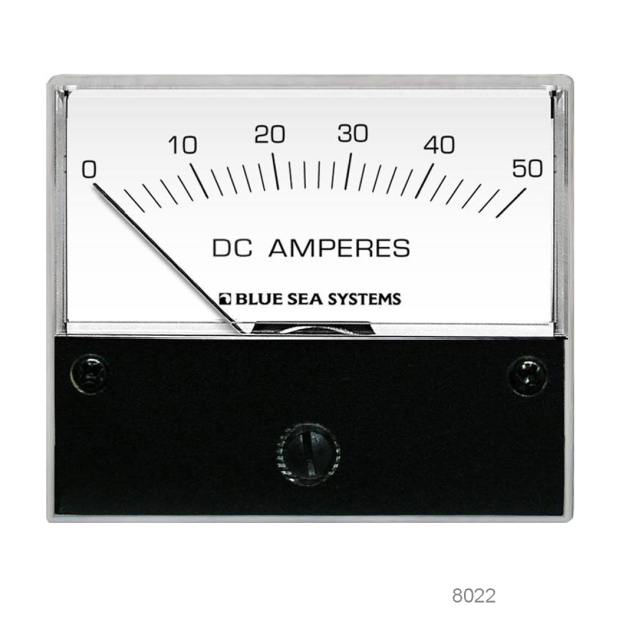

| SKU #: 71946 | MFG #: 8022 | 1 Remaining In Stock Ships immediately | 0- 50A DC | $85.33 |
