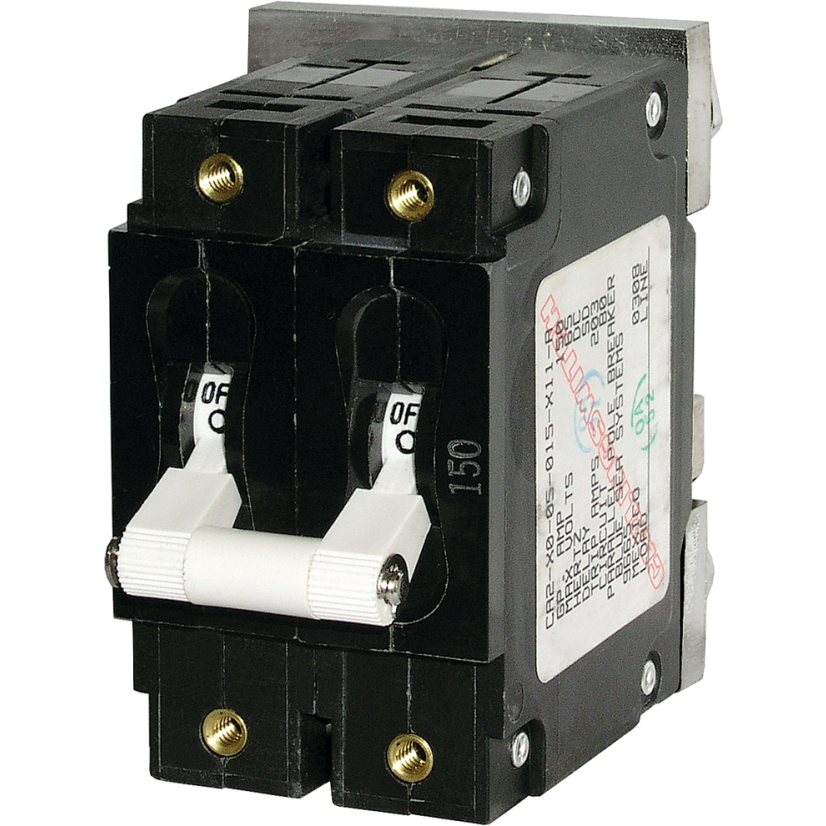

DC C-Series Double Pole Circuit Breakers, 150A DC
SKU: 79915 Item ID: B/S 7267
Description
• 5 to 300 ampere range provides over-current protection previously only available in fuses for inverters, bow thrusters, and windlasses
• Poles are ganged via buses to achieve high amperage capacities
• Combines switching and circuit protection in a single device
• Magnetic-hydraulic delay trip mechanism allows for short start-up current surges without tripping the breaker
• “Trip-Free” - cannot be held closed after trip
• Maximum voltage: 65 VDC
• Note: Double and triple pole C-Series circuit breakers for AC and DC are not interchangeable

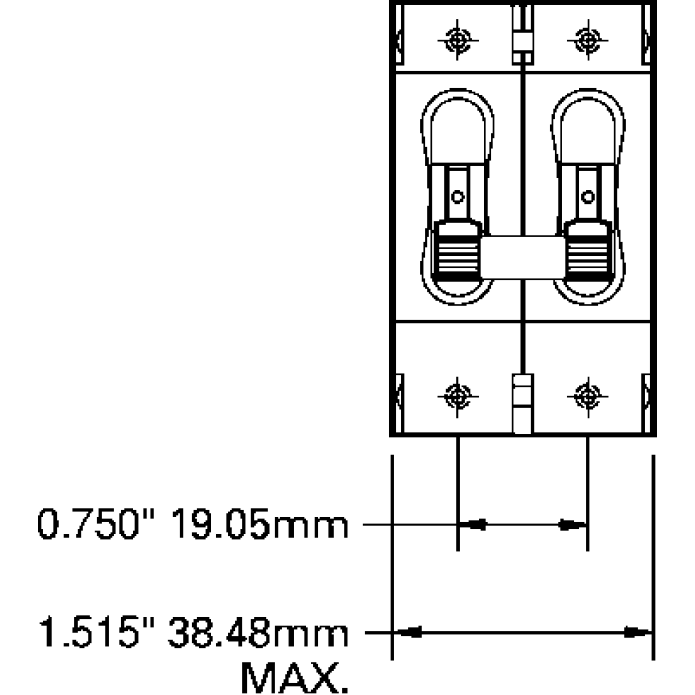

• C-Series DC double pole circuit breaker bodies measure 1.50"W x 2.50"H; terminal studs on bus are 5/16"
Specifications
MFG #:7267
| Amperage150A DC
Amps
150A DC
Color
White
Poles
2
