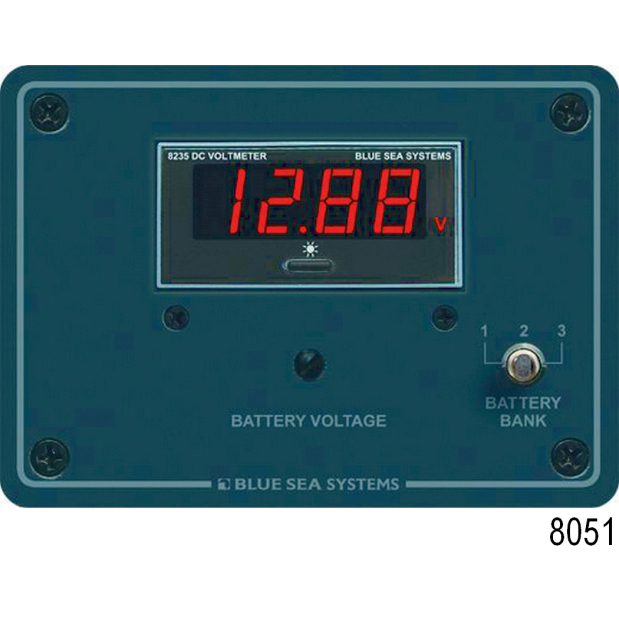

DC Digital Voltmeter Panel
Description
• 7-60 VDC voltmeter with 3 position switch for multiple battery banks
• Resolution: 0.01 volt DC
• Large 9/16" LED display draws very little power (1.0 watt max.)
• Standard size 2-3/4" meter face
• Simple connection: 1 wire to common ground; 1 power wire from positive terminal of a battery; 1 sensing wire from positive terminal of each battery to be monitored to the terminals on the toggle switch
• Splashproof front
• Panel material: 0.125" aluminum
Specifications
MFG #:8051
Dimensions
3-3/4"H x 5-1/4"W
Volts
60 Volts DC Maximum
Barcode
632085080518
