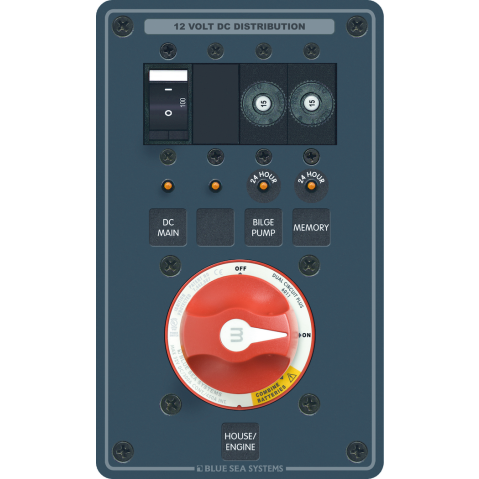

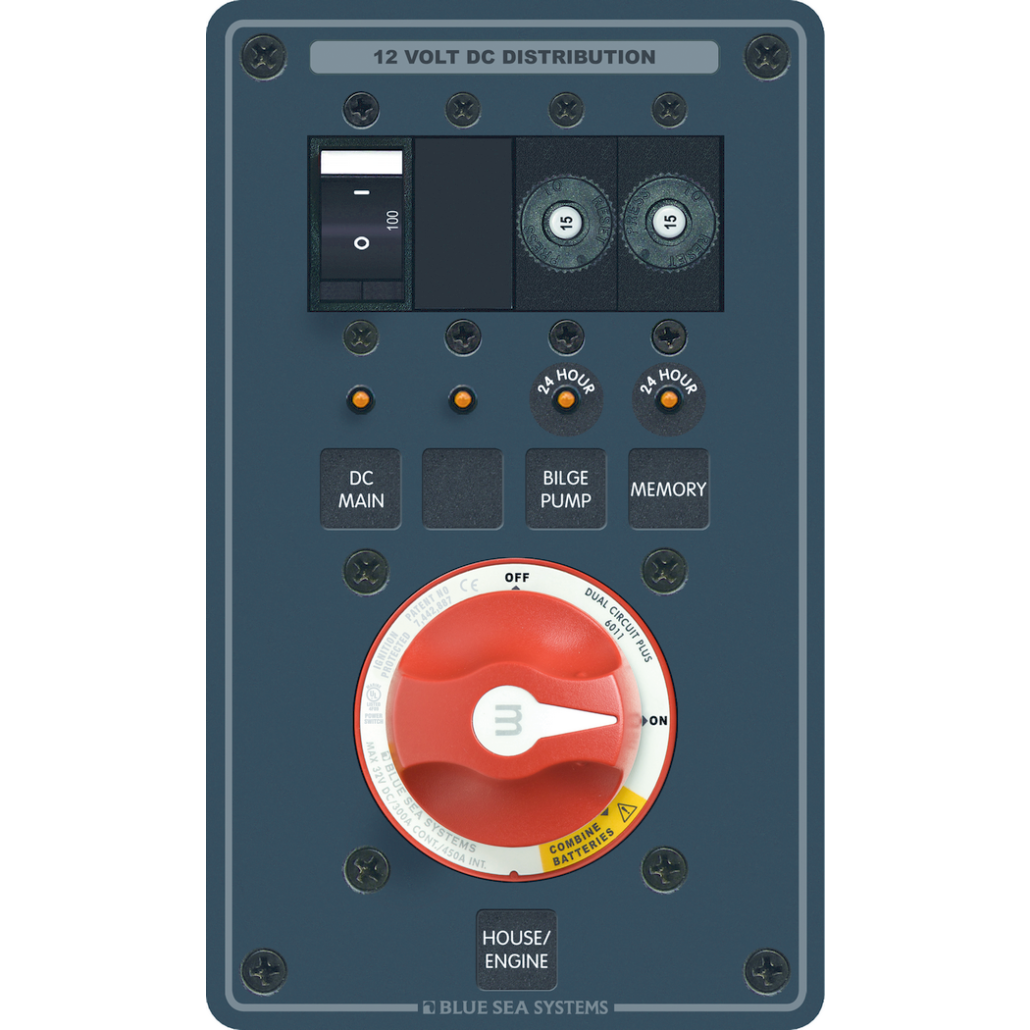

On/Off/Both 300A battery switch combined with DC main flat rocker circuit breaker controlling two 15 ampere 24-hour/"always on" DC circuits, plus one available DC circuit.
This DC main control panel isolates the Start circuit from the House circuit, allowing them to function independently.
The 6011 m-Series Dual Circuit Plus™ Battery Switch controls two separate (isolated) batteries that each have their own dedicated loads, switching them both on or off at the same time, with just a single switch.
This switch takes the place of two separate On/Off battery switches when you have a dedicated starting battery wired to your engine, and a separate dedicated house battery wired to your circuit breaker panel.
However, this switch also has a "Combine Batteries" position which connects both batteries to all loads for emergency situations where you need the power of both batteries for use with either load. Typically you would use this function for emergency engine starting if your starter battery is low.
The small format 6011 m-Series Battery Switch can handle continuous loads of up to 300 amperes.
The two unswitched, push-button reset 15A circuit breakers provide 24-hour circuit protection for "always On" devices that have their own on/off switches.
These circuits are ideal for bilge pumps and alarms that need to be "On" 24 hours a day, as well as digital clocks and other electronics with programmed memory or pre-sets which are sensitive to loss of electrical power.
A third circuit breaker position is left blank for owner customization, if desired.
• Traditional 5052-H32 aluminum alloy metal panel
• Incorporates On/Off/Both m-Series small format battery switch (#6011)
• Designed for single engine configurations
• Protects electronics from sags and spikes caused by engine starting
• DC main (100A rocker) circuit protection (#7549), and two 15 amp push-button breakers (#7056) installed; 1 empty position
• Use with 12 or 24V DC systems
• Includes Waterproof Square Label Set - 30 labels (#4218)
• "On" indicating LEDs
• Backlit circuit labels
• Ignition protected - safe for installation aboard gasoline-powered boats
• Dimensions: 4.50"W x 7.50"H x 3.25"D

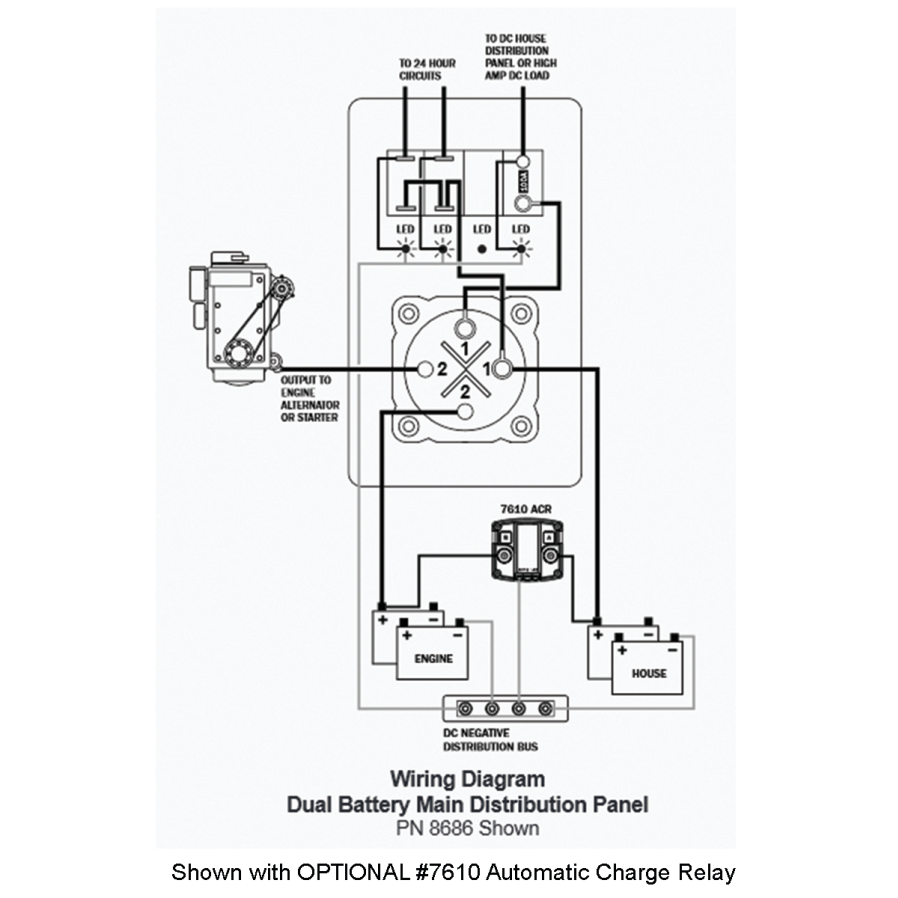

• Addition of an Automatic Charging Relay (#7610 or ML-Series #7622/7623) will automate charging of both battery banks
Click here for the Installation and User Guide for this product, and
here for a Cut-Out Template for mounting the panel.
