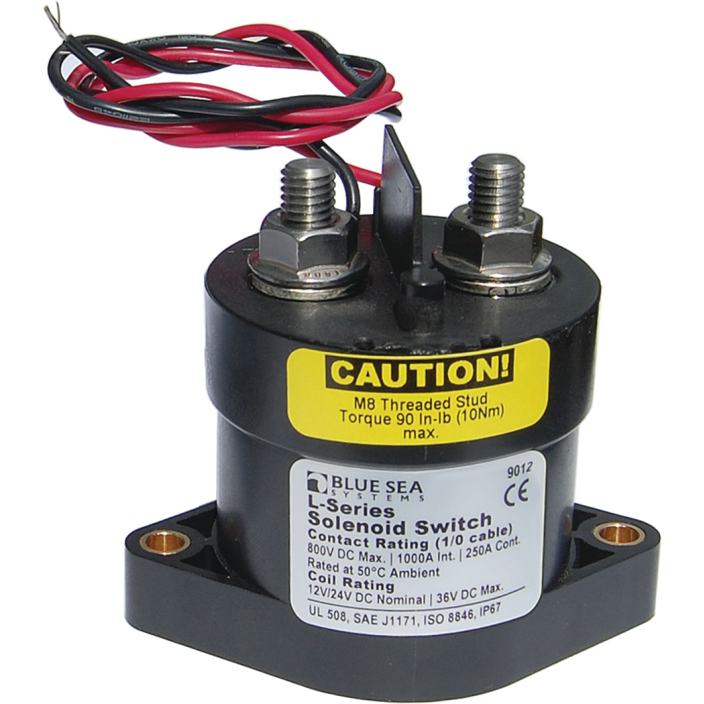

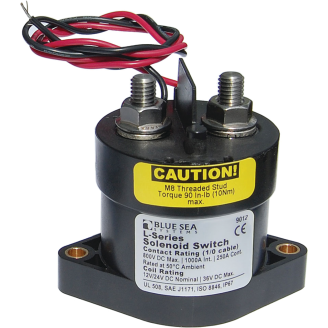

L-Series Electronic Solenoid Switch

High amperage electronic solenoid switches allow heavy cable runs to be shortened by eliminating the need to route cables for convenient operator access during manual switching operations. Shortened cable runs save labor and material costs, reduce weight, and deliver higher circuit voltages. Using a solenoid in an engine starting circuit or as a battery switch in a DC distribution circuit, allows the operator to activate the circuit from a remote location.

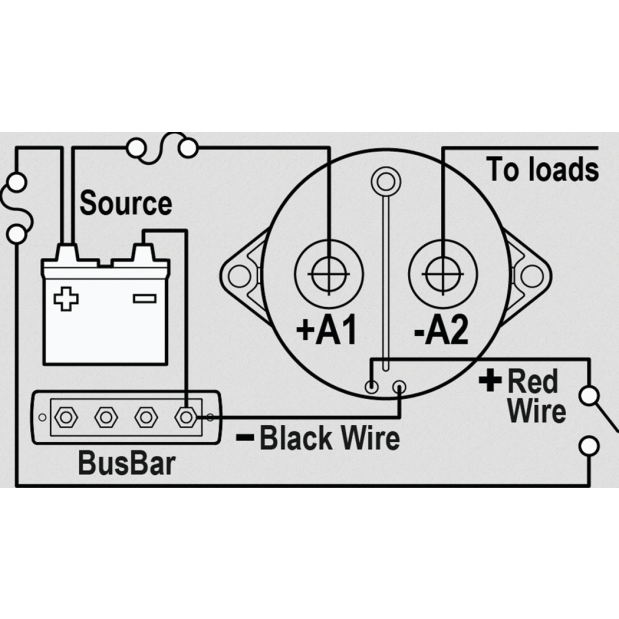

• Activated by an on-off switch mounted anywhere
• Functions as a remote battery switch or engine starting switch
• Can be used as a manual battery paralleling switch
• Contacts hermetically sealed
• Vaporproof and ignition protected
• Pulse circuit requires very low current draw when contact is closed
• UL recognized
• Meets SAE J1171 - external ignition protection requirements
• CE marked for EC applications
• Input voltage: 9 to 36 volts DC maximum
• Rated to 60 volts DC
• Inrush rating (0.25 sec; 10 repeats): 2,000 amps DC
• Cranking rating (10 sec; 10 repeats): 500 amps DC
• Continuous rating: 250 amps DC
