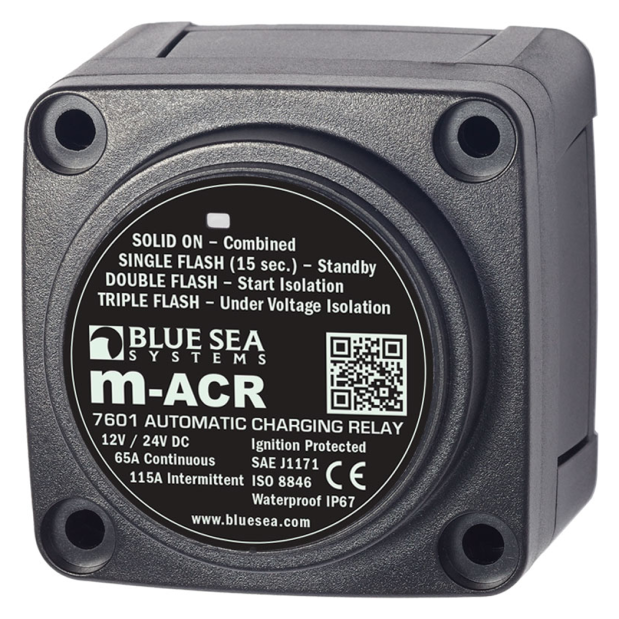

m-Series Automatic Charging Relay - 12/24V DC, 65A Maximum

The Mini Automatic Charging Relay (M-ACR) is designed to manage the charging current from alternators up to 65 Amps found on most outboards and many inboard engines to 2 battery banks.

Start Isolation (SI) protects sensitive digital electronics with stored memory settings by temporarily isolating house loads from the engine starting circuit during engine cranking, protecting electronics from voltage sags and spikes.

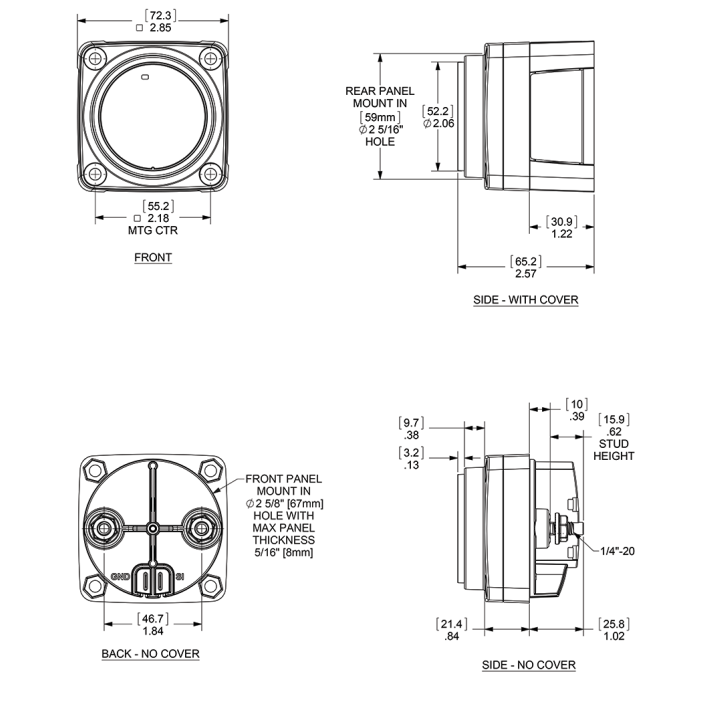

The compact design allows for three mounting styles: surface, rear, or panel mount. The M-ACR is also available as a module in a Custom 360 Panel.

Features —
• Senses charging on two battery banks
• Pull off and snap on insulating cover
• LED indicates ACR status
• 1/4" x 0.032" male quick connect terminal for ground
• 7/16" (11 mm) stud length to accept multiple cable terminals
• Waterproof – rated IP67 for temporary immersion
• CE marked

Click here for the installation manual and technical data about this product.
