- Monitors up to 4 bilge pumps
- Adjustable alarm parameters
- Auto-dimming display
Description

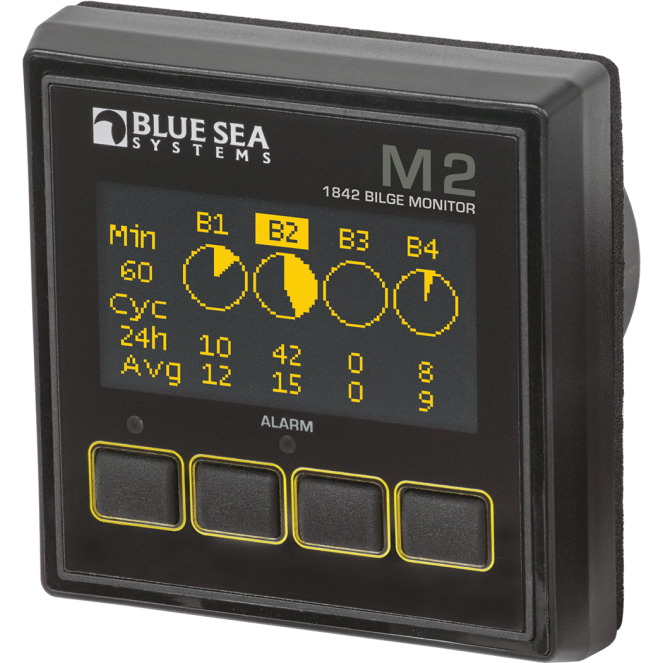

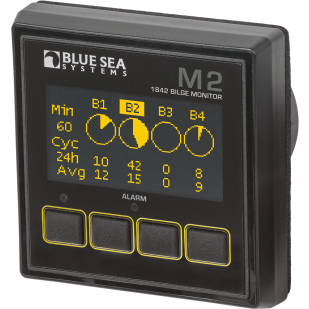

The M2 Organic LED Digital Monitor measures the On/Off function of up to four separate bilge pumps and incorporates adjustable alarm parameters and an auto-dimming display.
Monitors bilge pump "On" time in the last 60 minutes, number of bilge pump cycles in the last 24 hours, average bilge pump cycles per typical 24 hour period, as well as a cumulative cycle counter. Compatible with external bilge pump float switches, or automatic bilge switches which have a 12 volt (status) output.
The M2 Monitor contains an internal MOSFET relay which can drive an external DC load such as an LED visual signal, buzzer or horn alarm up to 0.5 amps.
If you need to switch more than 0.5 A, you can use an external relay such as PN 7713 (12V), or PN 7717 (24V).
Auto-dimming, bright Organic LED display is easy to read in daylight
• 80 dB alarm
• Isolated 500 mA MOSFET relay
• Includes provisions for surface or flush mounting
Monitor face is rated at IP66 - protected against heavy spray or rain when properly installed
• Requires 2-1/8" mounting hole
Click here to read the Installation and Programming Instructions for this product.
