500A ML-Series Solenoid Remote On/Off Battery Switch - with Manual Control
warning
Share THIS PAGE:

Manual Control

#7700 & 7702 • Magnetic Latching Solenoid Provides High-Current Remote Battery Switching

Availability: Make a selection

Sku# Make a selection
Item ID Make a selection
Mfg# Make a selection
SELECT PRODUCT OPTIONS
Please choose product option(s).
Overview
No more crawling into the engine compartment, lifting floorboards, or piling up cushions to change over your battery switch. You can use this convenient solenoid battery switch to connect or disconnect your battery banks remotely from the cockpit or control panel, without having to access the actual battery switch.

Unlike typical solenoids which are only activated when a current is present, the magnetic latching feature of these solenoid battery switches means that the battery switch will remain in either state (contacts open or closed) until changed by the operator.

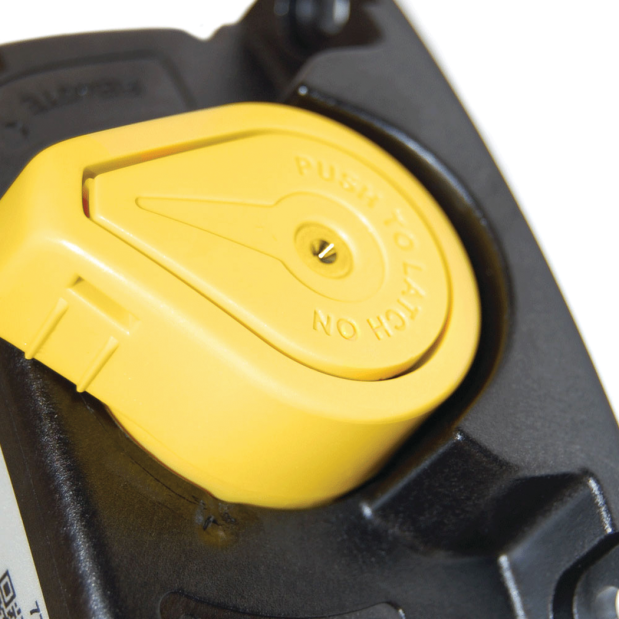

These models of the 500A ML-RBS Remote Battery Switch feature a manual control knob right on the solenoid, in addition to the remote control feature. The manual version provides an added level of safety by allowing control of the solenoid with or without electric power.
If a local manual control is not required in your installation, you can use the ML Remote Solenoid Battery Switch version #7701/7703) - see Related Products, below.

For use with inboard gasoline or diesel engines, this switch reduces long runs of heavy battery cables because it activates with low currents through small wires. No current draw, except to actually change the configuration of the switch.

• Battery switching from a convenient location
• No continuous current draw
• Multi-station control capability
• Manual control capability allows control with or without power
• Manual control knob can be "locked" in the OFF position for battery maintenance and to prevent remote operation
• Silver alloy contacts provide high reliability in high amperage switching
• 3/8" tin-plated copper studs can accept multiple 4/0 AWG cable max.
• SAE J1171 ignition protected; UL rated; CE marked
• Label recesses for circuit identification
• IP66 water resistance (dust tight and able to withstand water from heavy seas)
• CE marked
• Note: specs in Table are based on using 4/0 cables

Retail packaged units include a momentary (On)/Off/(On) SPDT Remote Control Contura Switch (#2145) and have bare wire leads
Bulk packaged units do not come with a switch and have a cable terminating in a Deutsch DTM Cable Terminal.


Click here for an overview of the ML Series of Magnetic Latching remote battery switches, and here for more detailed information including instructions for use as well as wiring diagrams for the ML-RBS Remote Control Battery Switch.

PRODUCT DETAILS TABLE WITH OPTIONS AND PRICING
Click on See detailed table of all productsto see specifications of product options.
Add To Cart
Sku#Item IDBlue Sea Systems#AvailabilityDescriptionUOMYour PriceQTY

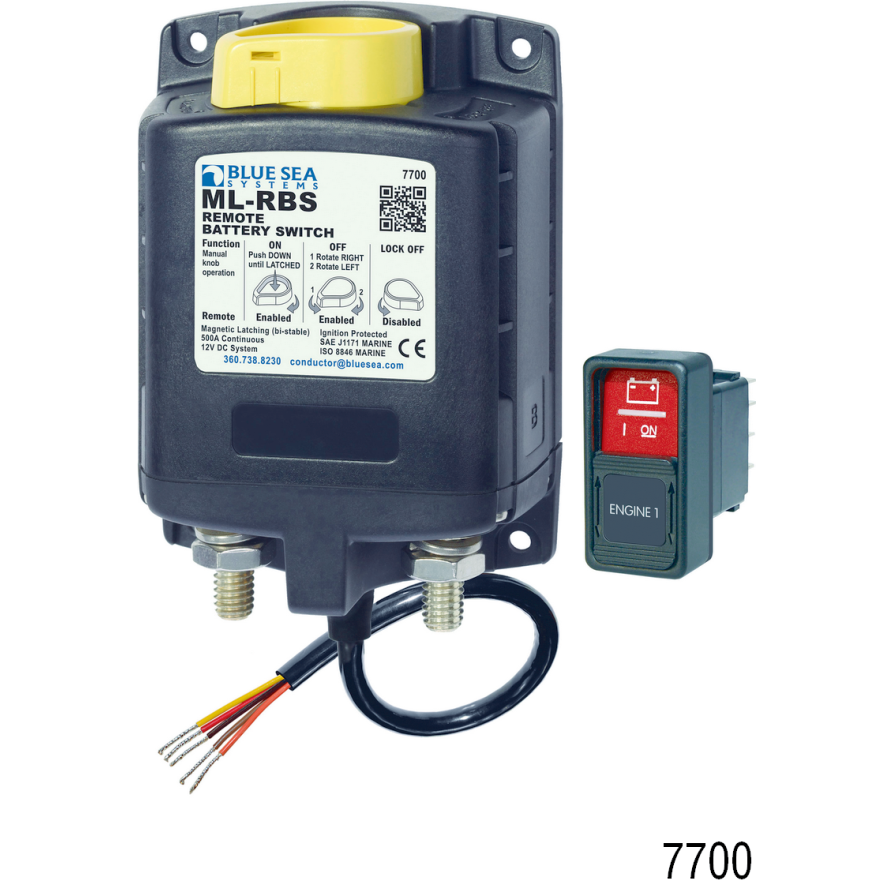

204885B/S 7700 7700Loading...500A ML-Series Solenoid Switch w/Manual Control - 12V DCLoading...
394558B/S 7702100B 7702100BLoading...500A ML-Series Solenoid Switch w/Manual Control - 24V DC, Bulk - No Switch, Deutsch DTMLoading...
427162B/S 7700100B 7700100BLoading...500A ML-Series Solenoid Switch w/Manual Control - 12V DC, Bulk - No Switch, Deutsch DTMLoading...

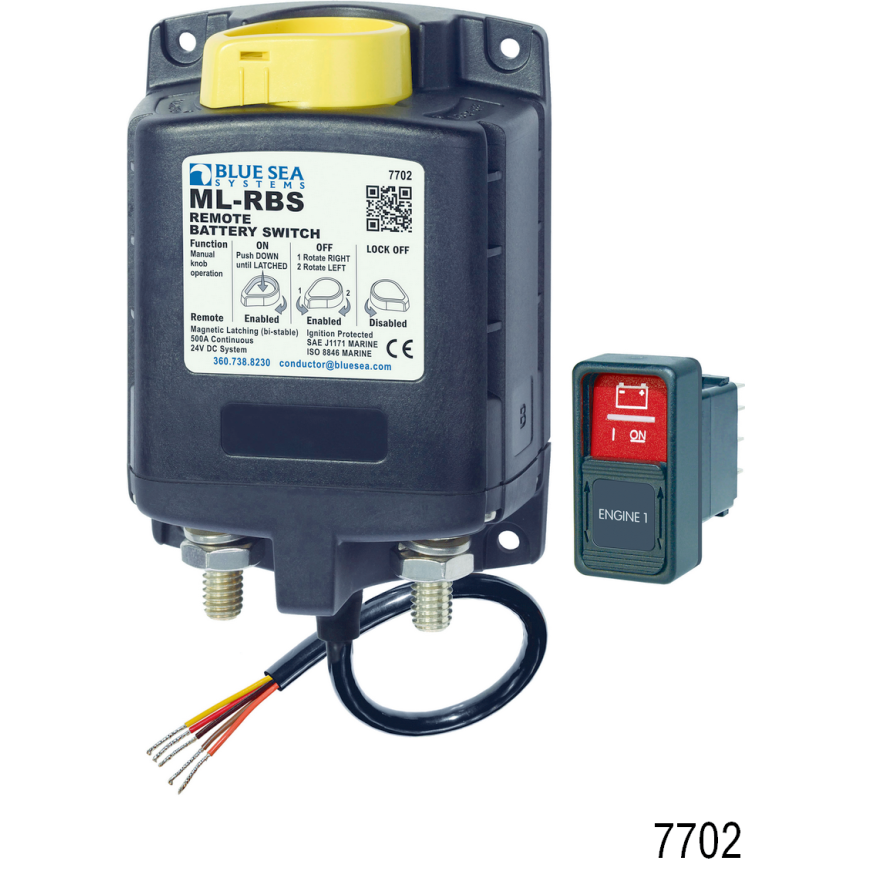

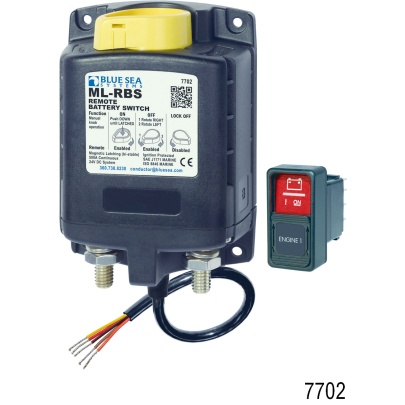

204887B/S 7702 7702Loading...500A ML-Series Solenoid Switch w/Manual Control - 24V DCLoading...
