P12 Battery Charger LED Remote Panel

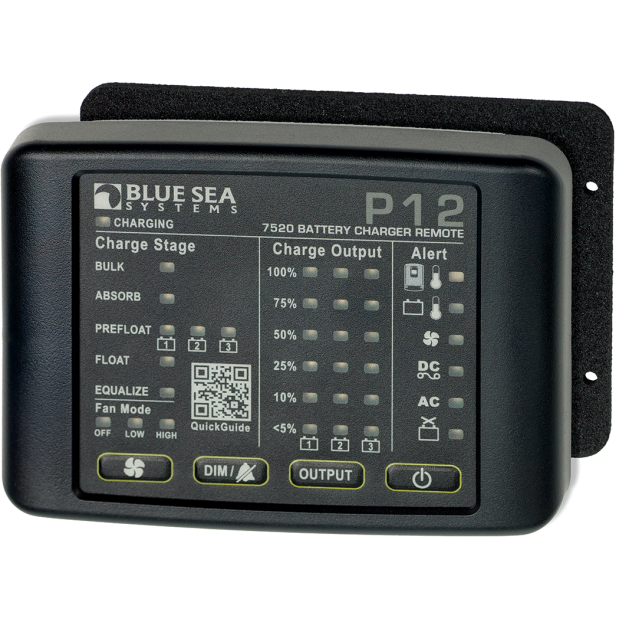

This panel is a remote control for P12 Battery chargers. It indicates the battery charger state, provides alerts, and controls basic functions.

LED Indicators
• Charging - Quick check for green light confirms charging is in progress
• Charge Stage - Displays charging stage
• Equalize - Indicates if the charger is currently in Equalization mode
• Fan Mode - Indicates charger's internal fan mode
• Charge Output - Displays the percentage of output current for each battery. Will also indicate maximum output setting when maximum output is adjusted to accommodate for AC source limitations
• Alert - Icon LEDs provide warnings and alert status for quick diagnosis

Four Control Buttons
• Fan - User adjustable settings (Off, Low, or High)
• Dim/Alarm - Provides adjustment to brightness of LEDs on display as well as a Silence function for alarms
• Output - User adjustable charger output when AC source limitations exist that require lowering the AC current draw (e.g. when using a genset for AC power)
• Standby - Puts P12 charger in standby mode

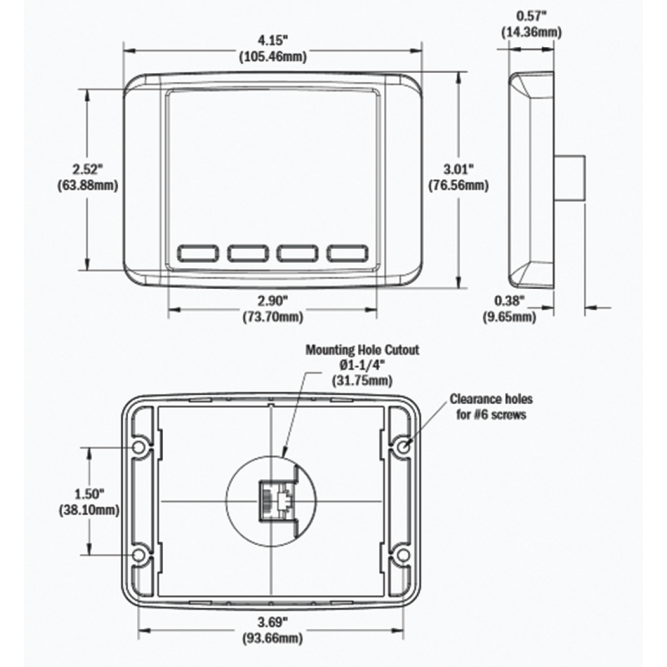

Dimensions - 3.01"H x 4.15"W x 0.95"D
Meets IP67 specifications - dust tight, can withstand temporary immersion

What's in the box —
Panel assembly, face plate, mounting gasket, fasteners, dielectric grease, 25 ft Cat5e connection cable, instructions.

Click hereto see the Instruction Manual for this product.
