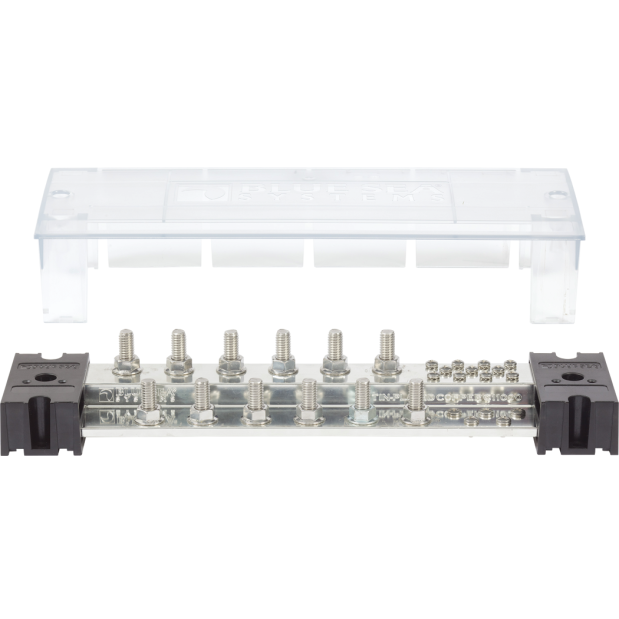

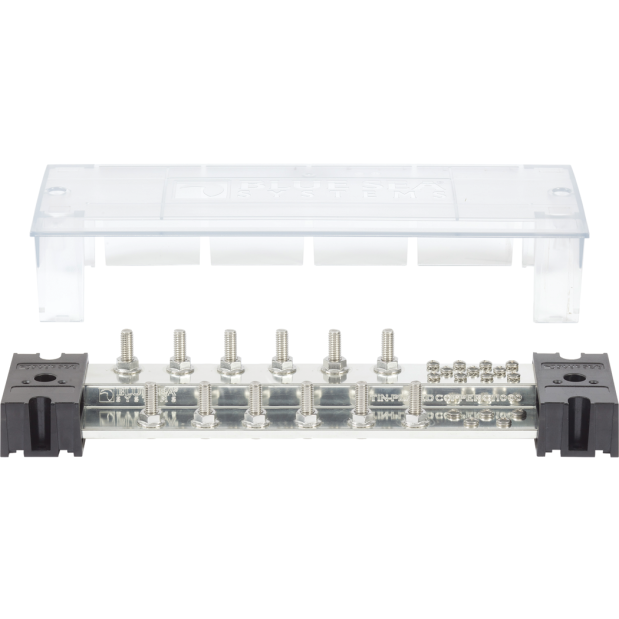

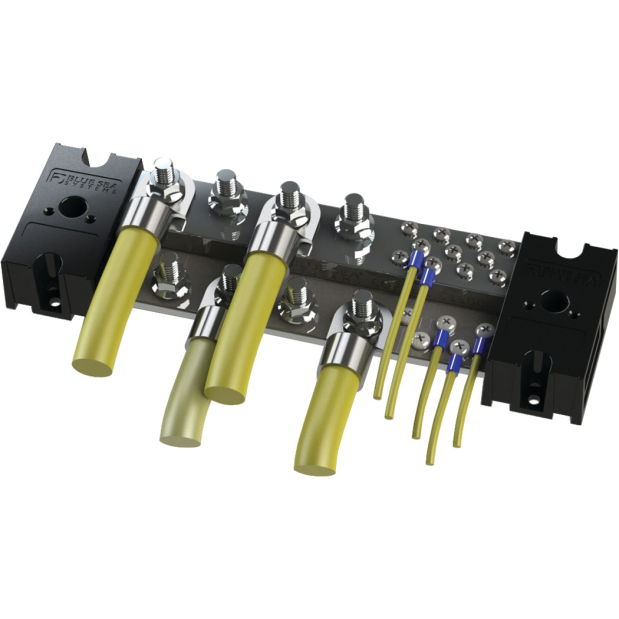

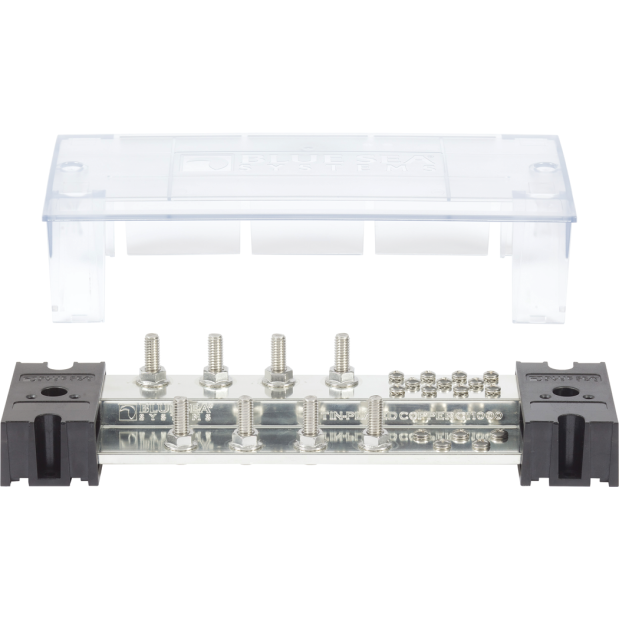

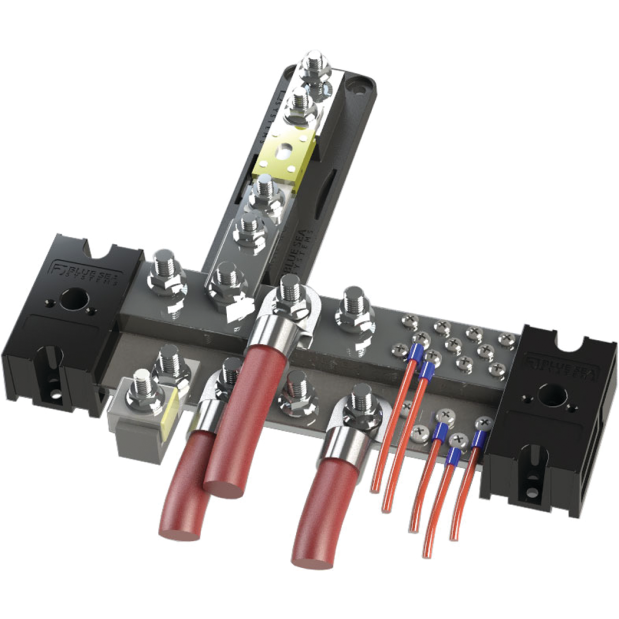

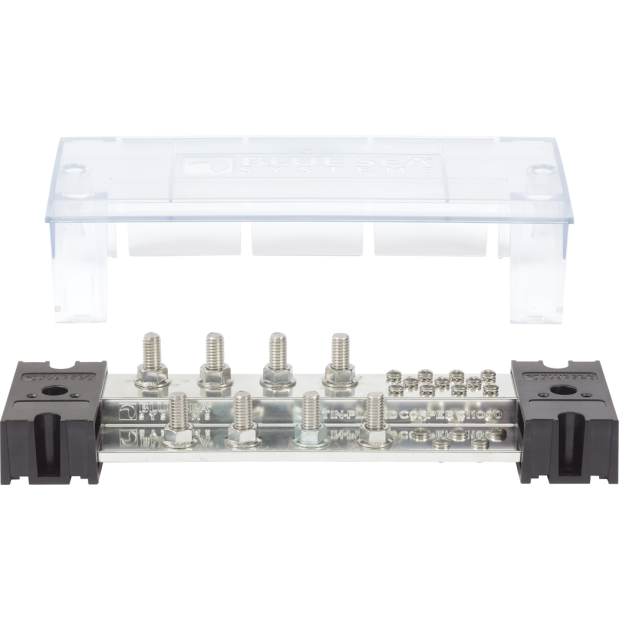

PowerBar 1000 Terminal Studs

1,000 Amp Busbar with Various Size Studs and Screws to Connect Conductors and Fuse Blocks

Availability: Make a selection

Sku# Make a selection
Item ID Make a selection
Mfg# Make a selection
SELECT PRODUCT OPTIONS
Please choose product option(s).
Overview
Complex wiring systems require a single point to consolidate large and small conductors. The PowerBar 1000 offers a 1,000 Amp busbar with various size studs and screws to connect conductors and fuse blocks.
• 1,000 Amp busbar for large complex wiring systems
• Tin plated pure electrical copper for maximum conductivity
• Stepped bus design offers two elevations for conductors which doubles
• the density of the wire loom compared to traditional bus bars
• Busbar and fuse block elevations match common fuse blocks allowing for multiple fuse block attachment, eliminating the need for connecting cables
• One-piece serrated flange nuts ensure correct and secure connections
• Stainless steel 8-32 screws with captive lock washers for securing smaller gauge wires
• Busbar may be cut to a shorter length to accommodate constricted spaces
• Bi-directional busbar end caps allow the ganging of additional busbars
• Snap on insulating cover meets ABYC and USCG requirements and includes label recess

PRODUCT DETAILS TABLE WITH OPTIONS AND PRICING
Click on See detailed table of all productsto see specifications of product options.
Add To Cart
Sku#Item IDBlue Sea Systems#AvailabilityDescriptionUOMYour PriceQTY
441903B/S 1992 1992Loading...PowerBar 1000 - 8 x 5/16" Terminal StudsLoading...
441901B/S 1990 1990Loading...PowerBar 1000 - 8 x 3/8" Terminal StudsLoading...
441904B/S 1993 1993Loading...PowerBar 1000 - 12 x 5/16" Terminal StudsLoading...
441902B/S 1991 1991Loading...PowerBar 1000 - 12 x 3/8" Terminal StudsLoading...
