Description
• Insulating cover satisfys ABYC/USCG requirements
• For use on systems up to 32 volts DC

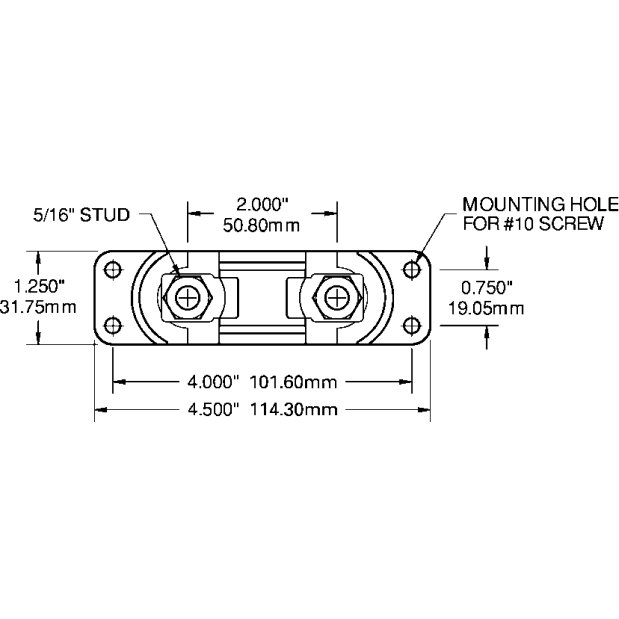

• 5/16" stud terminals accept wire ring terminals up to 2/0 AWG
• Base material: black thermoplastic
• 100 to 300 amp MEGA fuses are available; see Related Products, below
Specifications
MFG #:5001
Max. Amp.
300A
Max. VDC
48 VDC
Barcodes
5001
50632085050011
632085050016
50632085050011
632085050016
