Blue Sea Isolator Surface Mount System Panel Enclosures

Glass-Filled Polycarbonate Mounting Box with Clear Cover

Availability: Make a selection

Sku# Make a selection
Item ID Make a selection
Mfg# Make a selection
SELECT PRODUCT OPTIONS
Please choose product option(s).
Overview

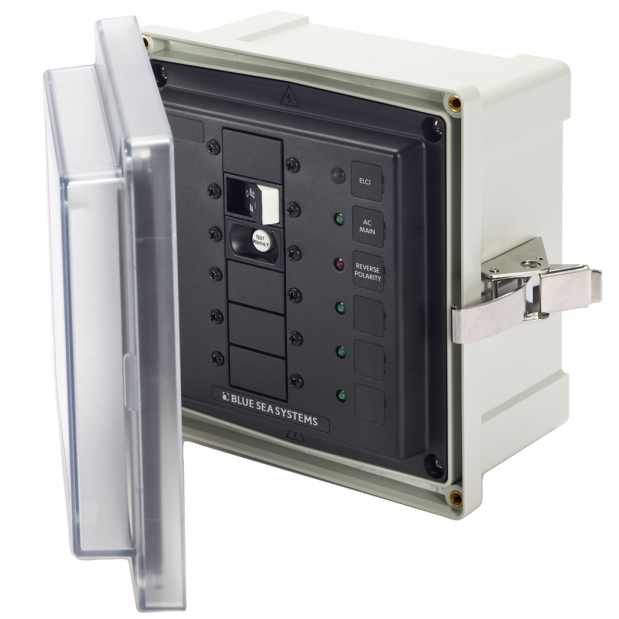

Panel enclosure for ELCI Main circuit breakers and other large frame devices. Meets ABYC E-11 when used with an ELCI Main circuit breaker and mounted within 10 feet of the shore power inlet

• Blank apertures for custom breaker loading
• Glass filled polycarbonate base
• Clear cover allows easy view of circuit breaker status
• Overlapping cover for strength and increased gasket protection
• Oversized, formed in place seamless PUR gasket
• Easily removable stainless steel hinge pin for unobstructed installation
• Stainless steel latch secures cover without penetrating the enclosure
• Blank circuit positions accommodate Carling Technologies™ A and C Series Flat Rocker and ELCI Main circuit breakers
• Stainless steel mounting hardware included
• Includes waterproof glands
• Green LEDs for backlighting and ON indication

PRODUCT DETAILS TABLE WITH OPTIONS AND PRICING
Click on See detailed table of all productsto see specifications of product options.
Add To Cart
Sku#Item IDBlue Sea Systems#AvailabilityDescriptionUOMYour PriceQTY

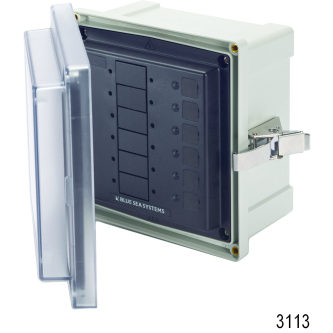

385611B/S 3113 3113Loading...Surface Mount System Panel Enclosures, 6 Circuit BlankLoading...

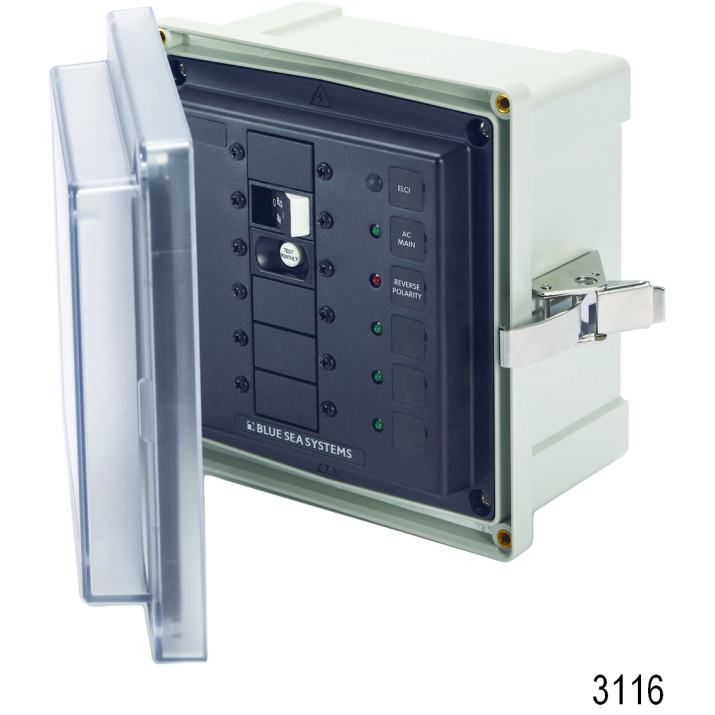

383032B/S 3116 3116Loading...Surface Mount System Panel Enclosures, 120V AC / 30A ELCI Main - 3 blank circuit positionsLoading...

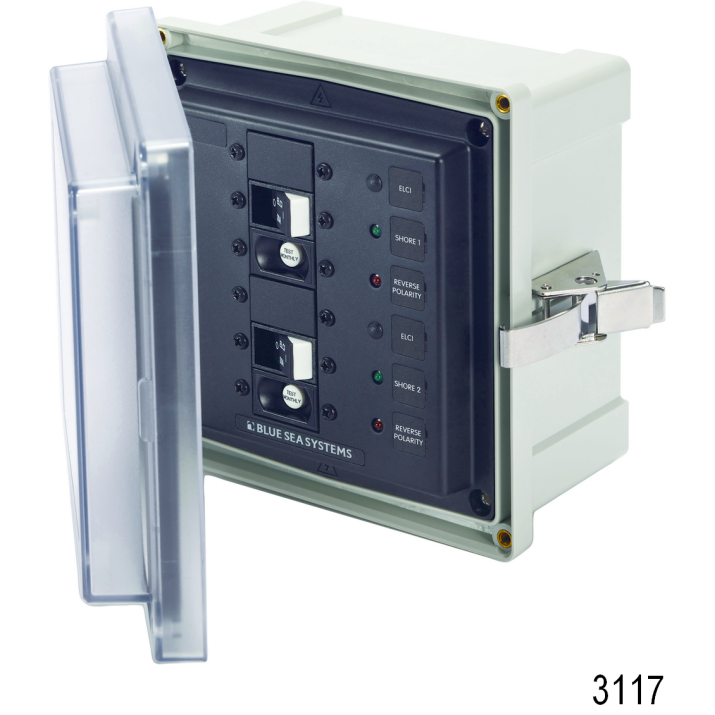

393720B/S 3117 3117Loading...Surface Mount System Panel Enclosures, 2 x 120V AC / 30A ELCI MainLoading...
383817B/S 3118 3118Loading...Surface Mount System Panel Enclosures, 120V AC / 50A ELCI Main - 2 blank circuit positionsLoading...
383129B/S 3119 3119Loading...Surface Mount System Panel Enclosures, 120/240V AC / 50A ELCI Main - 1 blank circuit positionLoading...

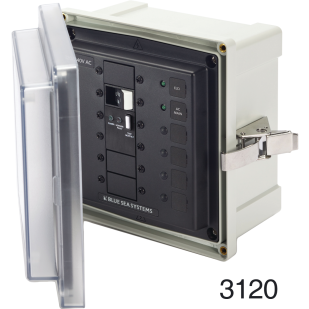

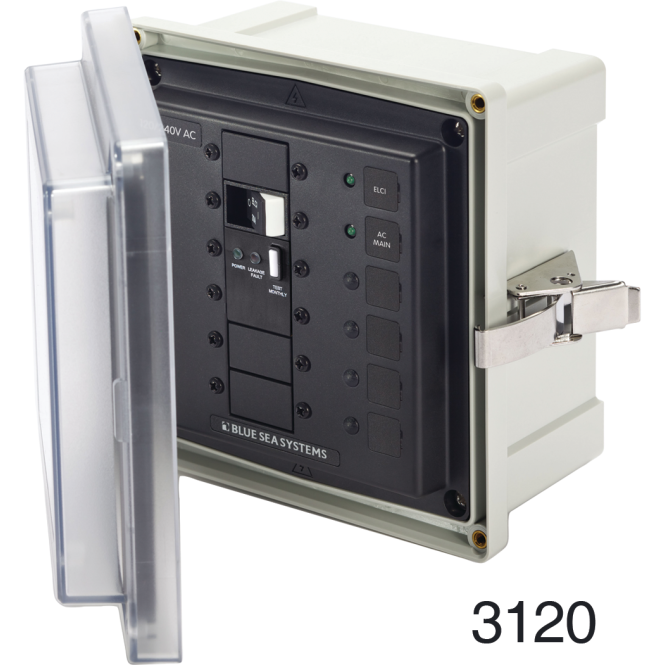

433281B/S 3120 3120Loading...Surface Mount System Panel Enclosures, 240V AC / 50A ELCI Main - For Isolation TransformerLoading...
