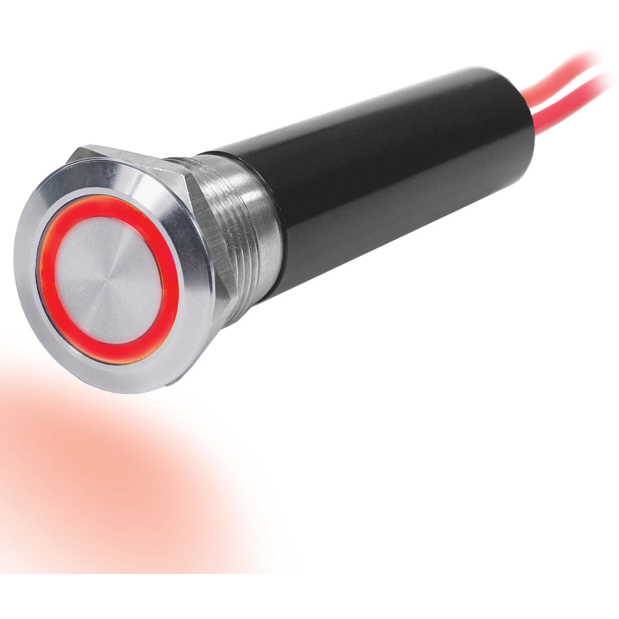

Switch Button SS 20A OFF-ON, Red Light

Switch Button SS 20A OFF-ON

• Specifications:
  • 20A Continuous: Designed for reliable and high-current applications, ensuring efficient electrical performance.
  • Single Pole Single Throw: Features a single set of contacts, providing a simple ON-OFF functionality.

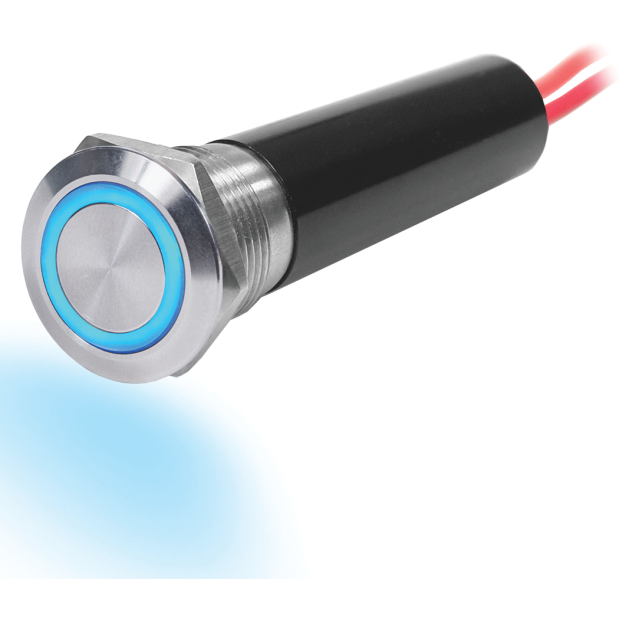

  • Available Colors: Comes in two distinct colors – Blue and Red, allowing customization to match different aesthetics and preferences.
  • Momentary and Non-Momentary Options: Available in both momentary and non-momentary configurations, catering to various user requirements.
• Connections:
  • 16 AWG Pigtail: Equipped with a 16-gauge pigtail for positive and load connections, ensuring secure and stable electrical connections.
  • .110-Inch Quick Connect: Features a .110-inch quick connect terminal for LED ground, facilitating easy installation and setup.

The Switch Button SS 20A OFF-ON (Model Number: 4190) offers reliable and versatile functionality for various electrical applications. With a 20A continuous rating, it provides robust performance, making it suitable for high-current requirements. Its single pole single throw design simplifies operation, offering a straightforward ON-OFF control.

This switch button is available in two eye-catching colors – Blue and Red, allowing users to choose the one that best suits their preferences or specific application needs. Additionally, it offers flexibility with both momentary and non-momentary options, accommodating diverse user requirements.

For convenient and secure connections, this switch button is equipped with a 16 AWG pigtail, ensuring reliable positive and load connections. The .110-inch quick connect terminal for LED ground further simplifies the installation process, making it user-friendly and efficient.

Whether you need a momentary switch for quick operations or a non-momentary switch for stable and continuous control, the Switch Button SS 20A OFF-ON delivers reliable performance, ease of use, and customization options to meet your specific needs.
