WeatherDeck Water Resistant Switch
WeatherDeck Water Resistant Switch/Thermal Breaker Panel, 4 Circuits Gray
- For flybridge or open cockpits
- Backlit labels
- UV stabil & weather resistant
Description
• Rating per circuit: 15 amps@12VDC, 9 amps@24VDC
• Switch type: ON/OFF toggle
• Switch rating: 15 amps max
• Circuit breaker type: push button, thermal trip, manual reset only
• Circuit Breaker Rating: 15 amps installed
• Constructed from corrosion resistant materials
• Label backlighting allows switching and dimming
• Compatible with all Blue Sea Systems Digital Dimmers
• UV stabilized and weather resistant faceplate
• Rated IP67 - “Temporary Immersion”
• Rugged UV stabilized waterproof boots protect switches and circuit breakers
• Each panel can be mounted in four different orientations
• Includes 4215 - 30 label set
• Backlight current: 10mA per circuit
Specifications
50632085043747
4374
This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm.
www.P65Warnings.ca.govProduct Options
| Selected | SKU # | MFG # | Availability | Type | Price | Quantity | |
|---|---|---|---|---|---|---|---|

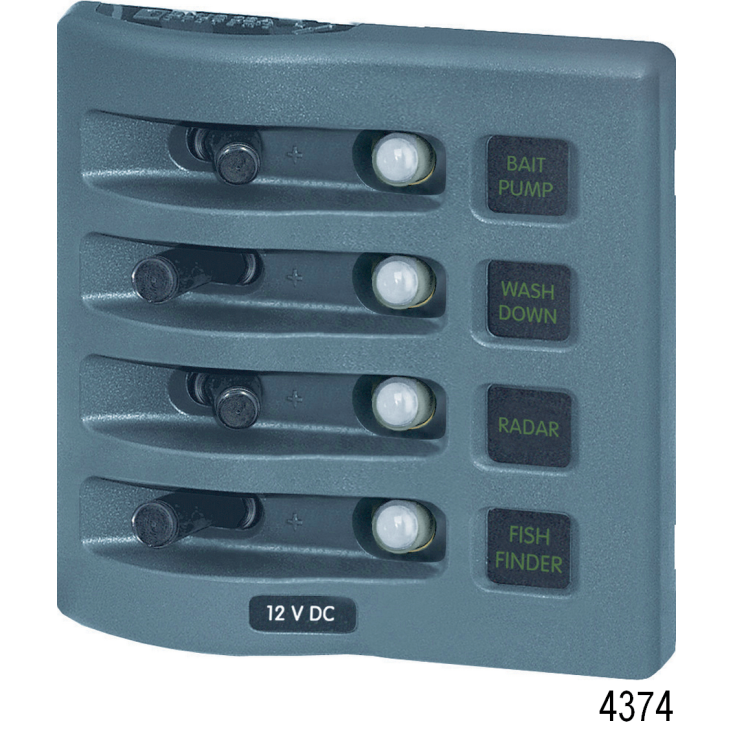

| SKU #: 174070 | MFG #: 4374 | 2 In Stock Ships immediately | 4 Circuits Gray | $120.27 EACH | |||

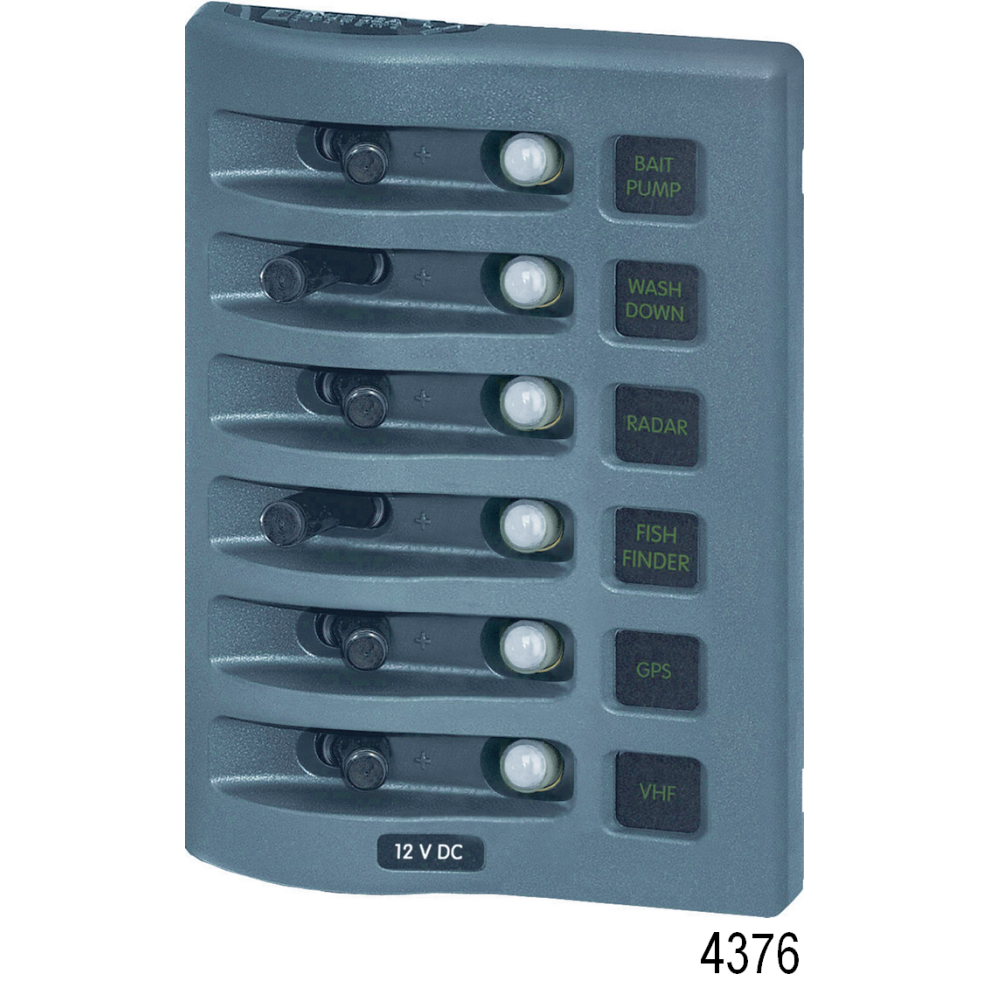

| SKU #: 174071 | MFG #: 4376 | 14 In Stock Ships immediately | 6 Circuits Gray | $148.91 EACH | |||

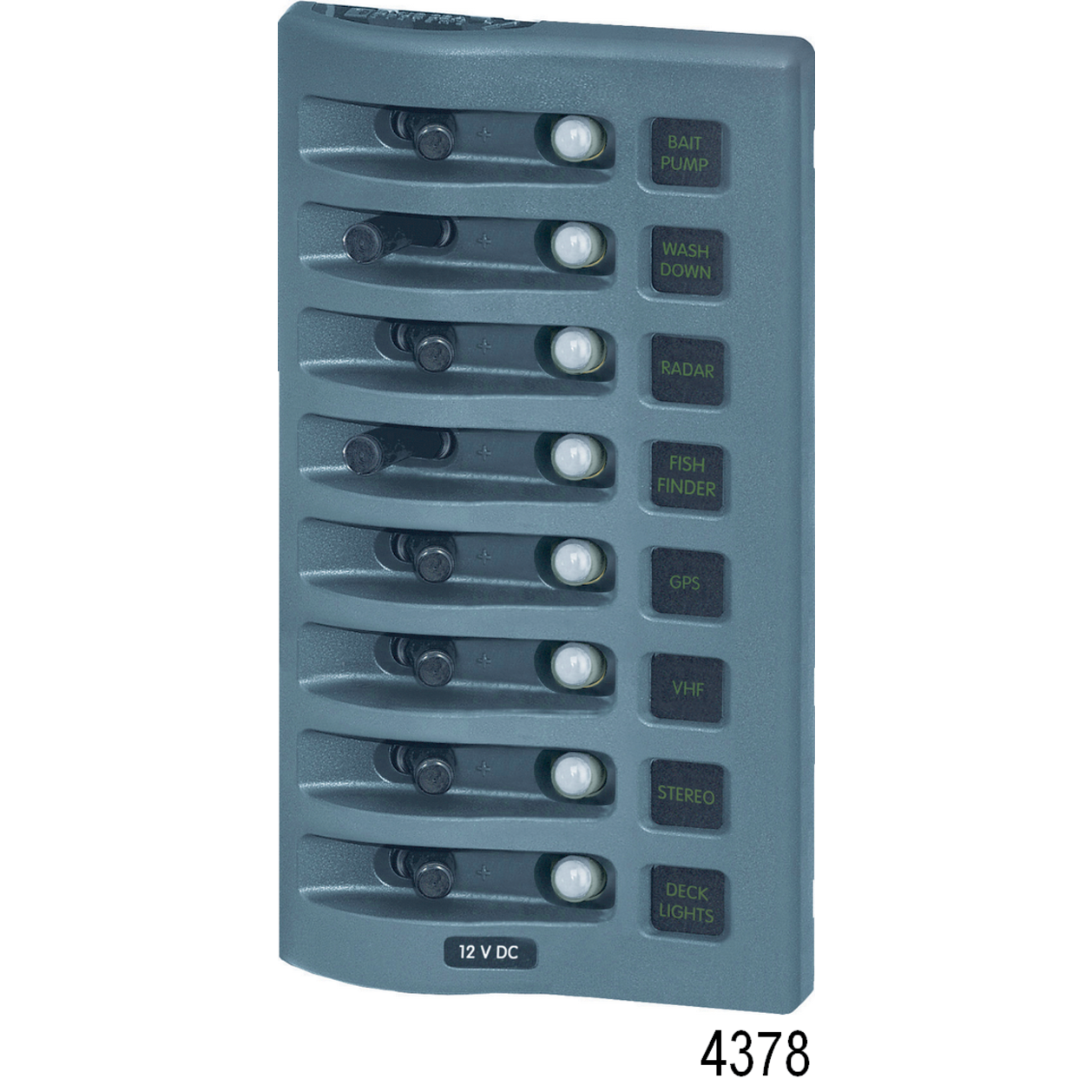

| SKU #: 207740 | MFG #: 4378 | 13 In Stock Ships immediately | 8 Circuits Gray | $207.00 EACH |
