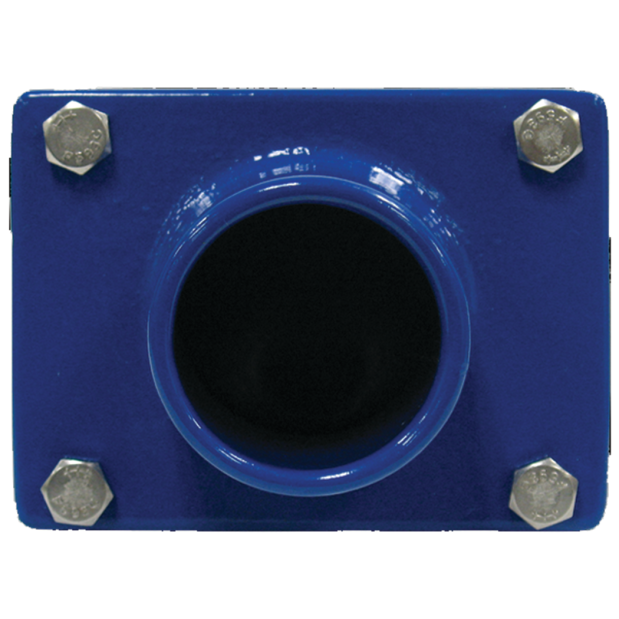

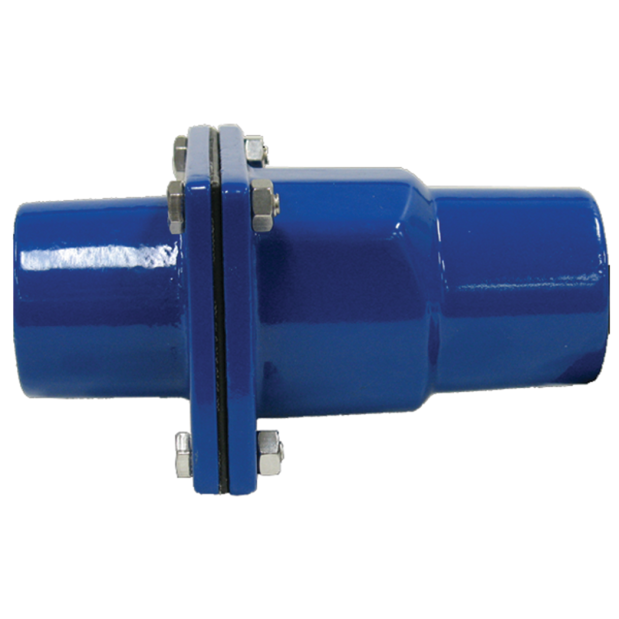

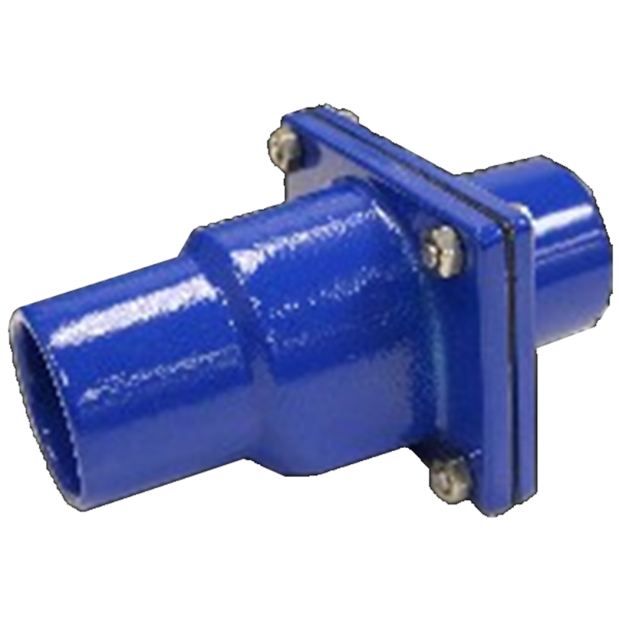

Also called "Model 76" Check Valve. Use this check valve to keep your pump primed, increase pump lift or prevent backflow.
Although set up as an inline check valve, this valve can be installed, as a foot valve, at the business end of a bilge pump hose to help maintain the priming water between strokes. The longer the suction hose, the more important having a foot valve becomes.
Use this valve with Guzzler 2600 pumps — especially for lifts above 12 ft.
The CV-2600A is available in a wide variety of end sizes and styles by special order; please inquire at 800-426-6930.
Flapper valves are standard, but duckbill and umbrella valves, for a more positive pressure seal, are also available by special order.
• Creates and maintains pump prime
• Use with Guzzler 2600 pumps - especially for high lifts
• Prevents fluid backflow
• Constructed of aluminum (available in bronze by special order)
• Buna N flapper valve with molded steel reinforcing plate
