Borg Warner Split Shaft Couplings
Borg Warner Split Shaft Couplings
Borg Warner Split Shaft Couplings, B/A 50500A1250
SKU: 134886 Item ID: B/A 50500A1250
- No Bore
Description
All things being equal, split couplings are easier to install and remove than solid couplings.
⢠Order a "No Bore" coupling for machining a custom shaft size
⢠"No Bore" split couplings come with a 3/4" to 1-1/4" pilot bore

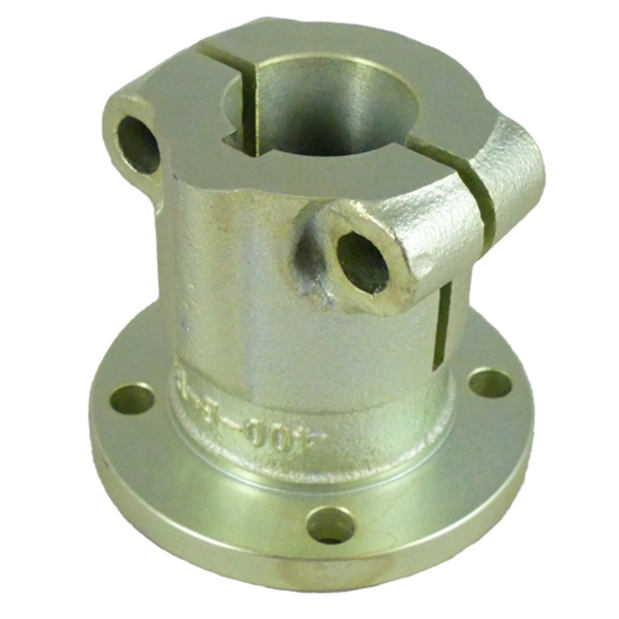

⢠Shown with a male (M Type) pilot
⢠In the table below, these are the codes for transmission types: A=Allison, B/W=Borg Warner, C=Capitol, H=Hurth, N=Newage, P=Paragon, TD=Twin Disc, VP=Volvo Penta, Y=Yanmar, ZF=ZF
⢠Shaft Range indicated is the available range for that model of coupling
⢠Note: in the table, the easiest way to locate the coupling you need is to start with the flange diameter, then shaft size and pilot, etc.
Specifications
MFG #:50500A1250
| CouplerB/A 50500A1250
Keyway
5/16"
Bolt Size
7/16"
Size
1-1/4"
Bolt Circle
4-1/4"
Type
B/W, H, N, VP, ZF
Pilot
2-1/2" x 3/32"M
Shaft Range
1" - 1-1/2"
Length
3-7/16"
# Bolts
4
Flange
5"
Warning
This item may be known to the State of California to cause cancer, birth defects, or other reproductive harm.
Barcodes
50500A1250
]C150500A1250
]C150500A1250
Product Options
| Selected | SKU # | MFG # | Availability | Coupler | Price | Quantity | |
|---|---|---|---|---|---|---|---|
| SKU #: 143882 | MFG #: 50400B1000 | Special Order Only | B/A 50400B1000 | $179.59 | |||
| SKU #: 143883 | MFG #: 50400B1250 | Special Order Only | B/A 50400B1250 | $179.59 | |||
| SKU #: 143884 | MFG #: 50400B1375 | Special Order Only | B/A 50400B1375 | $179.59 | |||
| SKU #: 159858 | MFG #: 50400B1500 | Special Order Only | B/A 50400B1500 | $198.29 | |||
| SKU #: 143904 | MFG #: 50400BNOBO | Special Order Only | B/A 50400BNOBO | $198.29 | |||
| SKU #: 143885 | MFG #: 50400C1250 | Special Order Only | B/A 50400C1250 | $120.39 | |||
| SKU #: 143892 | MFG #: 50401SNOBO | Special Order Only | B/A 50401SNOBO | $154.54 | |||
| SKU #: 95060 | MFG #: 50500A1000 | Special Order Only | B/A 50500A1000 | $193.84 | |||
| SKU #: 95061 | MFG #: 50500A1125 | Special Order Only | B/A 50500A1125 | $193.84 | |||
| SKU #: 134886 | MFG #: 50500A1250 | 1 Remaining In Stock Ships immediately | B/A 50500A1250 | $193.84 | |||
| SKU #: 124171 | MFG #: 50500A1375 | Special Order Only | B/A 50500A1375 | $193.84 | |||
| SKU #: 142818 | MFG #: 50500A1500 | 2 In Stock Ships immediately | B/A 50500A1500 | $193.84 | |||
| SKU #: 143895 | MFG #: 50500ANOBO | Special Order Only | B/A 50500ANOBO | $193.84 | |||
| SKU #: 124169 | MFG #: 50500C1500 | Special Order Only | B/A 50500C1500 | $218.14 | |||
| SKU #: 146448 | MFG #: 50500C1750 | 2 In Stock Ships immediately | B/A 50500C1750 | $218.14 | |||
| SKU #: 124170 | MFG #: 50500C2000 | Special Order Only | B/A 50500C2000 | $218.14 | |||
| SKU #: 143896 | MFG #: 50500CNOBO | Special Order Only | B/A 50500CNOBO | $240.87 |
