1-1/4IN BRZ STERN TUBE PACKING BOX
Stern Tube Packing Box
Share THIS PAGE:

Stern Tube Packing Box

Spud Nut Style Packing Box on Shaft Log

Availability: Make a selection

Sku# Make a selection
Item ID Make a selection
Mfg# Make a selection
SELECT PRODUCT OPTIONS
Please choose product option(s).
Overview
A packing box, or stuffing box, is a device that seals around the propeller shaft, preventing seawater from entering the boat. The shaft log, which is fiberglassed and/or drilled and bolted to the hull, is the actual opening through which the propeller or rudder shaft exits the vessel.
Unlike assemblies which have a connecting piece of hose, these Stern Tube Packing Boxes are rigid assemblies, and must be properly aligned at installation.

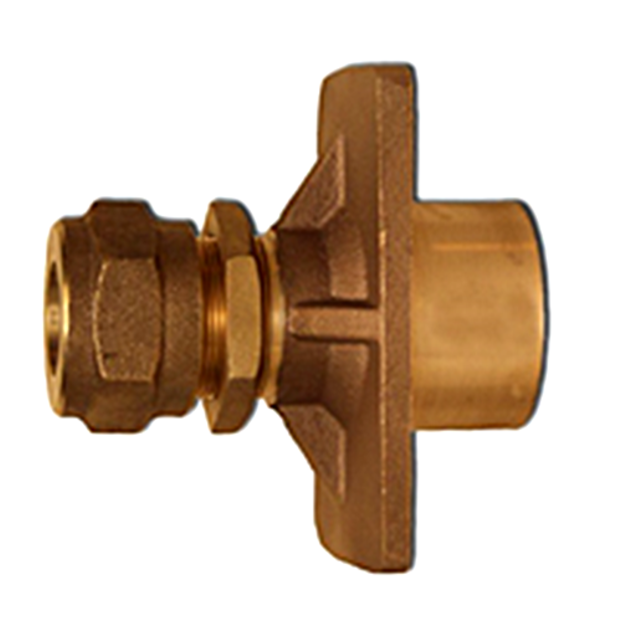

• Complete assembly includes: hex spud and hex locking nut on a rectangular base shaft log
• Finely machined cast bronze
• This particular shaft log housing is internally threaded on the outboard end to accept a section of bronze pipe which forms the stern tube, passing through the keel
• Complete range of shaft and hose sizes available; please inquire

PRODUCT DETAILS TABLE WITH OPTIONS AND PRICING
Click on See detailed table of all productsto see specifications of product options.
Add To Cart
Sku#Item IDBuck Algonquin#AvailabilityDescriptionUOMYour PriceQTY
86871B/A 00STPB125 00STPB125Loading...Stern Tube Packing Box, 1-1/4" Shaft (1/4" Flax) 4-5/8" LongLoading...
82200B/A 00STPB138 00STPB138Loading...Stern Tube Packing Box, 1-3/8" Shaft (5/16" Flax) 4-5/8" LongLoading...
128152B/A 00STPB150 00STPB150Loading...Stern Tube Packing Box, 1-1/2" Shaft (1/4" Flax) 4" LongLoading...
180219B/A 00STPB200 00STPB200Loading...Stern Tube Packing Box, 2" Shaft (3/8" Flax) 5-1/2" LongLoading...
92592B/A 00STPB250 00STPB250Loading...Stern Tube Packing Box, 2-1/2" Shaft (5/16" Flax) 5-15/16" LongLoading...
Add To Cart
