Description

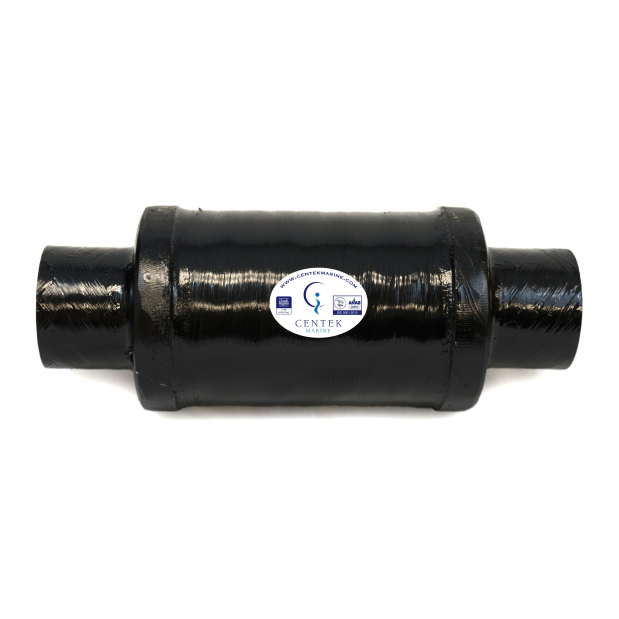

The MiniMax wet exhaust muffler was developed for V-drives and locations where available length is short, but larger diameter is possible. The design is based on the Vernatone family of inline mufflers. Due to the specialized short length and limited mixing of water and exhaust, sound attenuation is only fair, but still noticeable.
• Application: inboard power vessels
• Fuel type: gas or diesel
• Above waterline installation only
• Sound rating: fair
Specifications
MFG #:1050400

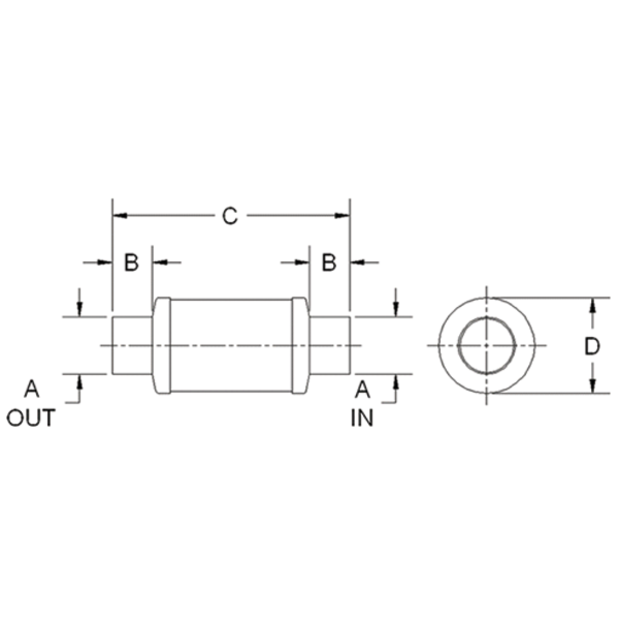

| Dimensions4" I/O, 8.38" Dia x 16.75"
| Max HP125 HP Diesel, 280 HP Gas
Dia.
8.38"
Inlet/Outlet
4"
Length
16.75"
Max. HP Diesel
125 HP
Max. HP Gas
280 HP
Barcode
808880140133
Product Options
| Selected | SKU # | MFG # | Availability | Dimensions | Max HP | Price | Quantity | |
|---|---|---|---|---|---|---|---|---|
| SKU #: 164340 | MFG #: 1050300 | Special Order Only | 3" I/O, 6.38" Dia x 13.75" | 60 HP Diesel, 160 HP Gas | $422.75 | |||
| SKU #: 160602 | MFG #: 1050350 | Special Order Only | 3.50" I/O, 6.38" Dia x 14.75" | 85 HP Diesel, 220 HP Gas | $439.52 | |||
| SKU #: 136660 | MFG #: 1050400 | 1 Remaining In Stock Ships immediately | 4" I/O, 8.38" Dia x 16.75" | 125 HP Diesel, 280 HP Gas | $479.33 | |||
| SKU #: 131571 | MFG #: 1050500 | 2 In Stock Ships immediately | 5" I/O, 8.38" Dia x 20.75" | 210 HP Diesel, 370 HP Gas | $674.02 | |||
| SKU #: 129658 | MFG #: 1050600 | Out of Stock | 6" I/O, 10.04" Dia x 25" | 280 HP Diesel, 440 HP Gas | $1,053.63 |
