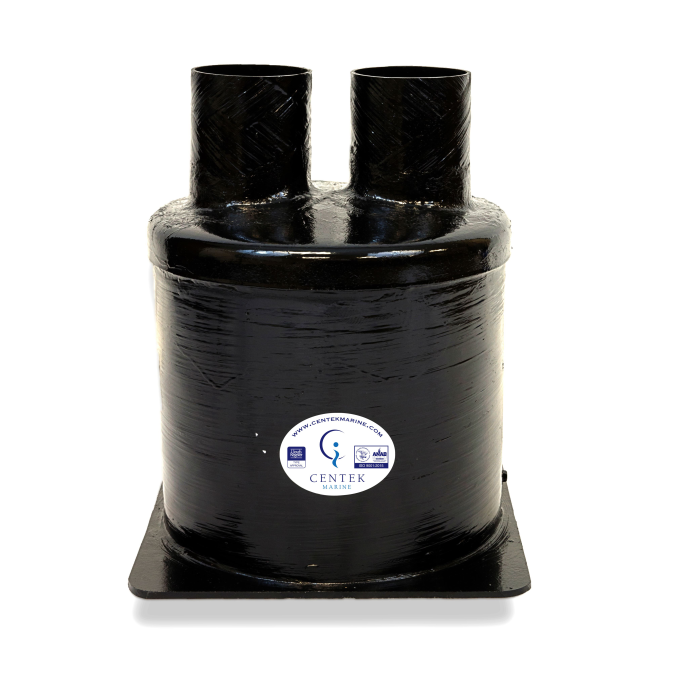

Vernalift Top In/Top Out Muffler

Marine Wet Exhaust Muffler
By: Centek

Availability: Make a selection

Sku# Make a selection
Item ID Make a selection
Mfg# Make a selection
SELECT PRODUCT OPTIONS
Please choose product option(s).
Overview
The compact Vernalift muffler was designed for sailboat auxiliary propulsion engines installed near or below the water line. These are “lift mufflers”, incorporating an internal design which helps force the water out of the muffler without filling it, while markedly reducing exhaust noise. If the engine exhaust manifold is near or below the waterline, a siphon break must be installed in the water supply line to prevent continued water flow after the engine is shut down. When several body sizes are available, choose the largest that will fit the available space. The increased volume will help ensure that residual water doesn't enter the engine after shutdown; the longer the exhaust system hoses, the more important this is.
• Applications: powerboat, sailboat and generator engines
• Fuel type: gas or diesel
• Installation: above or below waterline, close to centerline
• Sound rating: better
• All models have square bases

PRODUCT DETAILS TABLE WITH OPTIONS AND PRICING
Click on See detailed table of all productsto see specifications of product options.
Add To Cart

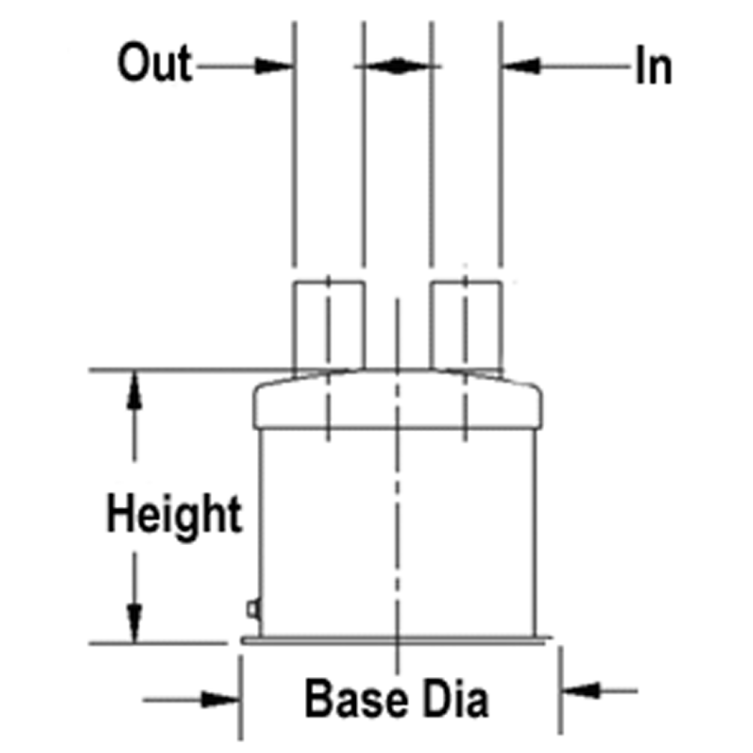

Sku#Item IDCentek#AvailabilityDescriptionUOMYour PriceQTY
169488VER 1500060 1500060Loading...Vernalift Top In/Top Out Muffler, 1.50" I/O x 7.92" H x 8.36" Diameter, 10 HP Diesel 30 HP GasLoading...
83169VER 1500003 1500003Loading...Vernalift Top In/Top Out Muffler, 1.63" I/O x 7.92" H x 8.36" Diameter, 10 HP Diesel 30 HP GasLoading...
133828VER 1500005 1500005Loading...Vernalift Top In/Top Out Muffler, 1.75" I/O x 7.92" H x 8.36" Diameter, 18 HP Diesel 45 HP GasLoading...
69615VER 1500010 1500010Loading...Vernalift Top In/Top Out Muffler, 2" I/O x 10.16" H x 10.04" Diameter, 25 HP Diesel 60 HP GasLoading...
174424VER 1500126 1500126Loading...Vernalift Top In/Top Out Muffler, 2" ⁄ 2.38" I/O x 8.00" H x 8.36" Diameter, 35 HP Diesel 95 HP GasLoading...
156708VER 1500011 1500011Loading...Vernalift Top In/Top Out Muffler, 2.25" I/O x 7.92" H x 8.36" Diameter, 30 HP Diesel 75 HP GasLoading...
142121VER 1500014 1500014Loading...Vernalift Top In/Top Out Muffler, 2.38" I/O x 10.16" H x 10.04" Diameter, 35 HP Diesel 95 HP GasLoading...
156985VER 1500015 1500015Loading...Vernalift Top In/Top Out Muffler, 2.50" I/O x 10.16" H x 10.04" Diameter, 40 HP Diesel 110 HP GasLoading...
69637VER 1500017 1500017Loading...Vernalift Top In/Top Out Muffler, 3" I/O x 10.16" H x 10.04" Diameter, 60 HP Diesel 160 HP GasLoading...
69617VER 1500063 1500063Loading...Vernalift Top In/Top Out Muffler, 3" I/O x 12.00" H x 12.34" Diameter, 60 HP Diesel 160 HP GasLoading...
142762VER 1500064 1500064Loading...Vernalift Top In/Top Out Muffler, 3.50" I/O x 12.00" H x 12.34" Diameter, 85 HP Diesel 220 HP GasLoading...
90414VER 1500065 1500065Loading...Vernalift Top In/Top Out Muffler, 4" I/O x 12.00" H x 12.34" Diameter, 125 HP Diesel 280 HP GasLoading...
175693VER 1500066 1500066Loading...Vernalift Top In/Top Out Muffler, 4.50" I/O x 12.00" H x 12.34" Diameter, 170 HP Diesel 320 HP GasLoading...
75186VER 1500068 1500068Loading...Vernalift Top In/Top Out Muffler, 5" I/O x 16.00" H x 16.17" Diameter, 210 HP Diesel 370 HP GasLoading...
127224VER 1500069 1500069Loading...Vernalift Top In/Top Out Muffler, 6" I/O x 16.00" H x 16.17" Diameter, 280 HP Diesel 440 HP GasLoading...
128651VER 1500131 1500131Loading...Vernalift Top In/Top Out Muffler, 8" I/O x 22.00" H x 22.00" Diameter, 420 HP Diesel N⁄A GasLoading...
128156VER 1500154 1500154Loading...Vernalift Top In/Top Out Muffler, 10" I/O x 28.00" H x 28.50" Diameter, 680 HP Diesel N⁄A GasLoading...
