Solutions for Reversing Motors -
Almost all large vessels and vehicles have one or more onboard reversing motor for powering anything from pumps and blowers to the raising and lowering of equipment.
For applications up to 25A these motors can be switched using rocker switches, toggle switches or keyed rotary switches.
For higher amp rated motors, you can use the above switches with solenoids.

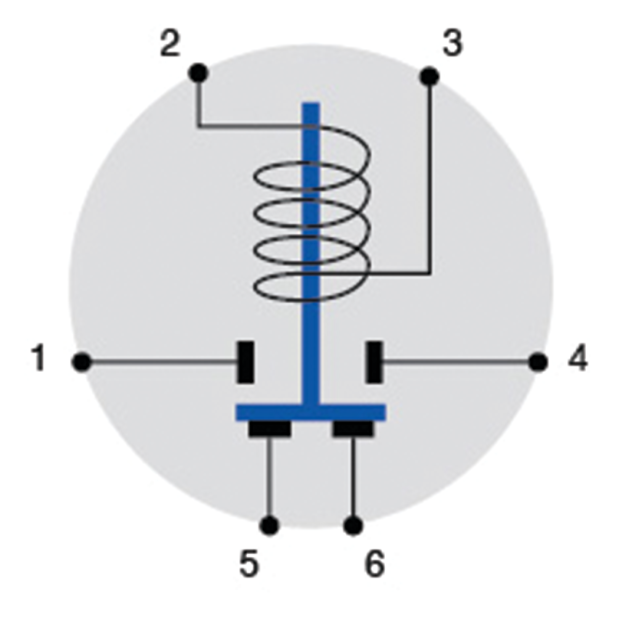

We offer these double-acting solenoids at 12V and 24V for use at up to 85A.
• DPST - Normally OPEN contacts 85A, and normally CLOSED contacts 35A continuous
• For forward and reverse systems in winch operation
• Steel housing
• Insulated casing
• Copper contacts
• Coil circuit terminals are 10-32 thread
• High amperage terminals are 5/16-24 thread
• Bracket mounting holes 5/16" x 19/32", 2-13/64" on centers
