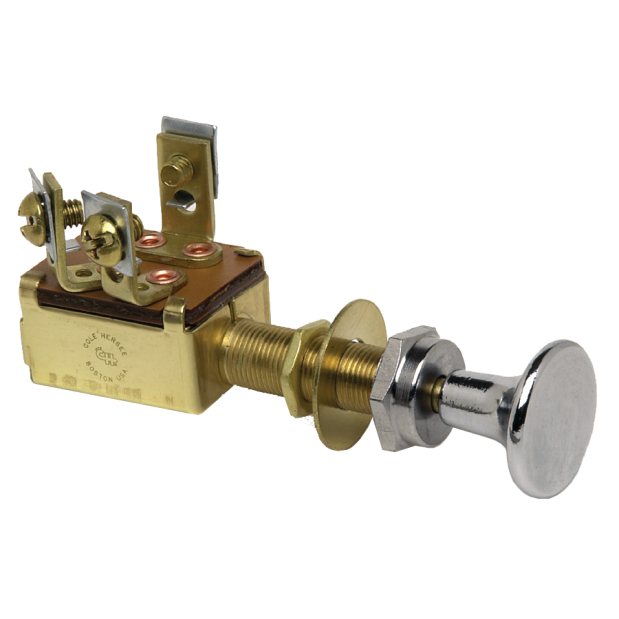

• Two circuit; Single Pole Single Throw; Two position: Off - On; Normally Off
• Three screw-type terminals
• Electrical rating: 10 amps at 12V (DC)
• For 6-36V (DC) electrical systems
• Brass case, mounting stem, terminals and mounting hardware
• Mounting stem 3/8"-32 thread, 1-1/4" long
• Mounts in panels up through 1" thick
• Complete with face nut, washer and hex nut for mounting
• Chrome plated brass knob, 10-32 thread
• Note: Models with BP at the end are packaged in bubble packs for display purposes
