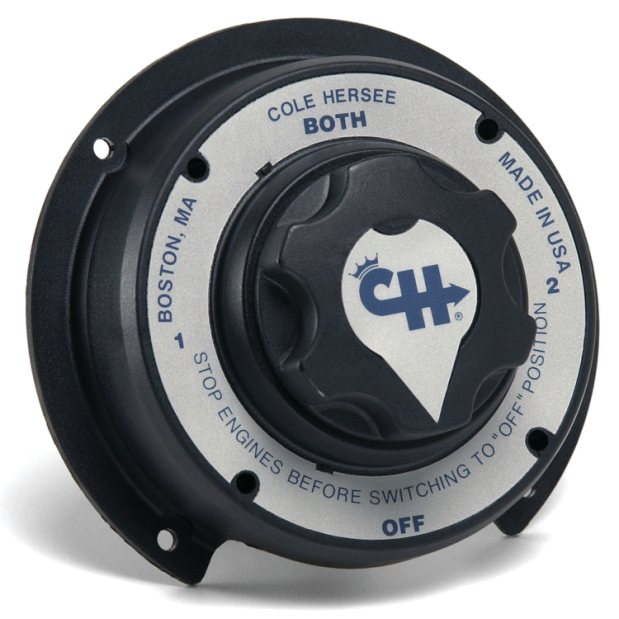

Selector-Disconnect Switch: M-750, Battery Selector and Disconnect Switch

• Permits current to be carried by either of the two batteries, by two batteries simultaneously or cuts off all current at the source
• Ignition protected - conforms to US Coast Guard Safety Standard, Section 183.410 for ignition protection
• Durable, fracture resistant, high temperature engineered plastic case, knob and insulator
• Vapor proof, waterproof, dustproof and corrosion resistant
• Can be operated through ON positions with engine(s) running. Engine(s) must be shut down before moving to OFF position
• Functions with alternators or generators
• Three 3/8" diameter heavy duty copper stud terminals with brass hex nuts
• Supplied with wiring instructions
• May be surface mounted or installed through a panel with a 3-5/16" diameter hole
• Flange diameter 6" and overall height 2-5/8"
• M-563 is a pressure sensitive switch position label for this series, and is for use when mounting switch through a panel
