Standard solenoid relays are common mid-to-high current rated relays that are 'mono stable' meaning that they stay in the switched state as long as a switching signal is applied. These relays, often called "remote-acting switches", are available in a variety of configurations, duty cycles, and performance ratings to match various applications.
Use of solenoids in high current switching mnimizes arcing and contact oxidation, and maintains high performance.

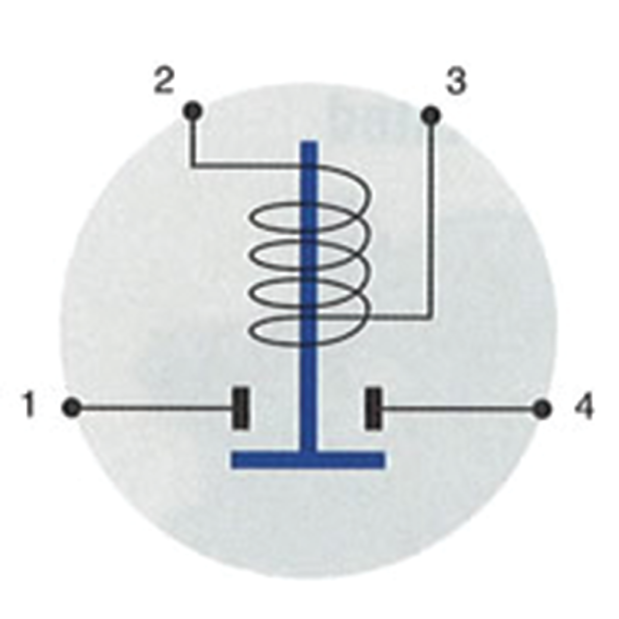

• SPST (Single Pole Single Throw) with normally open contacts
• One circuit: Off-On

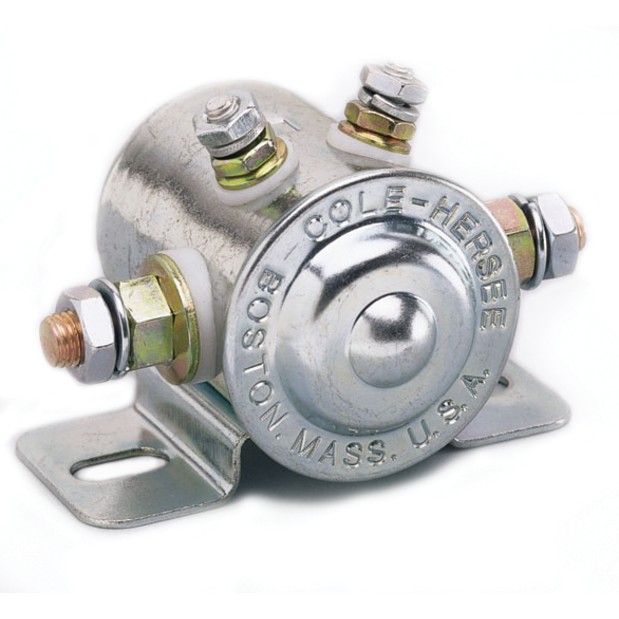

• Plated steel housing; hex nuts and washers included
• Insulated case
• Large (power circuit) battery studs; copper, 5/16"-24 thread
• Small (control circuit) coil studs; steel 10-32 thread
Click here for additional information and technical data about Standard Solenoids.
Note- Never unscrew the inner hex nuts on the studs. These keep the stud, as well as its internal wire connection in place.
