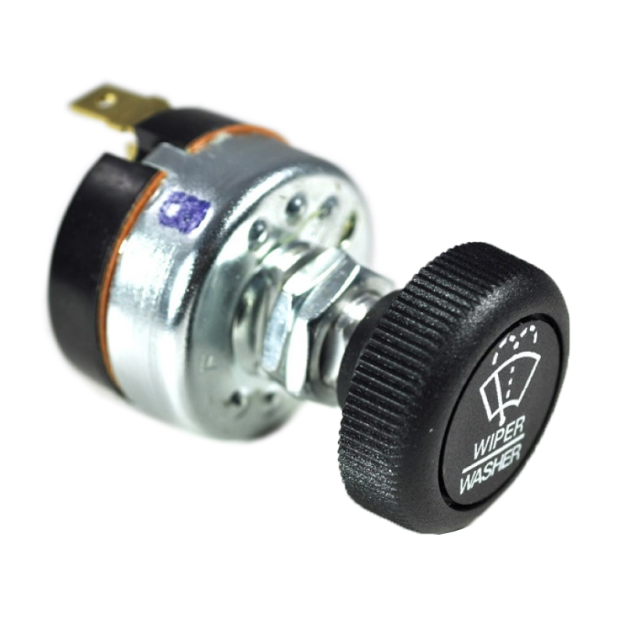

Windshield Wiper Rotary Switch
Rotary Windshield Wiper Switch - Single Motor w/o Dynamic Parking, Push to Wash, 12V, 5 Blade Terminals
SKU: 130111 Item ID: C/H 75221-09-BX
Description
For use with permanent magnet wiper motors.
Black plastic knob with metal insert and set screw, white imprint.
Plated steel case 1-3/8" (34.9mm) diameter, 3/8" (9.5mm) long.
Mounting stem 7/16" -28 thread, 0.38" (9.6mm) long. 5 blade terminals.
• Electromechanical windshield wiper switch
• 3 Positions: off/park - low - high
• No dynamic parking
• 12V DC
• No. 75221-09 comes with an internal 6 amp circuit breaker
• No. 75221-09 can be used with Johnson Electric (formerly United Technologies) motors
Specifications
MFG #:75221-09-BX
Action
Push to Wash
Type
Rotary Windshield Wiper Switch - Single Motor w/o Dynamic Parking, Push to Wash, 12V, 5 Blade Terminals
Voltage
12V DC
Barcode
632850379601
