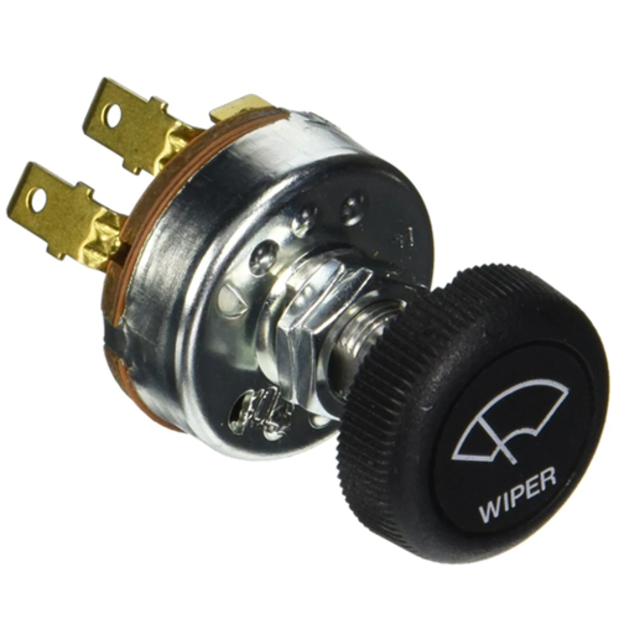

Rotary Windshield Wiper Switch
Rotary Windshield Wiper Switch - Single Motor w/o Dynamic Parking, 12/24V, 4 Blade Terminals
SKU: 130036 Item ID: C/H 75212-04-BX
Description
For use with permanent magnet wiper motors.
For one motor, 12V or 24V DC.
For use with Johnson Electric (formerly United Technologies) motors.
Black plastic knob with metal insert and set screw
White imprint.
Plated steel case 1-3/8" (34.9mm) diameter, 3/8" (9.5mm) long.
Mounting stem 7/16 -28 thread, 0.38" (9.6mm) long.
4 blade terminals.
• Electromechanical windshield wiper switch
• 3 Positions: off/park - low - high
• 12 - 24V DC
• No O-ring seal
Ÿ No push-to-wash function
• No. 75212-04 can be used with United Technologies motors
Specifications
MFG #:75212-04-BX
Action
No Push to Wash
Type
Rotary Windshield Wiper Switch - Single Motor w/o Dynamic Parking, 12/24V, 4 Blade Terminals
Voltage
12/24V
Barcode
632850378802
