4G Xtream Cellular Internet Access

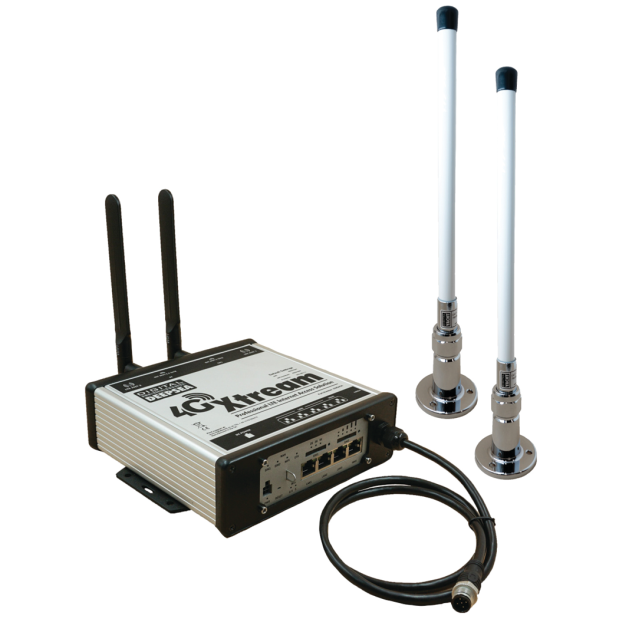

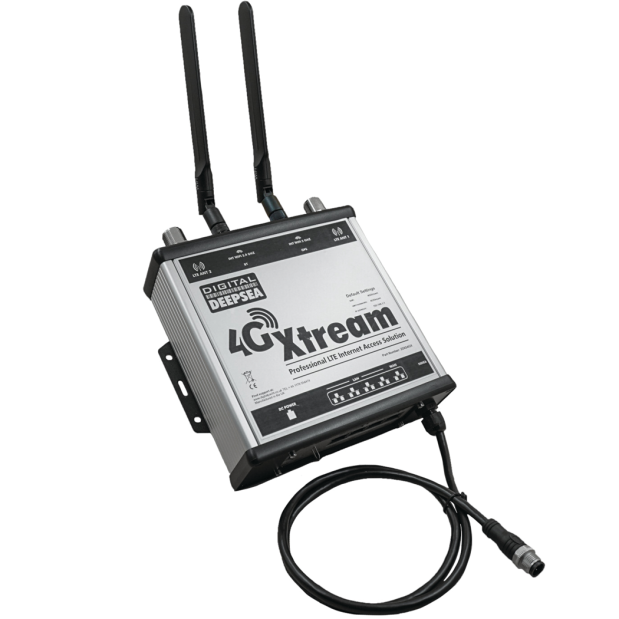

4G Xtream represents Digital Yacht's most recent top-tier LTE (cellular) internet access solution for marine use, featuring a NMEA 2000 interface. The product is delivered as a comprehensive package, including dual external antennas, deck mounting hardware, and cabling. Optional antenna mounts are also available.

Utilizing MIMO technology and two wide band LTE antennas, this product provides rapid connectivity of up to 300 MBs (subject to network availability). It comes equipped with a dual band wifi router that can support multiple connections, dual SIM slots with automatic failover capability, built-in GPS for anchor alarm and tracking purposes, as well as an NMEA 2000 interface for seamless navigation and instrument data connectivity, along with wireless interfacing. Additionally, there is a Bluetooth interface for potential future connectivity applications.

4G Xtream also has an NMEA 2000 interface so that NMEA 2000 navigation data can be made available for apps on smartphones, tablets, iPads and PCs.

This allows all NMEA 2000 data as well as internet data to be sent to popular iOS and Android apps and navigation software such as Navionics, iSailor, Weather4D, SailGrib, iNavX, TimeZero, OpenCPN and more.

It will sit alongside our existing 4G Connect Pro as a premium product and is ideal for use on large yacht, workboats, tugs and commercial ships where reliable, low cost coastal internet and in port connectivity is required. 4G Xtream features independent dual band (2.4 & 5GHz) wifi for interconnection to mobile devices. This also provides the connectivity for NMEA data so apps on mobile devices can utilise the boats navigation and instrumentation data.

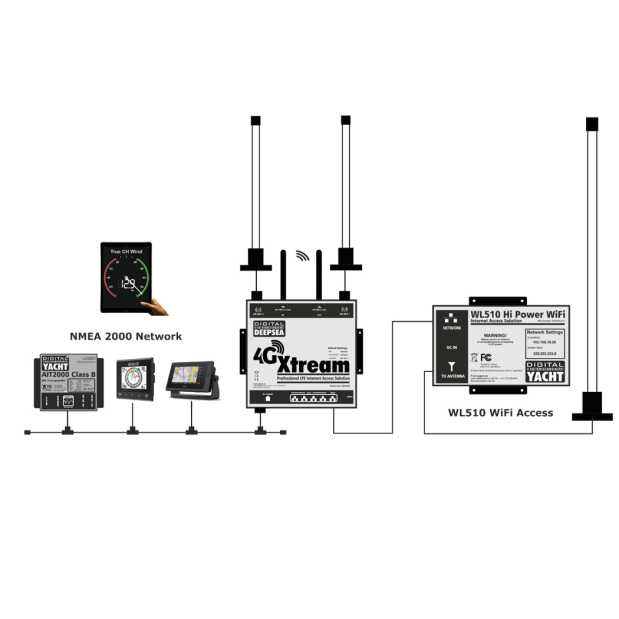

For external hi-power wifi (to access shoreside hotspots) our WiFi booster antenna is recommended which connects to the WAN port. 4GXtream can then act as a router for this connection and allow the user to switch from wifi to LTE.

• Latest Cat 6 LTE MIMO technology with range up to 25NM offshore (network dependent)
• Dual SIM slots with auto fail over or manual selection
• Two external, high gain, wide bandwidth antennas
• Dual band integrated wifi router (2.4 & 5 GHz) – independently configurable
• Built in NMEA 2000 interface to transmit NMEA 2000 data over the wireless and wired network to compatible apps
• Built in GPS with external patch antenna for IOT and tracking applications
• Built in Bluetooth with antenna for future applications

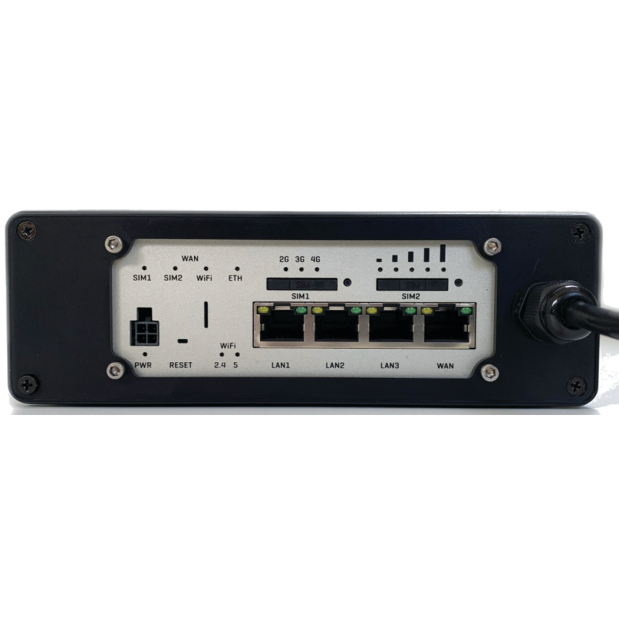

• 3 x LAN ports
• 1 x WAN port for additional internet connectivity – eg: WL510 high power wifi system
• Digital input/output connectivity for IOT/control applications (Available Q3 2021)
• SMS addressable
• Optional 10m & 20m LMR400 assemblies

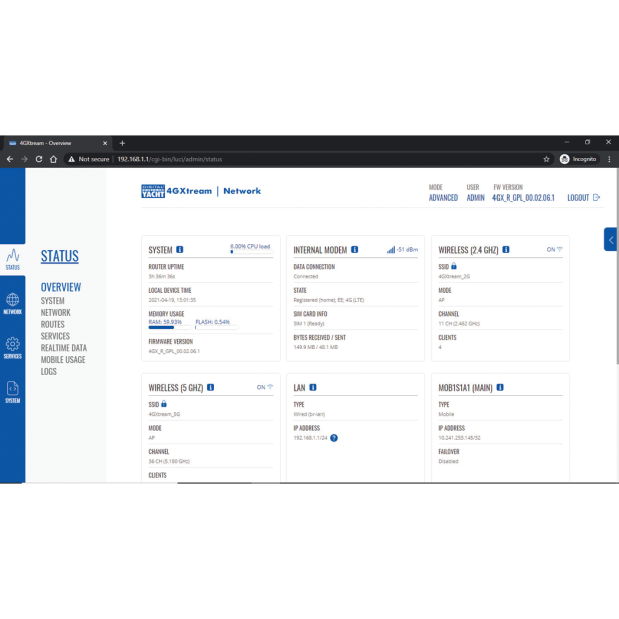

CONFIGURATION
Configuration is very simple. Just insert the SIM cards. The 4GXtream has two standard SIM slots and it is possible to fit two SIMs from two different network operators. By default, the 4GXtream will query the SIM that is installed and automatically select the APN settings from its internal database.

However, it is very important that you “lock down” your wireless network, with your own network name (SSID) and wireless password. This task only takes a couple of minutes.
