BM100 - Battery Monitoring System for NMEA 2000 Systems

Digital Yacht has introduced the BM100 battery monitoring system, which offers precise measurements of DC voltage, current, and capacity. This ensures reliable monitoring of your boat's battery and electrical system. At the heart of the system is the SmartShunt, which accurately measures battery voltage and current. Using these measurements, it intelligently calculates the battery's state of charge and estimates the time until depletion of the remaining charge. Additionally, it keeps a record of important historical data such as deepest discharge, average discharge current, and the number of charge and discharge cycles.

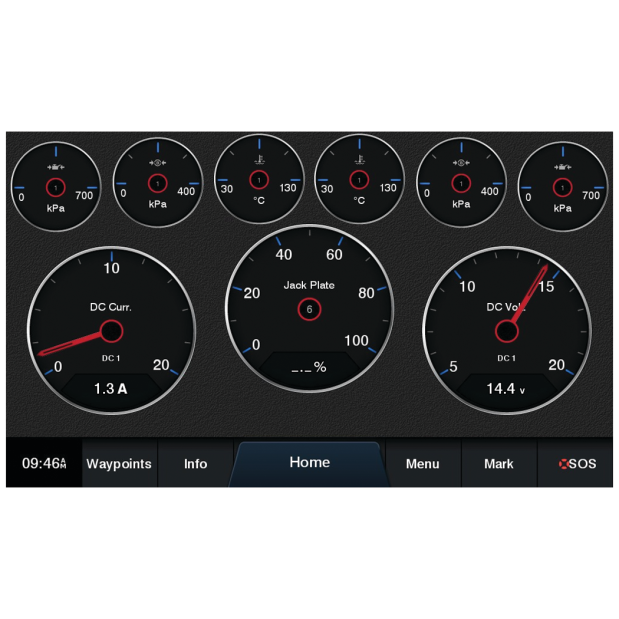

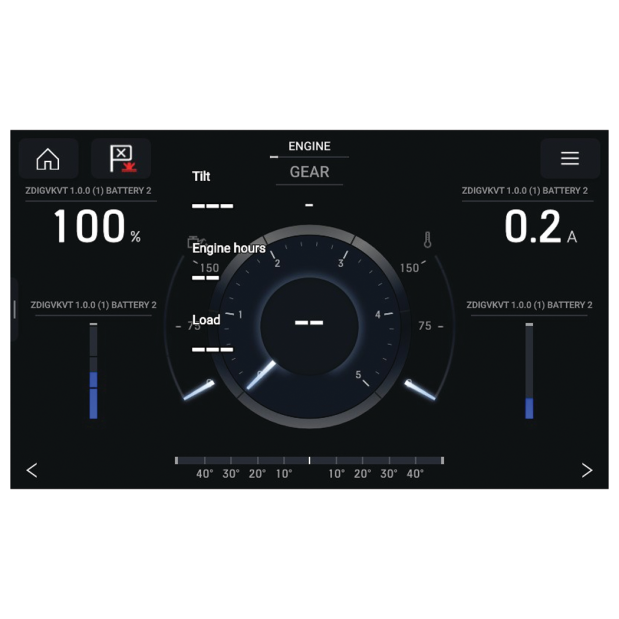

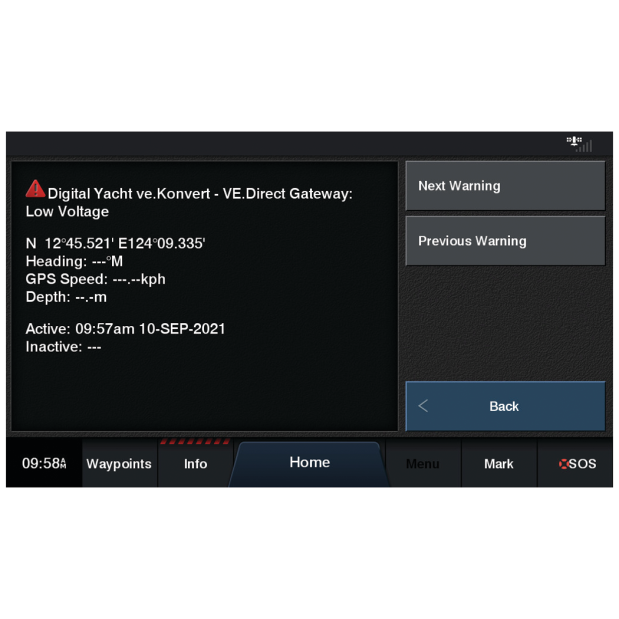

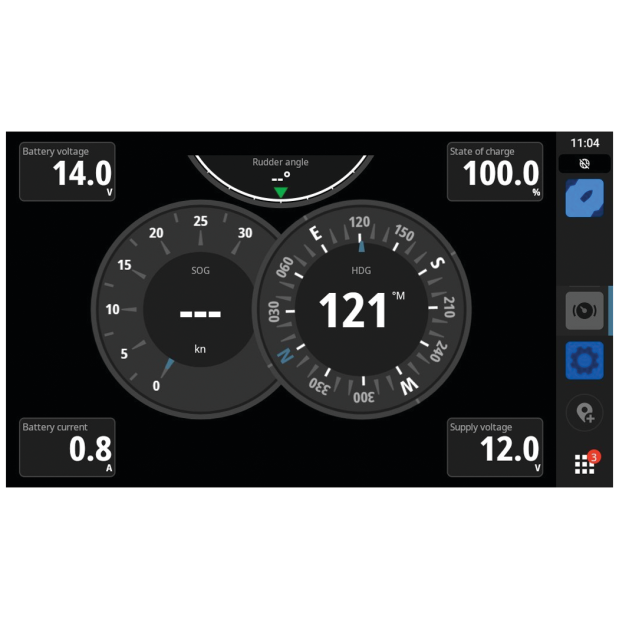

The SmartShunt can also monitor the voltage of a secondary battery, typically used for engine starting. The system is equipped with a NMEA 2000 interface, allowing key parameters to be displayed on your navigation multi-function display or plotter. Leading manufacturers such as Garmin, Raymarine, Furuno, and Navico support the display of electrical battery data through their NMEA 2000 interface. Furthermore, the system can be configured to provide alarms and alerts for low capacity and voltage.

The BM100 also has a standalone wireless Bluetooth interface so your mobile phone or iPad can connect and display current, voltage, capacity, additional historical data, state of charge information and time to go based on remaining battery capacity.

The product is a collaboration between Victron Energy and Digital Yacht. The system utilises Victron’s proprietary VE.Direct data connectivity as a source for the NMEA 2000 data.

The BM100 is part of a wider group of products now introduced by Digital Yacht which bring NMEA 2000 connectivity to Victron systems using the VE.Direct interface.

Victron solar panel controllers (MPPTs) and battery monitors can now also interconnect to NMEA 2000 via the veKonvert interface.

We’re increasingly reliant on DC battery electrical power while afloat for lighting, refrigeration, pumps, winches etc so having accurate battery information and monitoring charge from various sources is essential. The service life of batteries depends on many factors. Battery life may be shortened by under-charging, over-charging, excessively deep discharges, excessive charge or discharge currents, and by high ambient temperature.

Monitoring the battery with the BM100 will give important feedback to the user so that remedial measures can be taken when necessary. Doing this will extend battery life. There’s also an optional battery temperature sensor available.

The BM100 can also integrate with Digital Yacht’s other NMEA 2000 and wireless instruments which offer a hybrid NMEA 2000 and wireless display options.

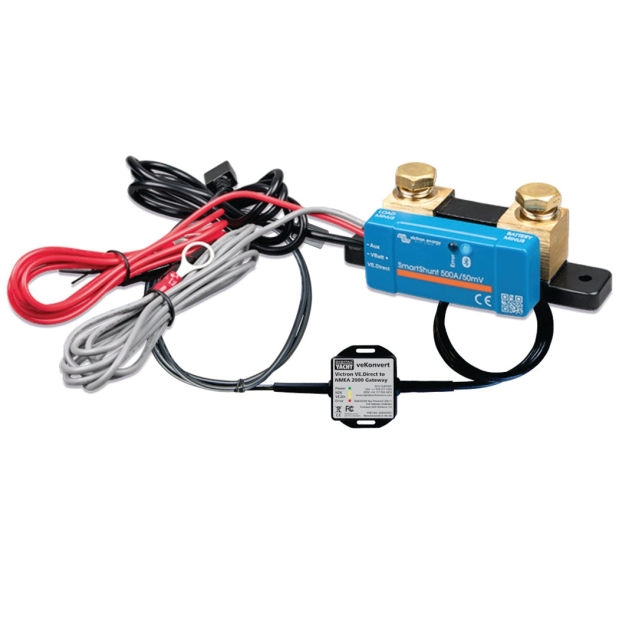

• BM100 solution comes as a complete package with SmartShunt and veKonvert NMEA 2000 interface.
• Bluetooth interface for setup and detailed analysis including charge/discharge cycles, state of charge, remaining capacity and historical data
• Use your phone/tablet and your NMEA 2000 devices for battery monitoring and management
• 500A SmartShunt included for main battery system
• Monitor voltage of a separate (eg starter) battery
• Universal NMEA 2000 gateway for Victron’s popular range of smart battery monitors/SmartShunt using VE.Direct interface (see compatibility list in the FAQ tab)
• Enables electrical and battery monitoring and management on compatible multi functions displays (Raymarine, Garmin, Navico, Furuno etc)
• Provides battery voltage and charge/discharge current, state of charge and time to depletion based on sophisticated algorithm
• Easy installation, plug ‘n play connectivity and self-powered from the NMEA 2000 bus
• Supports alerts generated by the SmartShunt
• Supports multiple SmartShunts for multi battery systems
• Also compatible with other VE.Direct products such as solar MPPT controllers
