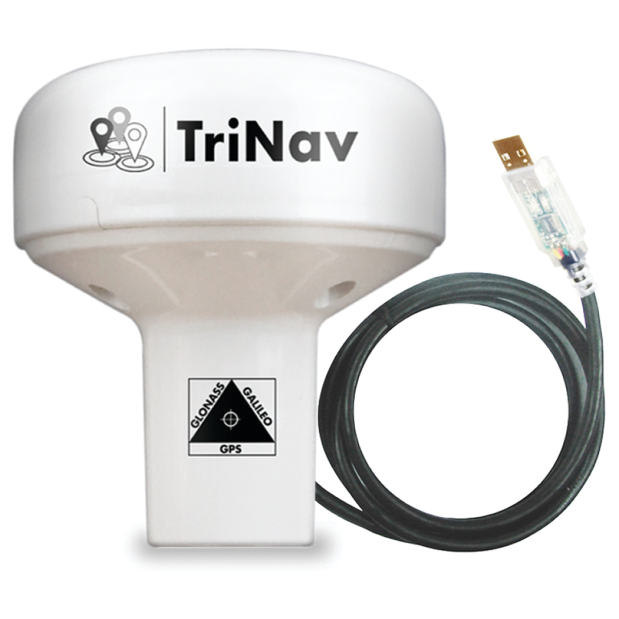

GPS160 USB with TriNav Sensor

Digital Yacht has recently introduced their latest innovation, the TriNav GPS160. This cutting-edge positioning sensor utilizes the GPS, Glonass, and Galileo satellite systems, ensuring unparalleled accuracy and redundancy. With an impressive typical accuracy of less than 3 ft, it guarantees precise positioning. Additionally, the TriNav GPS160 can output data at a remarkable rate of up to 18Hz, resulting in smoother plotter track displays. Moreover, its TriNav software technology enhances positioning accuracy by mitigating the risks of spoofing and local interference. For added convenience, the USB model comes equipped with a GPS antenna and USB cable.

The device has a variety of modes through field programming. This includes single GNSS operation (eg Galileo only) as well as output configurations such as update rate, NMEA sentence structure etc.

The GPS160USB GPS antenna variant ships with a 16 ft USB cable. It powers itself from the USB source (PC, MAC or Linux). Once you install the GPS160 USB GPS antenna, the host PC creates a virtual COM port so navigation programs can receive positioning data. If a longer cable or the MOB feature is required, it is best to utilise the GPS160 (standard NMEA version) with our USB-NMEA adaptor cable.

• 72 channel GPS, Glonass , Beidou and Galileo GNSS positioning receiver
• Fitted with a 16 ft USB cable
• Powers itself from the USB source (PC, MAC or Linux)
• Typically sub 1m accuracy thanks to QuadNav™ technology –combines all satellite data for optimum accuracy
• Can be configured as dedicated GPS, Glonass, Beidou or Galileo only device
• Refined anti-spoofing algorithm for robust positioning performance and interference rejection
• User/field can select 4800, 38400 and 115200 baud operation through simple internal DIP switches
• Many formats of NMEA data output including datum information –user can configure through internal DIP switches
• 33ft cable
• Up to 18Hz update rate (user selectable)
• Ultra low (<20mA) power consumption at 12V DC
• Efficient system (ECDIS) support with datum sentence structure (DTM/GBS/GNS/GRS/GSA/GST)

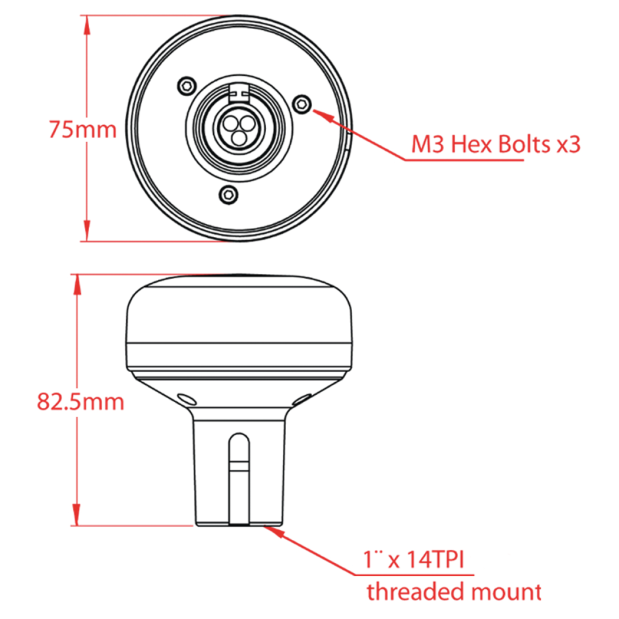

• Puck installation or fits 3rd party industry standard 1" x 14TPI threaded mount

Galileo
Galileo is the new global navigation satellite system (GNSS) that has been in development over the past two decades. It joins the GPS and GLONASS systems and offers mariners a 3rd reliable positioning source. It is now fully operational as of 2020.
There are currently 22 satellites in usable condition. This means the satellite is working and adds to the service provision. There are then 2 satellites that are in "testing" and 2 more are marked as not available. The final constellation now consists of 30 satellites (24 operational and 6 spares) as of 2020.
October 2023 – New Features: All GPS160 models now feature a new GNSS engine that supports QuadNav technology. These models now support the Chinese Beidou satellites (as well as GPS, Glonas and Galileo), which means all position fixes, course and speed over ground calculations will now be utilising the strongest satellite signals from a network of over 100 satellites. This results in improved time to first fix, more robust operation against jamming, “spoofing” and outages and also improved current consumption (<25mA)
