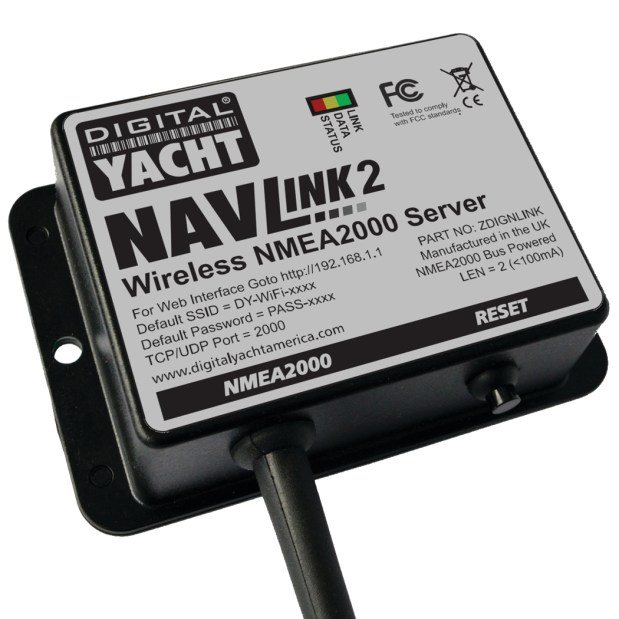

NavLink2 - NMEA 2000 to Wi-Fi

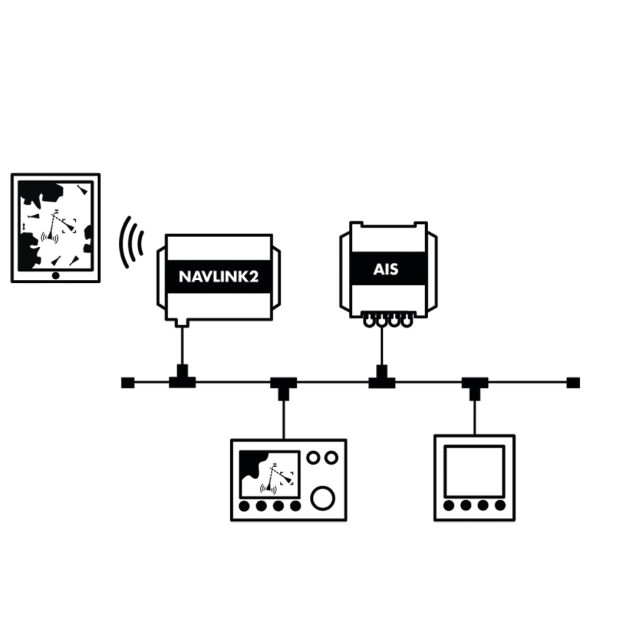

NavLink 2 provides a simple solution for connecting NMEA 2000 navigation data to various devices such as smartphones, tablets, iPads, and PCs. Its quick installation process involves a direct connection to the NMEA 2000 backbone, making it a hassle-free task that only takes seconds. Additionally, it is self-powered through the data network.

Once set up, NavLink 2 establishes a local WiFi network for device connectivity. Alternatively, it can be configured to join an existing wireless network if one is already in place. This feature is particularly beneficial for devices like the Furuno wireless radar, which rely on their dedicated network for operation but also need NMEA 2000 data integration for charting apps.

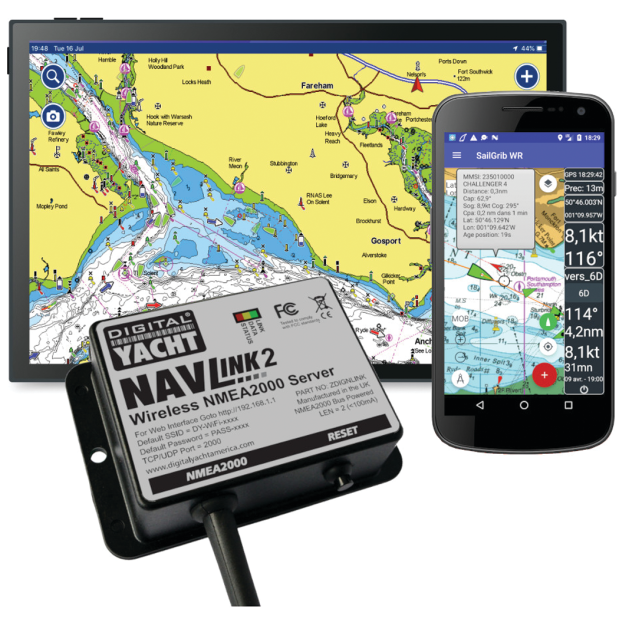

NavLink2 creates a secure, password protected, local Wi-Fi network which allows all NMEA 2000 data to be sent to popular iOS and Android apps such as Navionics, AquaMap, iSailor, Weather4D, SailGrib, iNavX, TimeZero and more.

NavLink2 supports both UDP (for multiple connections) and TCP/IP interfaces for maximum compatibility with apps so you can be using a PC at the chart table with an iPad on deck. It’s also bidirectional so apps can control an autopilot if they enable this function.

• NMEA 2000 to WiFi server
• Self powered from NMEA 2000 bus – fits in seconds
• Supports TCP/IP and UDP connection modes
• Provides AIS, navigation and instrument data to apps
• Compatible with all popular apps like iNavX, TimeZero, Weather 4D, Navionics, SailGrib, NavLink, iSailor, SeaPilot, AquaMap etc
• Up to 7 connected devices
• Compatible with Windows, Linux, MAC OS, iOS and Android
• Easy web interface for programming
• Password protected
• Can act as dedicated wireless server or rather can connect to an existing wireless network
• Diagnostic data display mode and LED status lights
• Internal hi gain WiFi antenna
• Super-fast 230KBs operation
• Optional raw data mode for developers and likewise advanced users

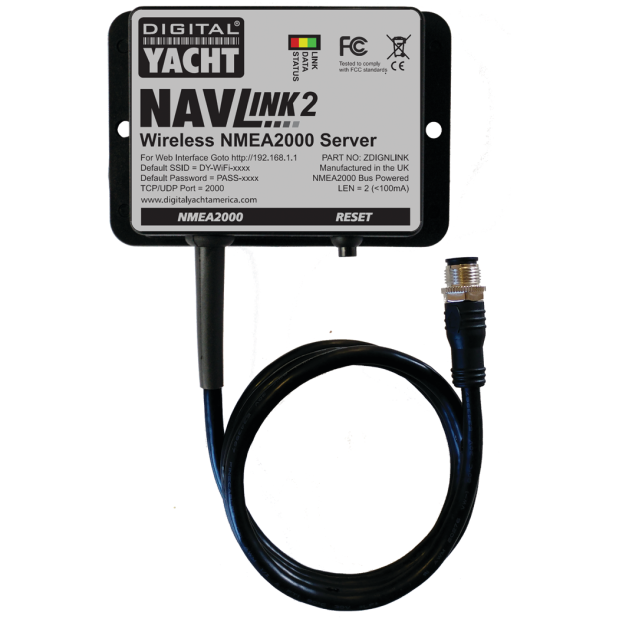

• Supplied with NMEA 2000 cable

Configuration

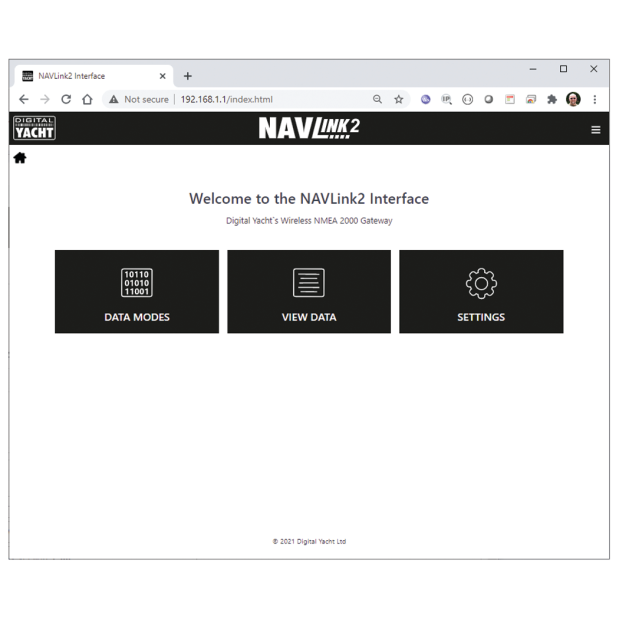

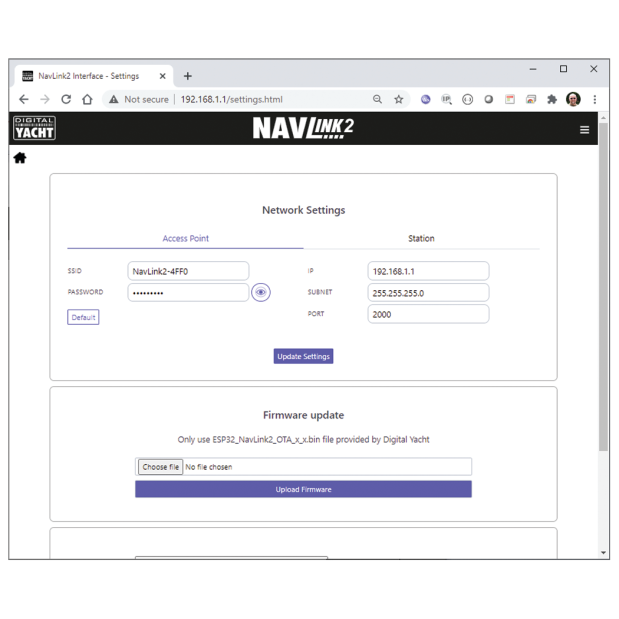

You can configure the NavLink2 through its own simple web interface, just open your web browser, enter the NavLink2’s IP address and you can filter NMEA sentences, change network name & password or even merge the WiFi to an existing WiFi network on board. So no complicated programming software or app required.

You can also choose a specific mode for the Navlink2, for instance, you can choose Raw NMEA 2000 mode or the AIS mode to only send AIS and GPS data to get a better result with an app that can only accept AIS & GPS data, such as Navionics. You can even view the received NMEA data in the web browser, for easy fault finding of issues.

Finally, The NavLink2 supports TCP and UDP network protocols for maximum compatibility with apps. If you want to have full bi-directional control of an autopilot, with guaranteed data integrity or you want to be the only person receiving the data, then select TCP. If however, you want to receive the same data on multiple devices, for instance a PC at the chart table and an iPad on deck, then select the UDP broadcast protocol.
