7100 Series Masterflush Toilets - Residential Bowl

Residential-Size Macerator Toilet - Fits Any Angle, Any Head, Any Boat

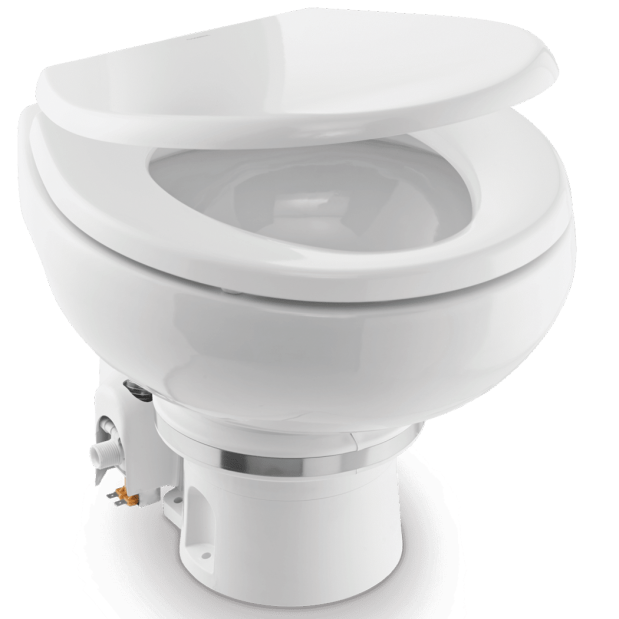

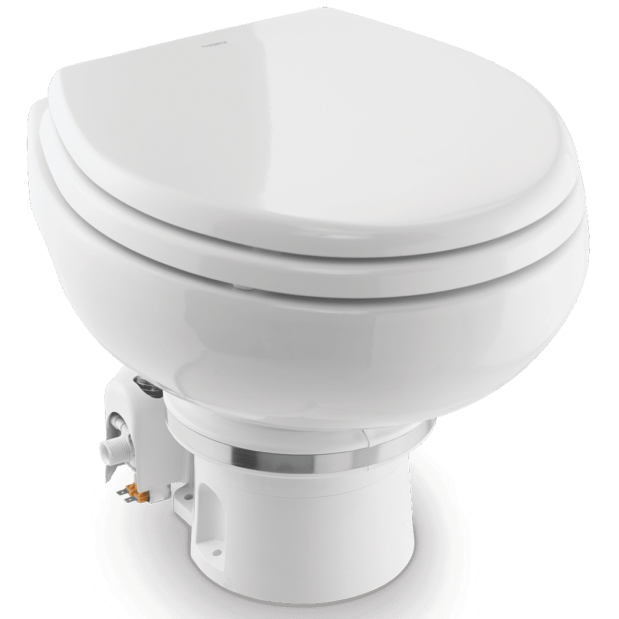

The Dometic MasterFlush 7100/7200 Series toilets incorporate the innovative Omnidirectional Rotating Base Installation Technology (ORBIT), which allows for a complete 360° rotation of the bowl-to-base connection. This unique feature enables the base to be positioned at any angle in relation to the bowl, offering unparalleled flexibility in floor plan and plumbing arrangements, especially in compact areas. Additionally, these toilets boast a spacious residential-size bowl, ensuring optimal comfort and functionality.

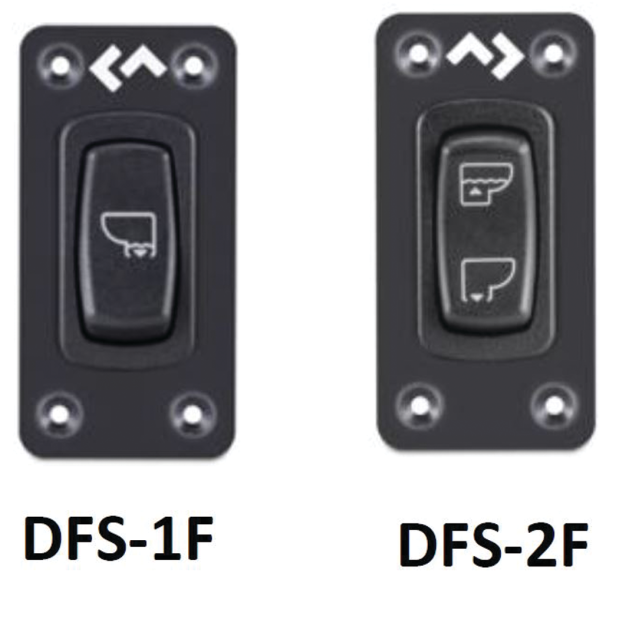

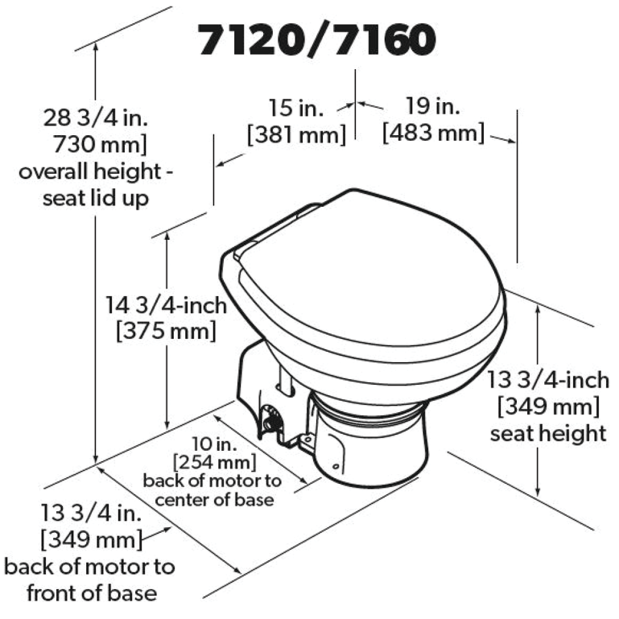

7120/7160 - Medium-height macerator toilet residential round-front bowl, DFS-1F flush switch for raw water and DFS-2F flush switch for fresh water (adds the “Add water” function)
7220 - Low-profile electric macerator toilet, compact marine bowl

• Space saving due to the 360° Orbit technology
• Energy efficient and a low water consumption per flush
• Small footprint – fits in almost any head compartment
• A highly effective macerator system
• Strong flow and inlet water strainer for robust, bowl-clearing flush every time

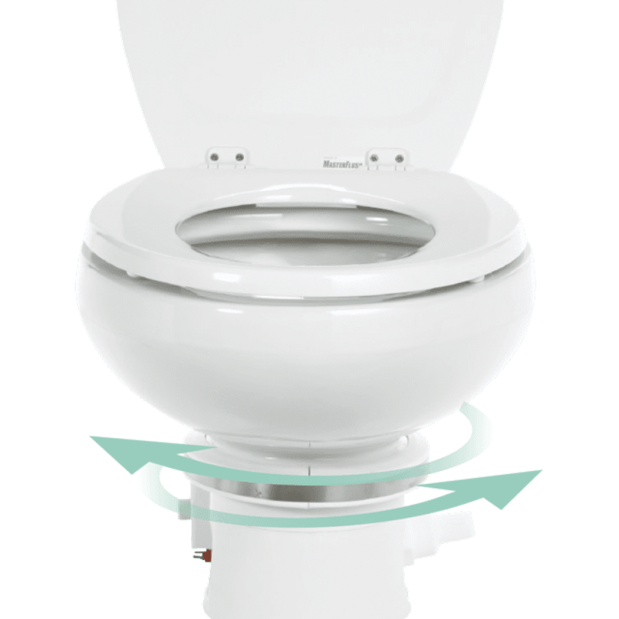

• Full 360° bowl-to-base rotation allows virtually limitless positioning to accommodate small spaces and diverse plumbing layouts

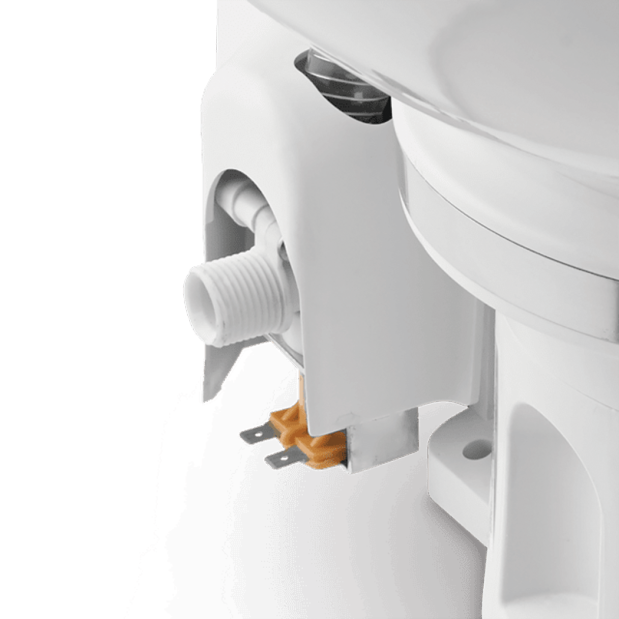

• Integrated electric water valve on freshwater models
• Standard dual-function "add water/flush" switch, or optional triplefunction "flush/add water/dry bowl" switch (freshwater flush model only)
• Flushes with as little as 1/3 gallon/1.21 l of fresh water
• Dual-stage impeller/macerator fully processes waste for thorough pump-out
• Pressurized fresh water source required or Integrated raw water pump.
• Enameled wood seat design (Slow close)
