2-Tank Monitor System - Holding Tank + Freshwater Tank (22" Max. Tank Depths)

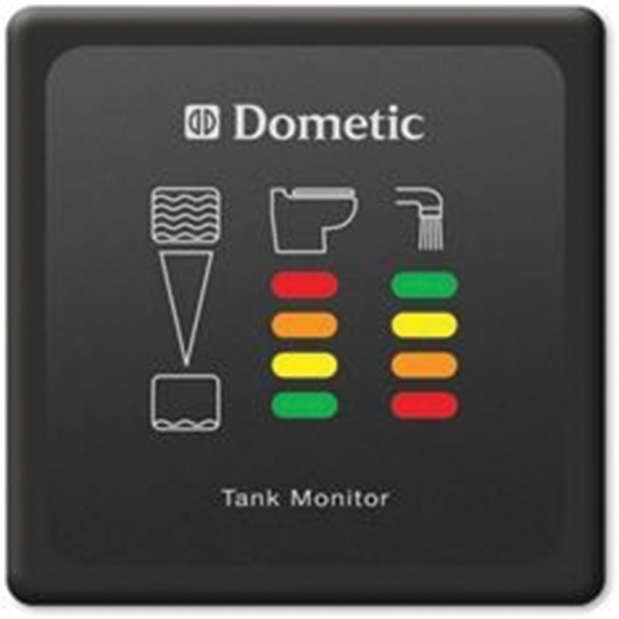

Dometic's DTM Tank Monitor provides accurate, continuous tracking of tank capacities with easy-to-read, distinctive LED lights that indicate up to four levels of tank contents.
This DTM08 panel includes probes to monitor the levels in a holding tank plus one water tank.

Level-sensing probes install in Dometic or other rigid tanks* and are adjustable to desired level indication heights.
Dometic's DTM04, DTM08 and DTM12 Monitor panels can connect with a DTD Tank Discharge Control to offer convenient options for remote holding tank discharge; see Related Products, below.
* May require Holding Tank Flange Kit, #307230272.

• Monitor indicates empty, low, mid- and full tank levels
• Continuous light indicates power is on
• No false readings. No electrical components contact water
• Easy to install. Two probe assembly length options fit tanks up to 22" (55.9cm) and 45" (114.3cm) high
• Optional relay shuts down toilet when waste tank is full (DTM04); or shuts down water pump when freshwater tank is full (DTMF04)
• Panel dimensions - 3-1/4" x 3-1/4" x 3/8"; extends 2" behind the mounting surface
• Panel is available in white by special order; inquire at 800-426-6930
• 12V DC or 24V DC operation

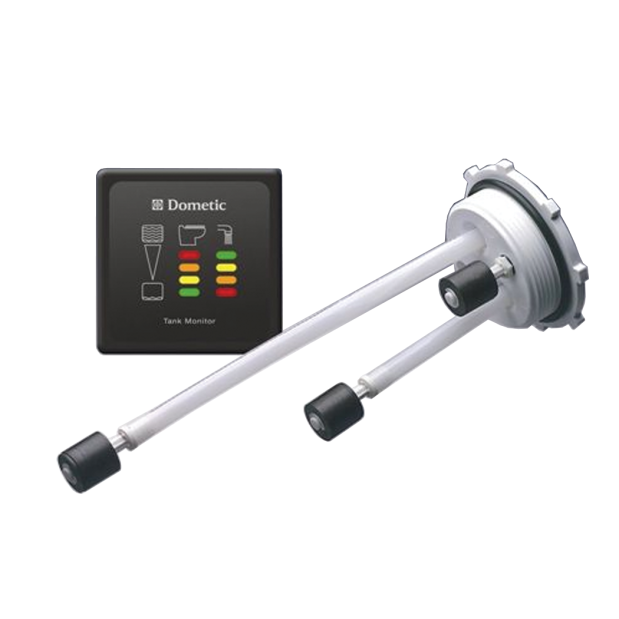

DTM08 four-level tank monitor system for waste holding tank and freshwater tank includes two 4-level Probe Cap Assemblies with tank probes for tanks to 22" deep.
