Articu-Lock Single Sheave Assemblies

Series 622 • Extremely Easy to Align and Lock in Place

Availability: Make a selection

Sku# Make a selection
Item ID Make a selection
Mfg# Make a selection
SELECT PRODUCT OPTIONS
Please choose product option(s).
Overview
Articu-Lock™ Sheave assemblies are ideal for performance sailboats, cruising/racing catamarams, and high-tech cruising yachts above 27 feet in length. They are lightweight, strong, and the swinging frame makes them extremely easy to align and lock in place. Edson Sheave Assemblies are specially designed for use in wire rope steering systems for sailboats. All sheave housings are rigidly constructed and are designed to prevent the wire from jumping out of the sheave.
The grooves are machined extra deep and are concentric with the bearings to maintain constant wire tension.
Edson sheaves and sheave assemblies are available in bronze or lightweight black anodized aluminum.
The aluminum sheaves are ideal for performance and racing boats that require sensitive, lightweight steering.
Bronze sheaves are suggested for heavy duty or long-term cruising applications.

• Lightweight cage design
• Oil impregnated bronze bearings in 4" sheaves
• Stainless steel needle bearings on 6", 8", 10" and 12" sheaves
• Sheave hubs are wider than the rims to prevent side friction and noise
• Sheave pins are stainless steel for easy removal for installation or maintenance
• Sheave housings have pin arrestors to prevent premature sheave pin wear

PRODUCT DETAILS TABLE WITH OPTIONS AND PRICING
Click on See detailed table of all productsto see specifications of product options.
Add To Cart
Sku#Item IDEdson Marine#AvailabilityDescriptionUOMYour PriceQTY
175623EDS 622-ST-6ALNB 622-ST-6ALNBLoading...6" Articu-Lock Single - Bronze Sheave, 5/16" Wire, Needle BearingLoading...

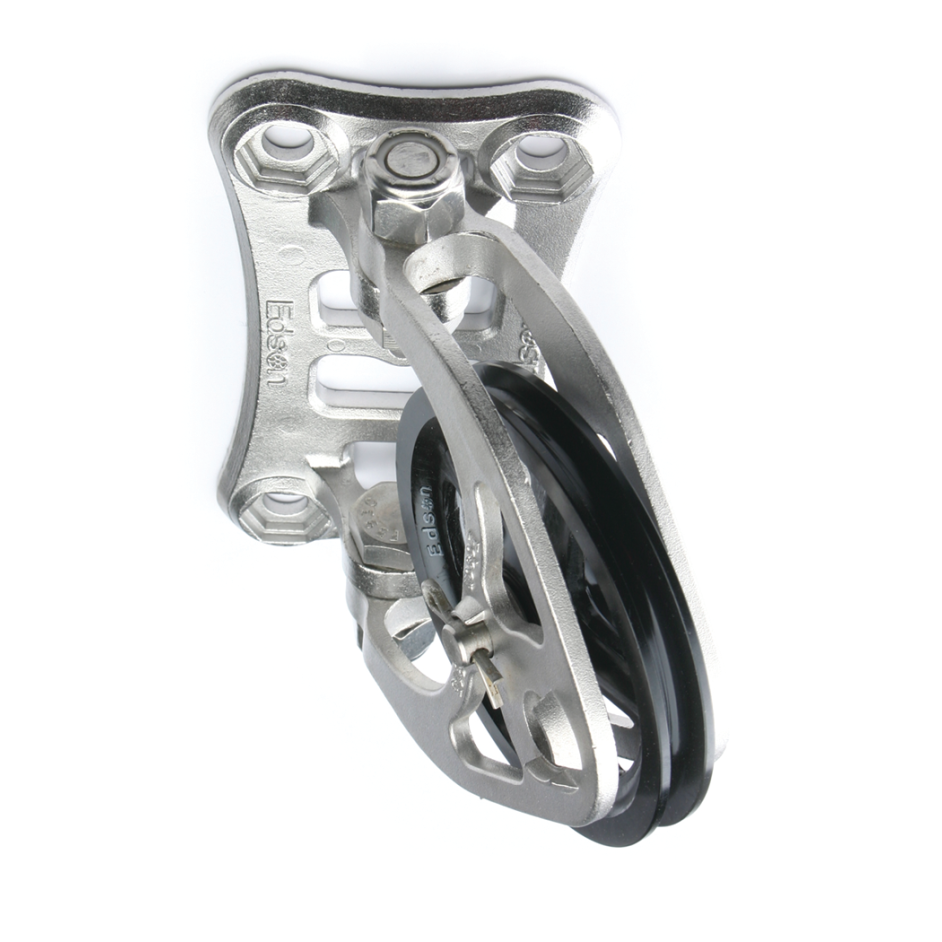

201519EDS 622ST-4AL 622ST-4ALLoading...4" Articu-Lock Single - Aluminum Sheave, 1/4" Wire, Bronze Oilite BearingLoading...
