275A Mini Off-1-2-Both Battery Switch -Model 701-S

This On / 1 / 2 / Off Egis Contour Style battery switch has a very compact 2.69" x 2.69" footprint that allows for installation in areas where space is limited. Flexible mounting options allow for a variety of mounting configurations.

The switch is sealed against dust and water intrusion to ensure reliable circuit protection for the life of the installation.
It is Ignition Protected, making it safe for installation in closed compartments with potentially explosive gases.

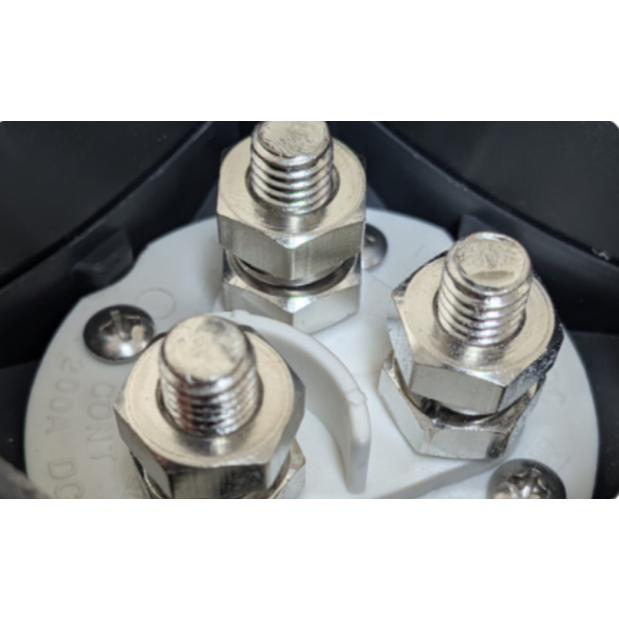

Lock nuts with serrated flanges improve resistance to the cable terminal loosening in high-vibration environments.

• Dimensions: 2.69"L x 2.69"W x 2.98"H
• Easy break-away side panels allow for wire routing in any direction while maintaining maximum coverage of conductors
• Harsh environment design with stainless-steel hardware and high temperature materials
• Cut-out hole for panel / bulkhead mounting - 2.05" (52mm)
• 275 Amp Continous rating (requires 1/0 AWG or larger cable)
• Max 48 VDC
