600 Amp Busbars - Heavy-Duty 3/8" Studs w/ Cover

Egis 600 Amp PowerBars are high-amperage bus bars used for power distribution in demanding mobile electric applications (vehicles, boats, etc.).

• High Current Rating: They are typically rated for a maximum continuous current of around 600 Amps.
• Voltage: Maximum voltage rating is 70-72 VDC.
• Construction: Made from tin-plated copper for excellent conductivity and corrosion resistance.
• Stud Configuration: Available in different configurations, commonly 4 or 8 M10 (3/8") studs, to accommodate various wiring needs.
• Environmental Protection: Ignition protected, making them safe for use in enclosed, potentially explosive environments (like engine compartments on gasoline-powered vessels).

These robust bus bars are used to consolidate multiple high-current wires to a single power or ground source, creating a clean and reliable power distribution point. They are specifically designed for demanding use cases, often in marine or heavy-duty vehicle applications, where reliability and environmental resistance are critical.

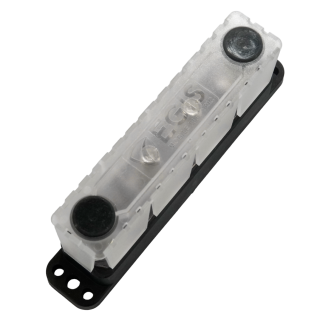

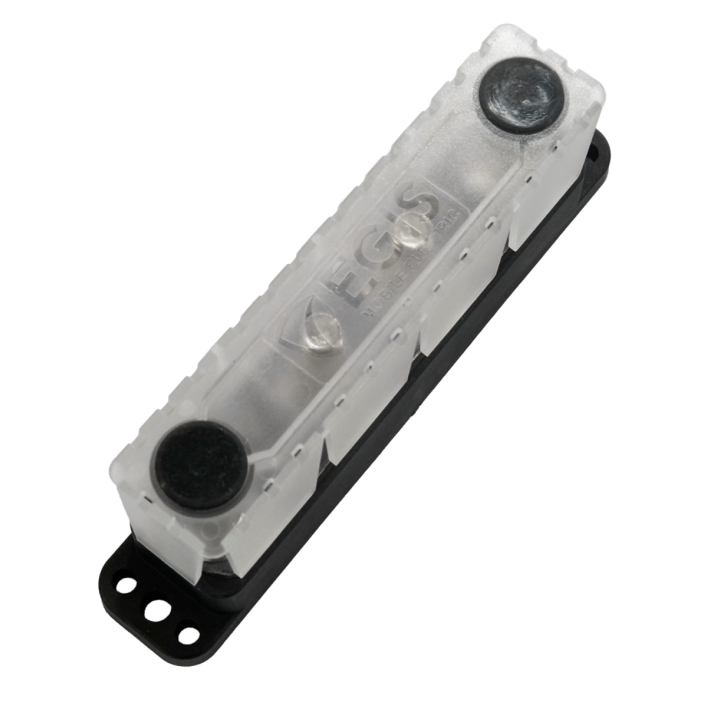

Includes Transparent Cover that allows inspection of torque markings without removal, and provides break-away side tabs for cable / terminal access while ensuring maximum protection against inadvertent shorts to adjacent parts.

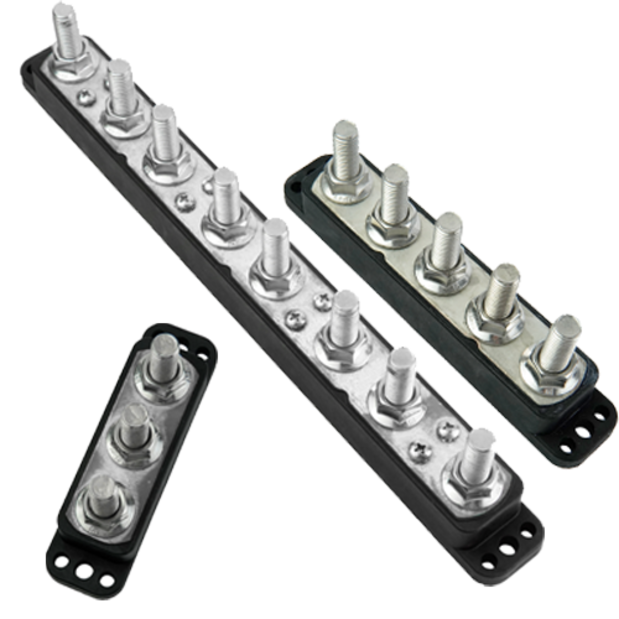

Fisheries offers these PowerBars in four sizes:

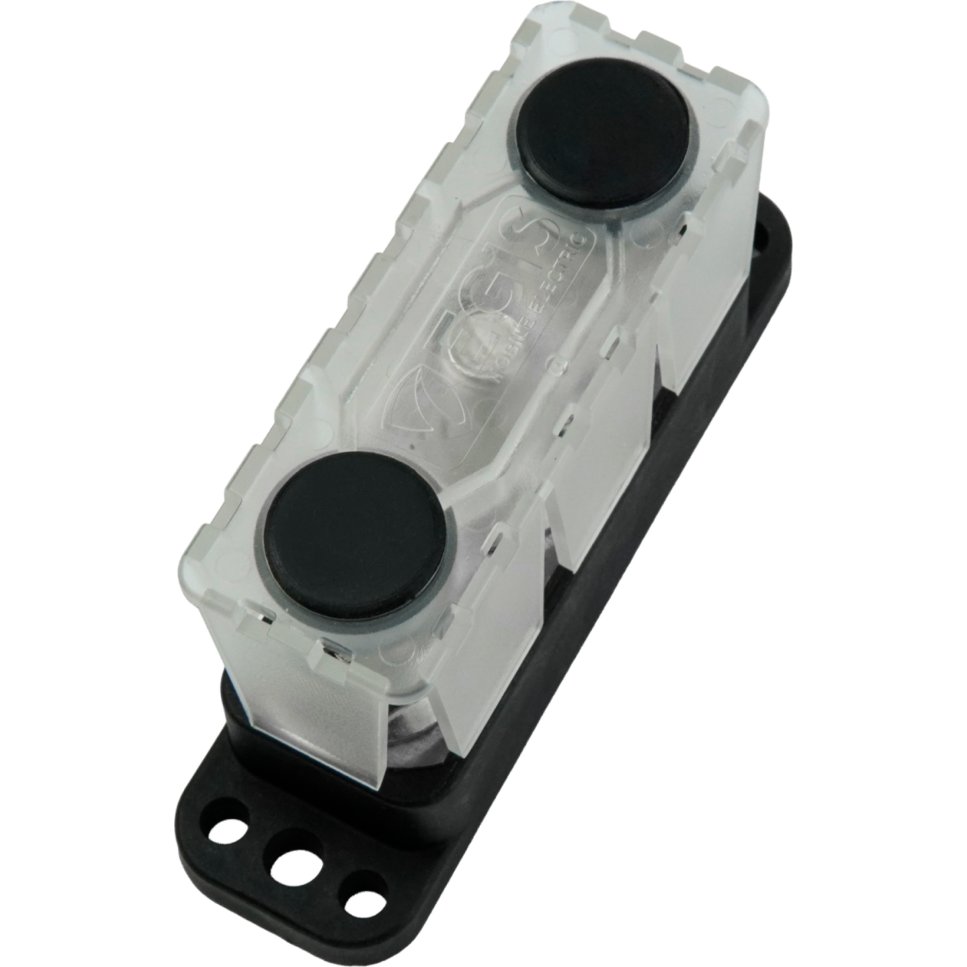

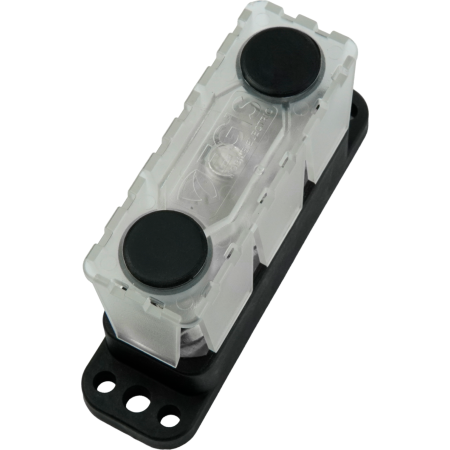

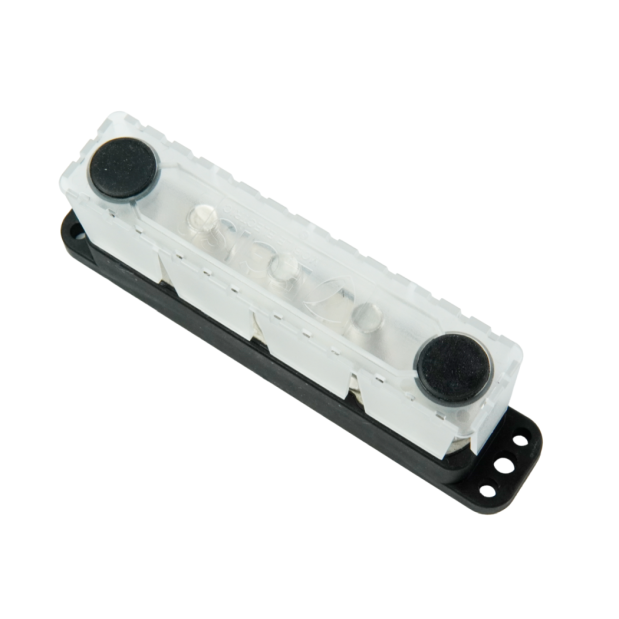

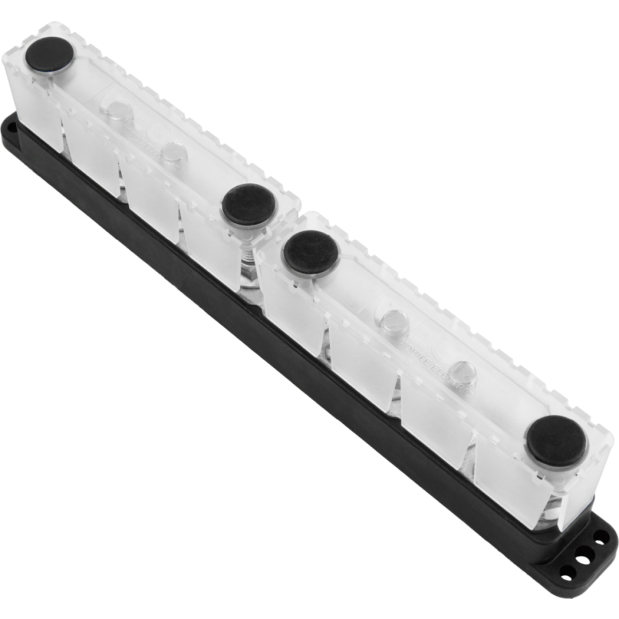

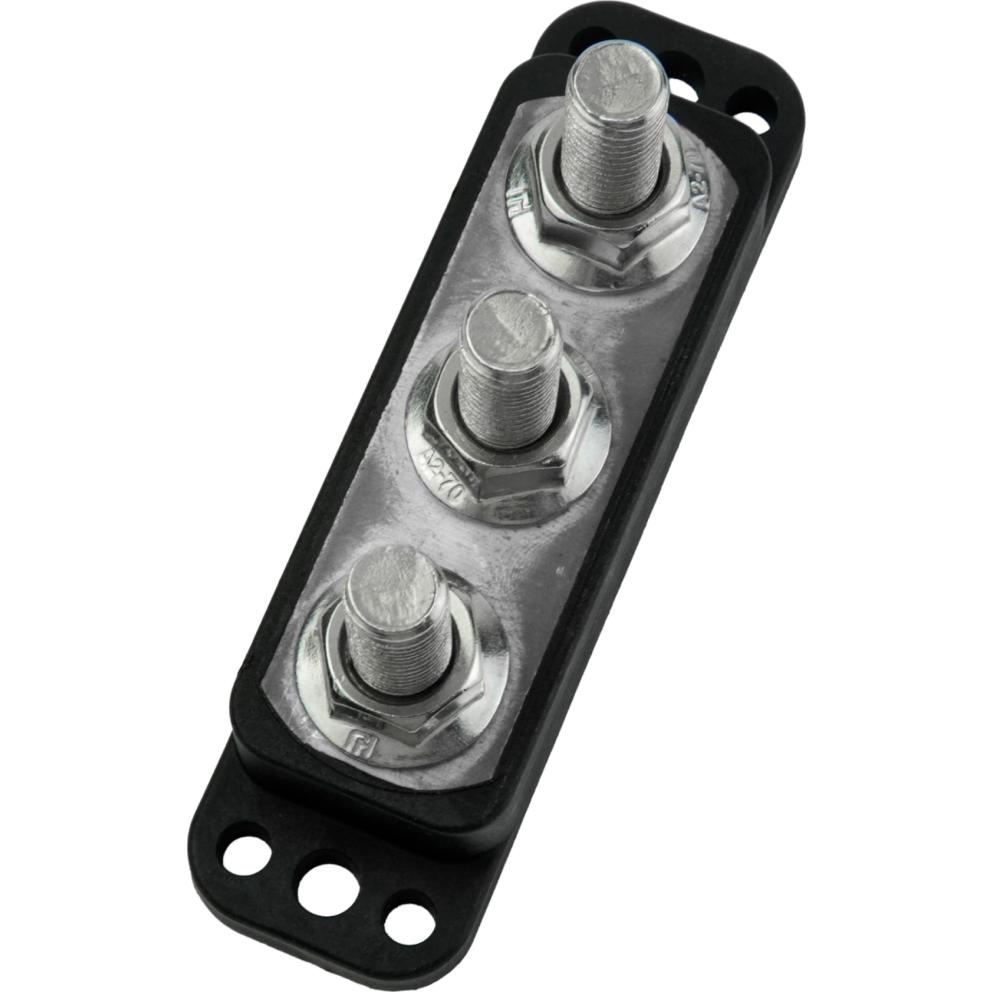

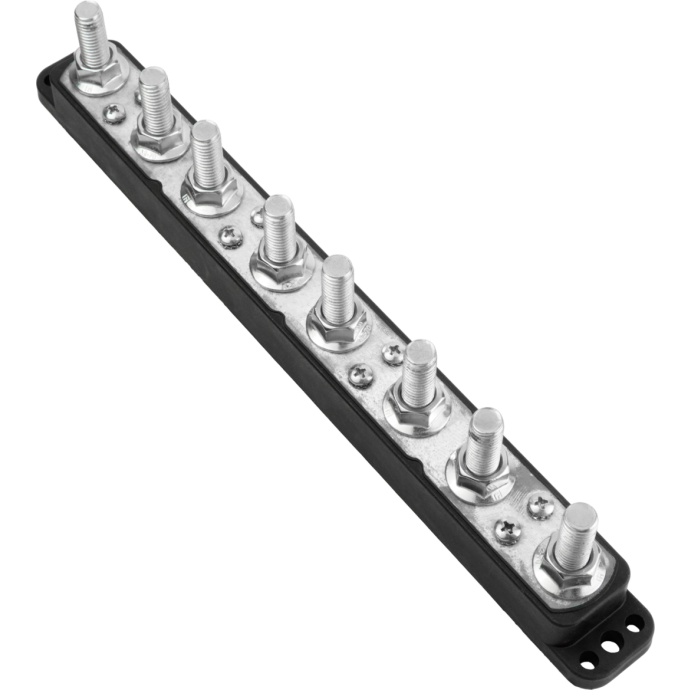

• 3 Stud, 4 Stud, 5 Stud, and 8 Stud
• Includes Protective Covers With Breakaway Cable Exit Tabs
• Tin-Plated Copper And Stainless Steel Self-Locking Hardware for minimal voltage drop

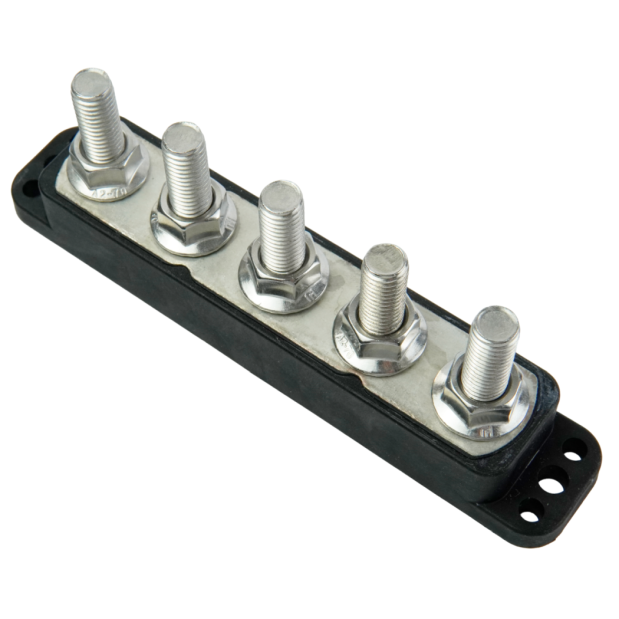

• M10 ( 3/8”) Studs
• Connects To Other Power Management Devices Via Optional Busbar Links (EGI 8790)
