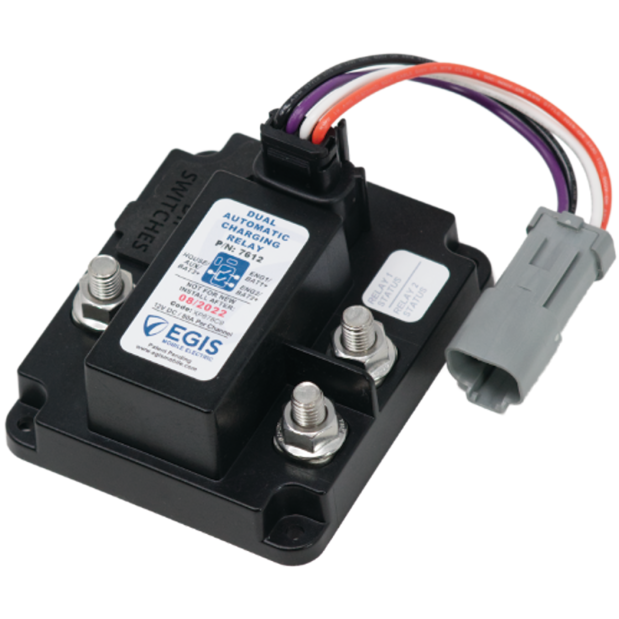

Dual Automatic Charging Relay - Triple Battery

• Two Independent ACRs in One Device reduce installation space and time.Significantly lowers off-state current draw.
• Adjustable Auxiliary Battery Priority provides variable voltage points for each relay to share engine battery energy without sacrificing ability to start.

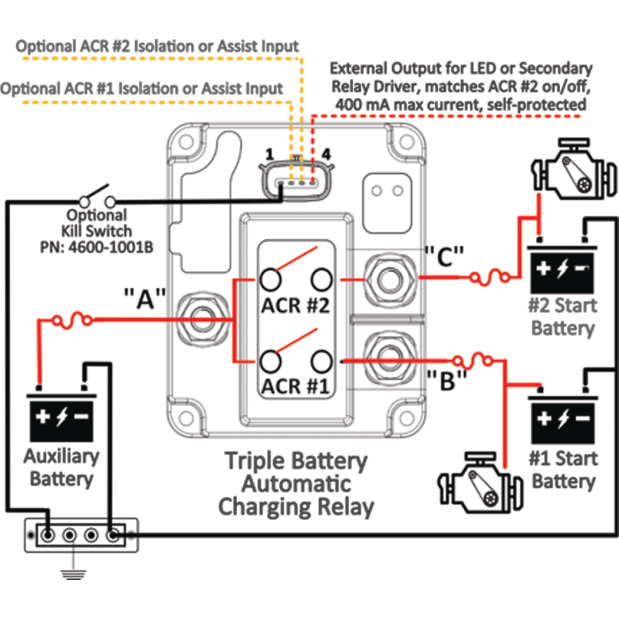

• Start Engine Isolation and Start Assist functions are optional for each relay; allowing protection of sensitive electronics from engine starting events or the option to boost cranking effectiveness.
• Eliminates Dead Start Batteries by sharing charge sources with all batteries and isolating batteries when no charge sources are present
• Simple & Robust Installation: Integrated sealed plug eliminates corrosion, included DT04 harness. Single device reduces installation time, space, cost and points of potential failure
• Additional Low Amp Output can be used to report device status remotely.
• Bullet-proof Construction: Sealed unit, high temperature materials allow mounting anywhere. Integrated thermal overload shutdown protection
• Ultra Low Off-State Current: Compare two typical ACRs (20 mA) vs Dual ACR @ 1.3 mA
• Adjustable Off-Voltage for Auxiliary Battery Priority provides ability to share start battery energy for auxiliary without risking engine starting ability.
• Start/Engine Isolation input option for ensuring sensitive electronics do not experience voltage sags and spikes from the cranking event.
• Start Assist input option to ensure maximum cranking amps available when necessary.
• 4 Year Industry Leading Warranty
