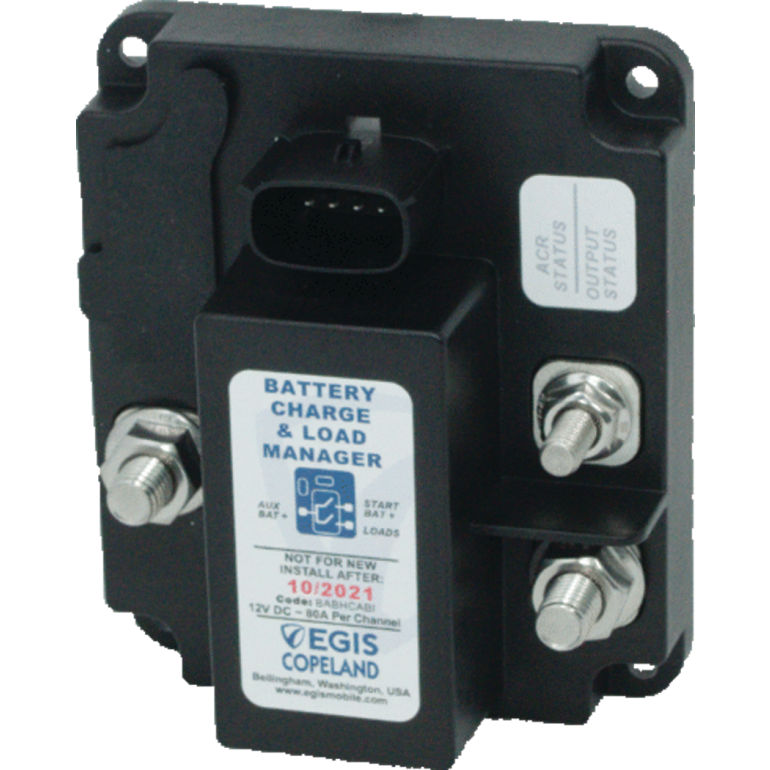

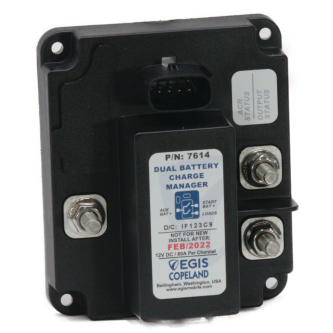

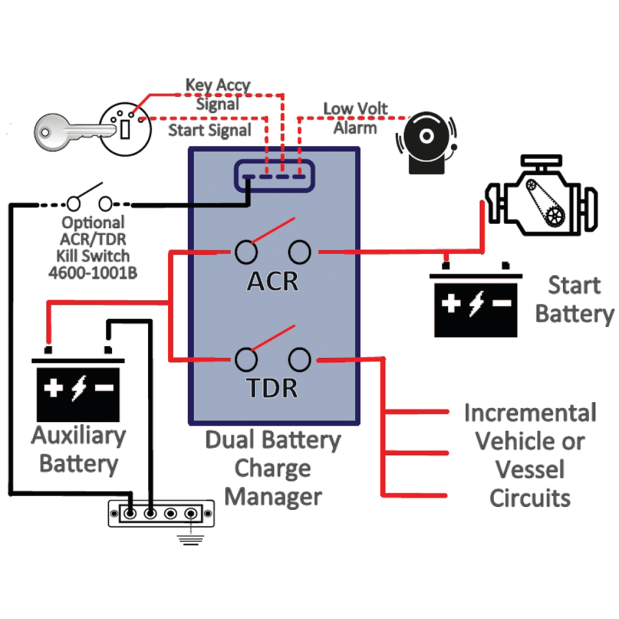

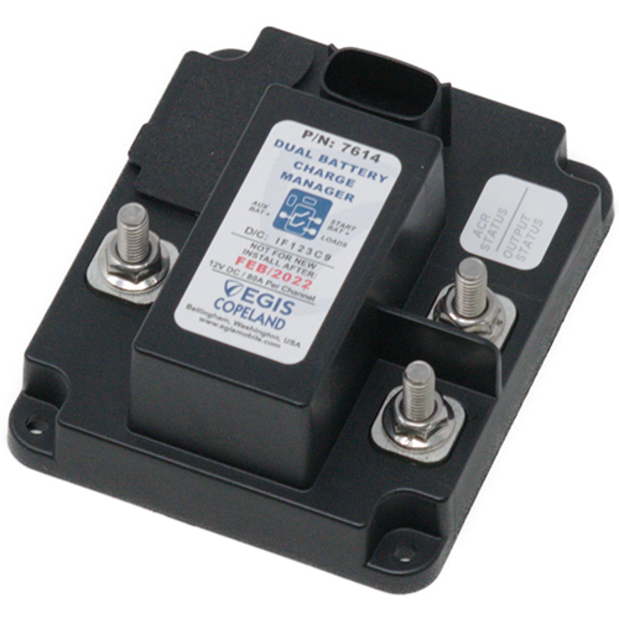

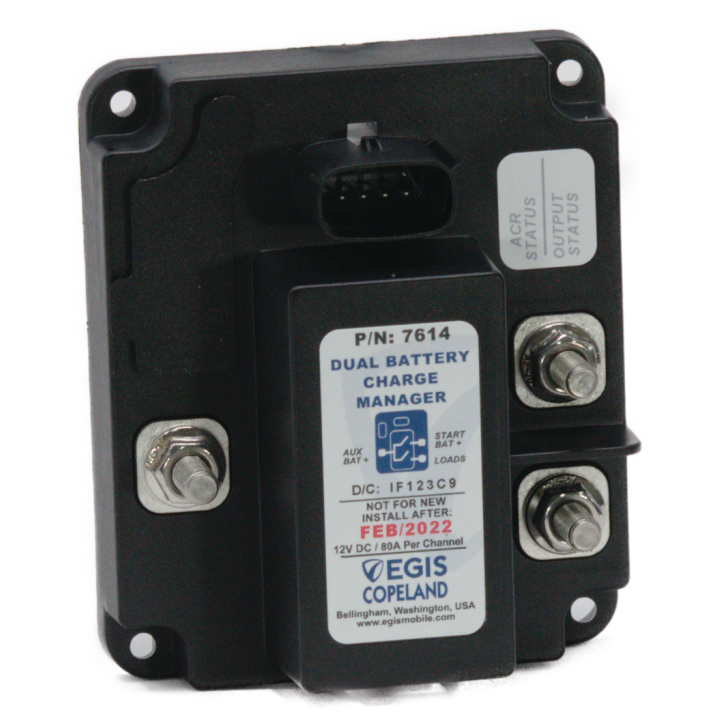

Dual Battery Charge Manager, 80A ACR + 80A TDR

• One Product Handles Two Functions for both auxiliary battery charge management and timed load shedding for add-on circuits.
• Prevents add-on equipment from draining batteries / maximizes and extends operational readiness
• Protects sensitive on-board electronics via optional under/over voltage shutdown and start event isolation.
• Monitors battery voltage and disconnects load from battery to prevent further discharge. Lowest off-state current draw (1.3 mA) available.
• Flexible Control Options via Ignition Key, alternator voltage sense, or both.
• Simple & Robust Installation: Sealed plug with optional long wire leads. Single device reduces installation time and costs and points of potential failure
• Kill Switch control input options for service technicians, emergency OFF
• Adjustable OFF Time Delay & Low Voltage Cut-Off: 0 Seconds to 4 hours, Switch only mode, LVD only mode, 11.0, 11.5, 12.0V DC cutoff levels.
• Remote and on-board diagnosis indicators and simplify trouble shooting
• Bullet-proof Construction: Sealed unit, high temperature materials allow mounting anywhere. Internal temperature overload protection
• Start Isolation input protects sensitive add-on equipment from engine starting event.
• Meets Stringent OEM Standards for electrical transient self-protection 4 Year Industry Leading Warranty
