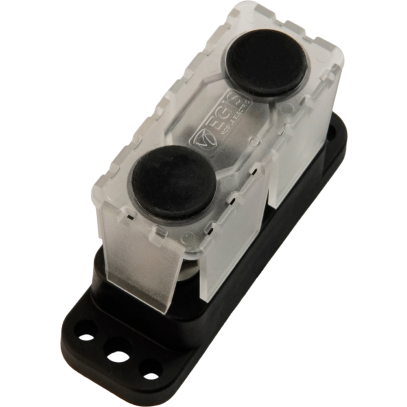

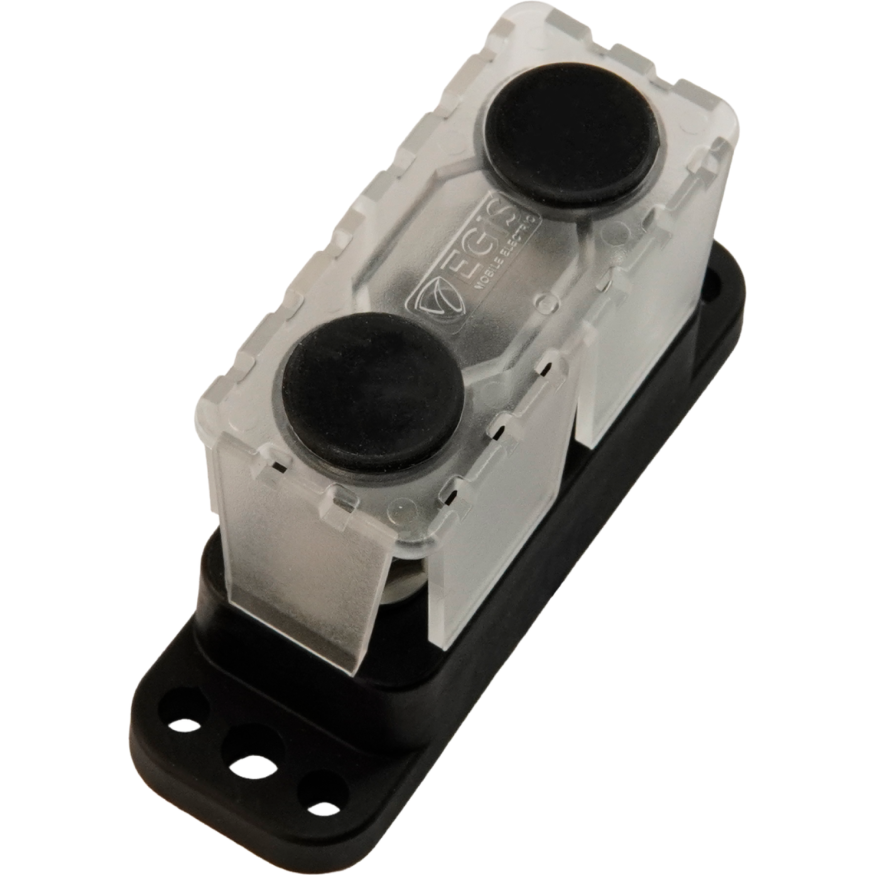

Dual Power Posts with Cover

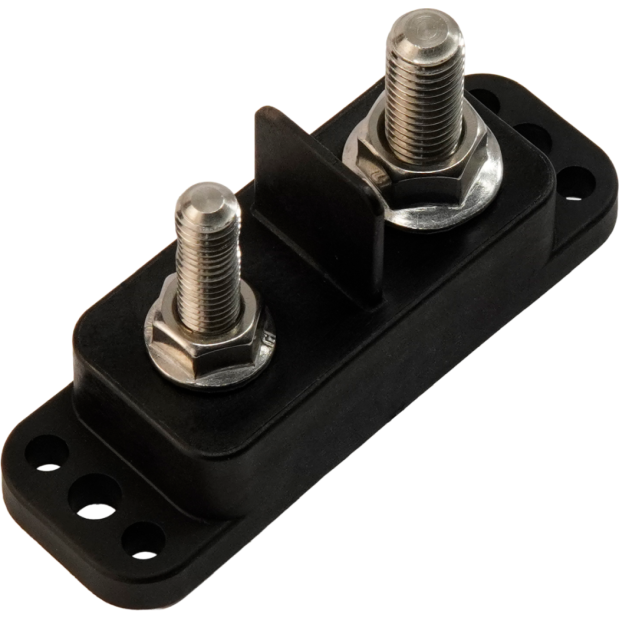

Dual Power Post - 5/16" & 3/8" Stud Size
SKU: 1050330 Item ID: EGI 6020-34
- Dual Independent Power Studs
- 5/16" Stud + 3/8" Stud
- 3/8" Stud + 3/8" Stud
Description
• Independent dual power distribution or collection studs
• Available in 5/16" Stud + 3/8" Stud and 3/8" Stud + 3/8" Stud versions
• Not rated for continuous amperage as the current flows between the terminals stacked on the post and is dependent on the wire and terminal used, not the PowerPost
• Voltage rating: 48 volts DC maximum
• Insulating cover included
• Compact footprint
• Stainless steel self-locking hardware
Specifications
MFG #:6020-34
| Stud Size5/16" & 3/8"
Stud Size
5/16" & 3/8"
Barcode
850074331599
