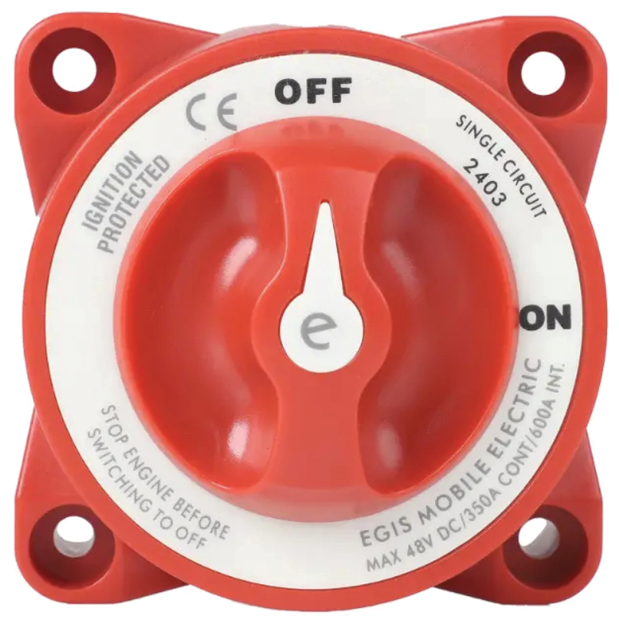

e-Series 350A Battery Switch Off/On

• Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation.
• Ignition Protected
• Safe for installation in closed compartments with potential explosive gases.
• Serrated Flange Lock Nuts improves resistance to cable terminal loosening in high-vibration environments.
• Flexible Mounting Options allow for multiple mounting con?gurations and a variety of installation types.
• Harsh Environment Design with stainless-steel hardware, serrated ?ange nuts, and high temperature materials.
• Isolates Electrical Loads from batieries when electrical system is not in use, ensuring current draw from load side of switches is eliminated.
• Simple Batiery Control Operation allows connecting, isolating, and combining of up to two batieries with one switch.
• Bullet-proof Construction: Stainless-steel hardware, tin-plated copper, and high-temp materials support harsh environment applications.
• 4 Year Industry Leading Warranty
• Maximum Voltage (Single Circuit): 48V DC
• Maximum Voltage (Selector / Dual Circuit): 32V DC
• Stud/Thread Size: 3/8”-16
• Terminal Stud Torque: 140 in-lbs (15.8 N-m)
• Ring Terminal Size Acceptance: 3/8” (M10)
• Mounting Holes: 1/4" (M6) Screw
• Live Switching Rating: 25 Amps
• Ignition Protection Rating: SAE J1171 / ISO 8846
• Includes Alternator Field Disconnect (AFD): PN 2402 Only
• Panel/Bulkhead Mount Hole Size: 3-5/8” Diameter
• Cable Size to Meet Rating: 4/0 AWG
