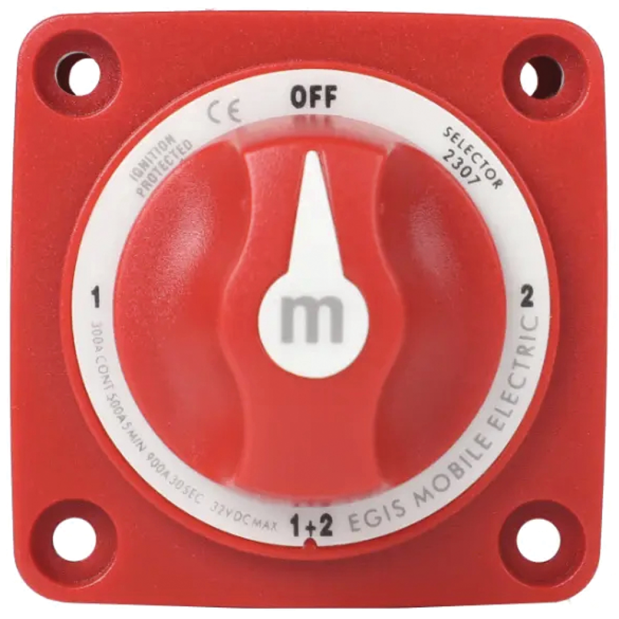

m-Series 300A Mini Battery Switch - Off/1/2/Both

This Off/1/2/Both Egis Mini Series battery switch has a compact 2.87" x 2.87" footprint that allows for installation in areas where space is limited. Flexible mounting options allow for a variety of mounting configurations - surface mount, bulkhead mount or panel mount.

The switch is sealed against dust and water intrusion to ensure reliable circuit protection for the life of the installation.
It is Ignition Protected, making it safe for installation in closed compartments with potentially explosive gases.
Lock nuts with serrated flanges improve resistance to the cable terminal loosening in high-vibration environments.

• Dimensions: 2.87"L x 2.87"W x 3.32"H

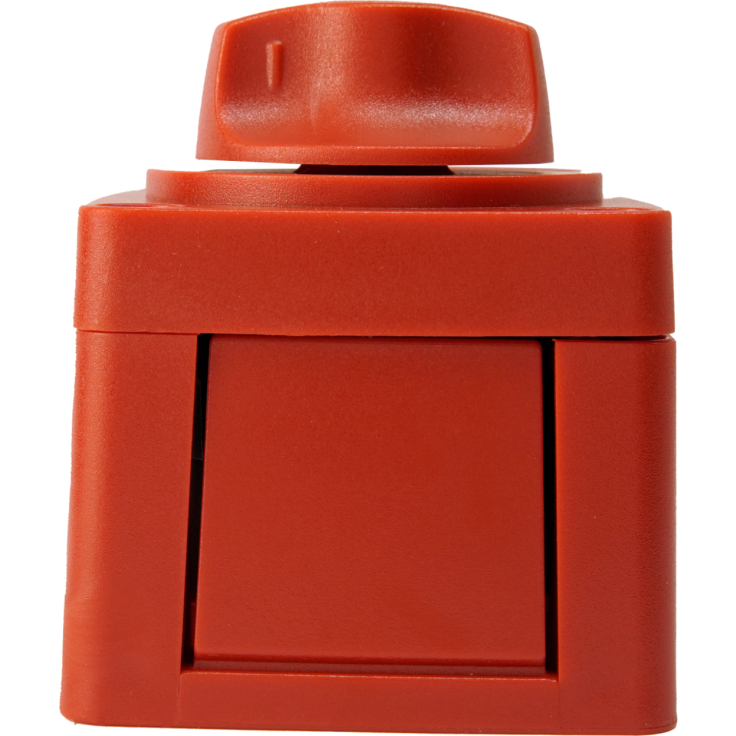

• Easy break-away side panels allow for wire routing in any direction while maintaining maximum coverage of conductors
• Harsh environment design with stainless-steel hardware and high temperature materials
• Cut-out hole for panel mounting is 2-5/16"; for bulkhead mounting - 2-5/8" (52mm)
• 300 Amp Continous rating (requires 4/0 AWG cable)
• Max 48 VDC

Note - This switch is not meant to switch live loads over 25Amps. Ensure that the engine is turned off before switching the battery switch to off.
