MaxiBus - 250A, 5/16" Studs

Egis 250 Amp MaxiBus are high-amperage bus bars used for power distribution in demanding mobile electric applications (vehicles, boats, etc.).

• High Current Rating: They are typically rated for a maximum continuous current of around 250 Amps.
• Voltage: Maximum voltage rating is 70-72 VDC.
• Construction: Made from tin-plated copper for excellent conductivity and corrosion resistance.

These robust bus bars are used to consolidate multiple high-current wires to a single power or ground source, creating a clean and reliable power distribution point. They are specifically designed for demanding use cases in marine or heavy-duty vehicle applications where reliability and environmental resistance are critical.

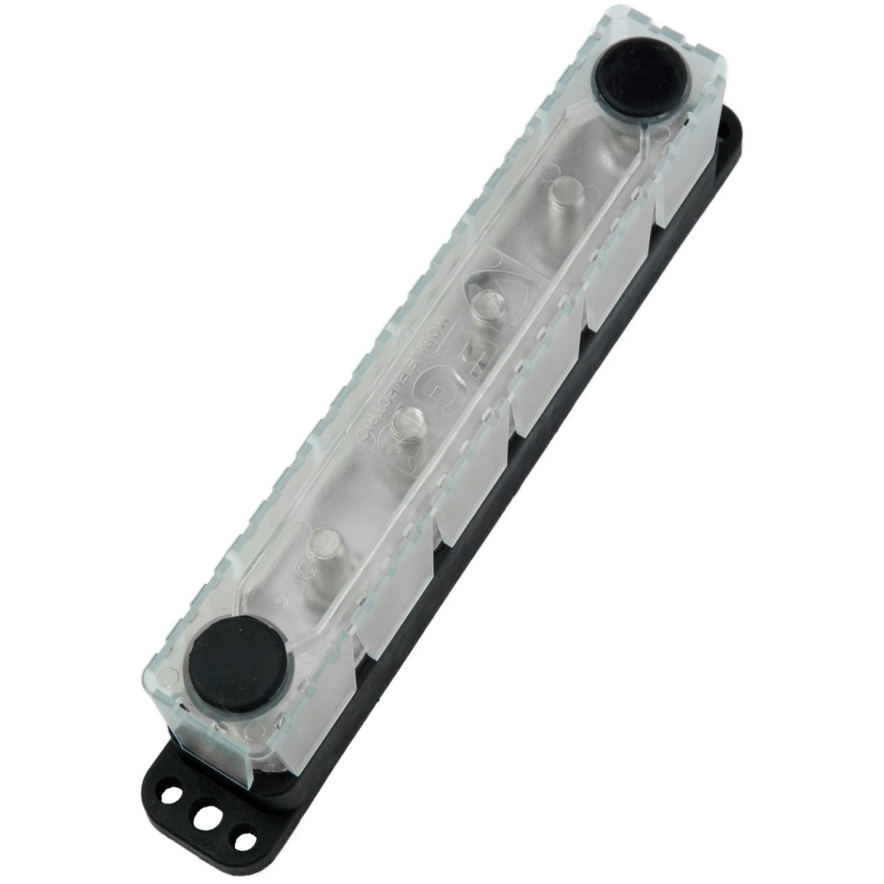

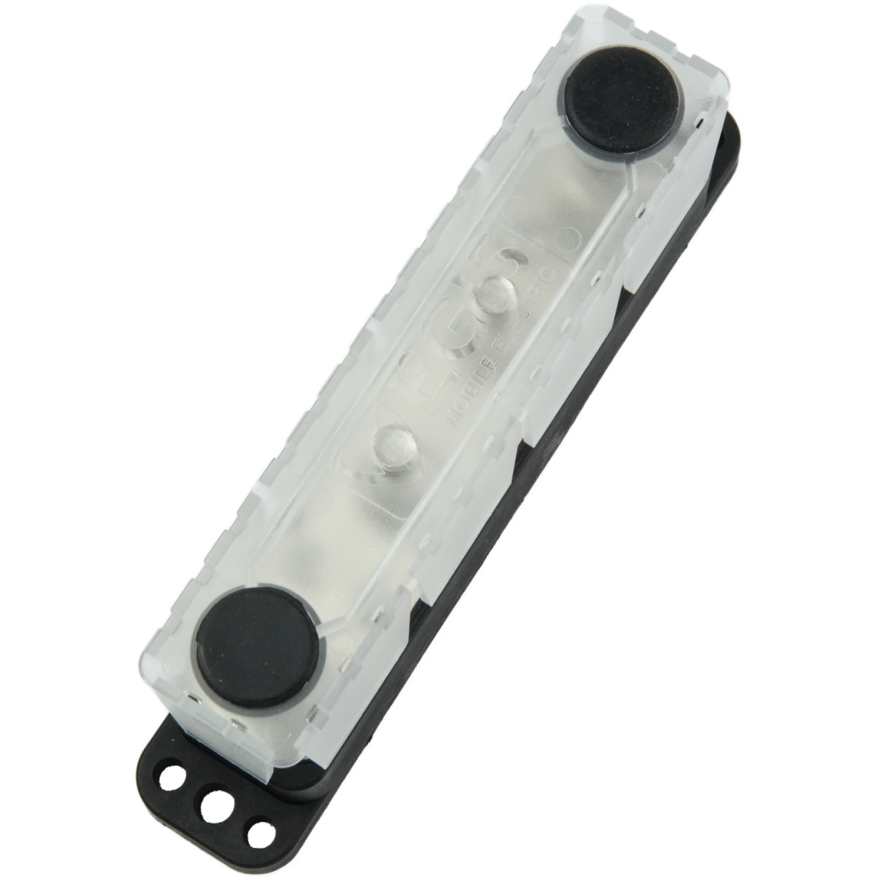

Includes Transparent Cover that allows inspection of torque markings without removal, and provides break-away side tabs for cable / terminal access while ensuring maximum protection against inadvertent shorts to adjacent parts.

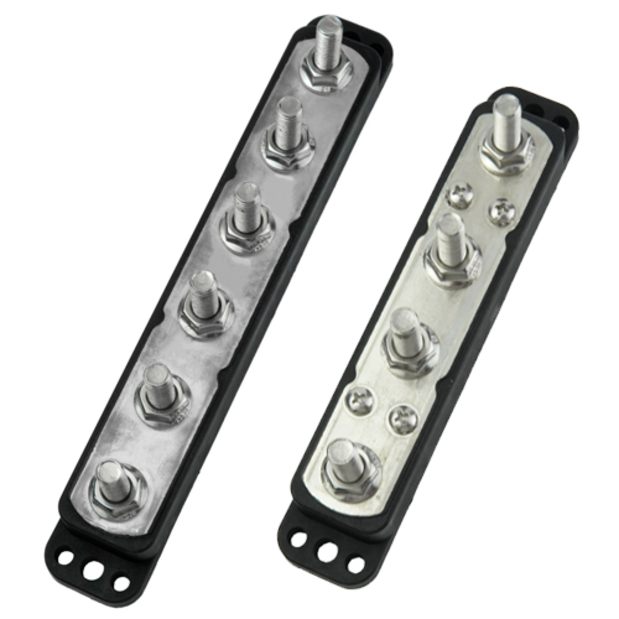

Fisheries offers these MaxiBus bus bars in two sizes:

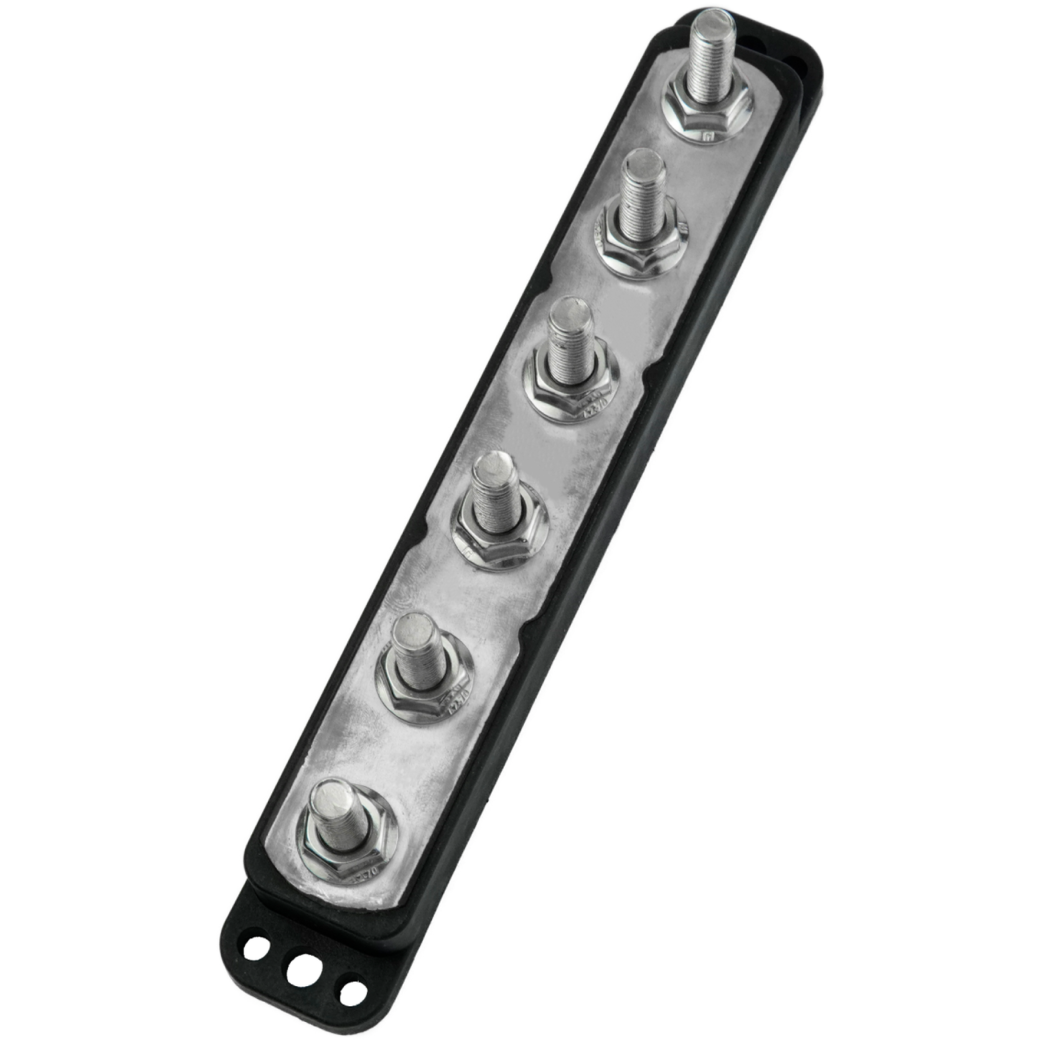

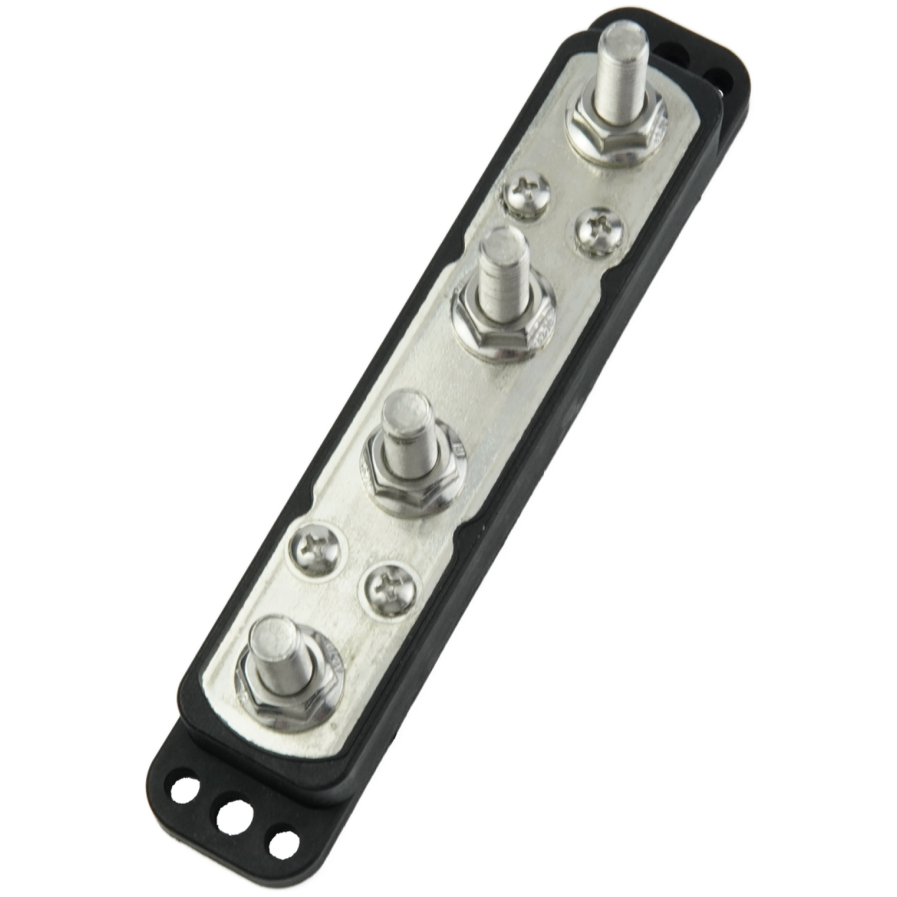

• 4 Stud and 6 Stud
• Includes protective covers with breakaway cable exit tabs
• Tin-plated copper and stainless steel self-locking hardware for minimal voltage drop
• M8 (5/16”) studs
• Connects to other power management devices via optional busbar links (EGI 8790)
