Terminal Blocks - 65 Amps

These terminal blocks are rated for a maximum current of 65 Amps.

Terminal Blocks allow for connecting groups of two wires while protecting the ring terminal splices from shorting to adjacent circuits or ground with high insulating walls.
Anti-rotation ribs on the conductor strips reduce the chance of wire terminal rotation if strain relief distances are long.

Marine grade materials ensure long lasting reliability in harsh environment applications.
Bullet-proof construction using high temperature insulation material, tin-plated copper alloy conductors for corrosion resistance, and stainless steel fasteners.

• 4-year warranty

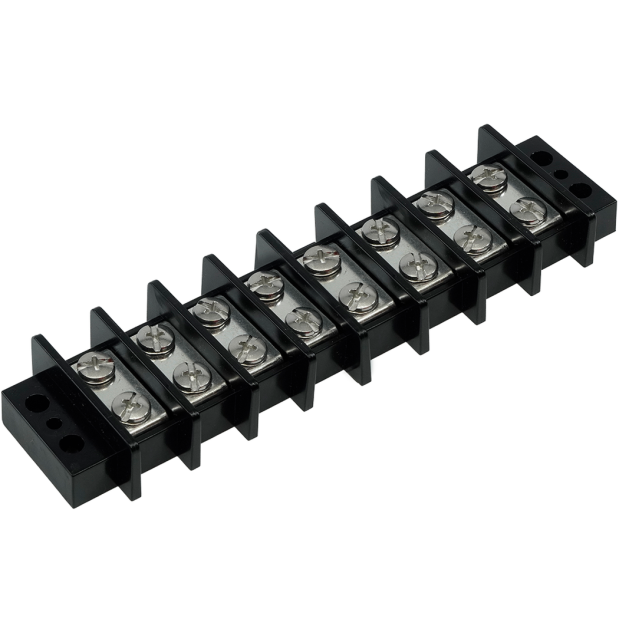

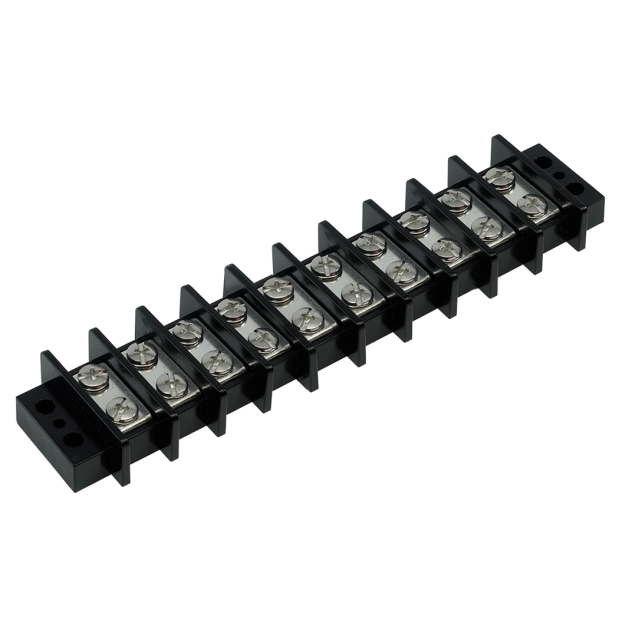

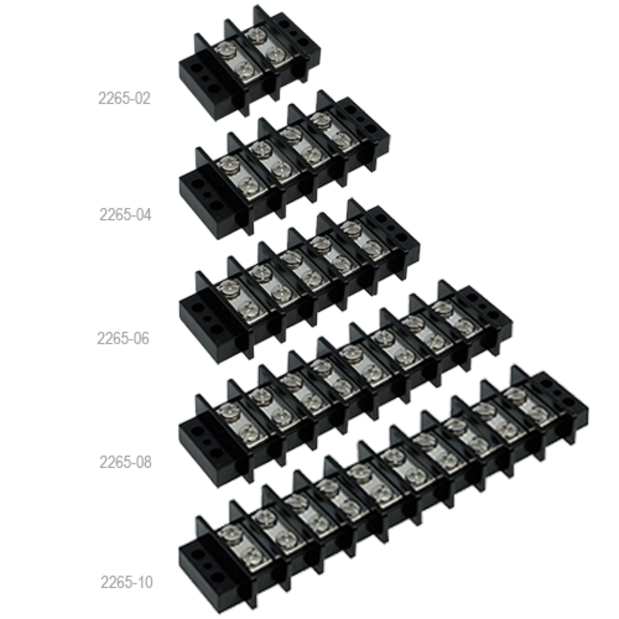

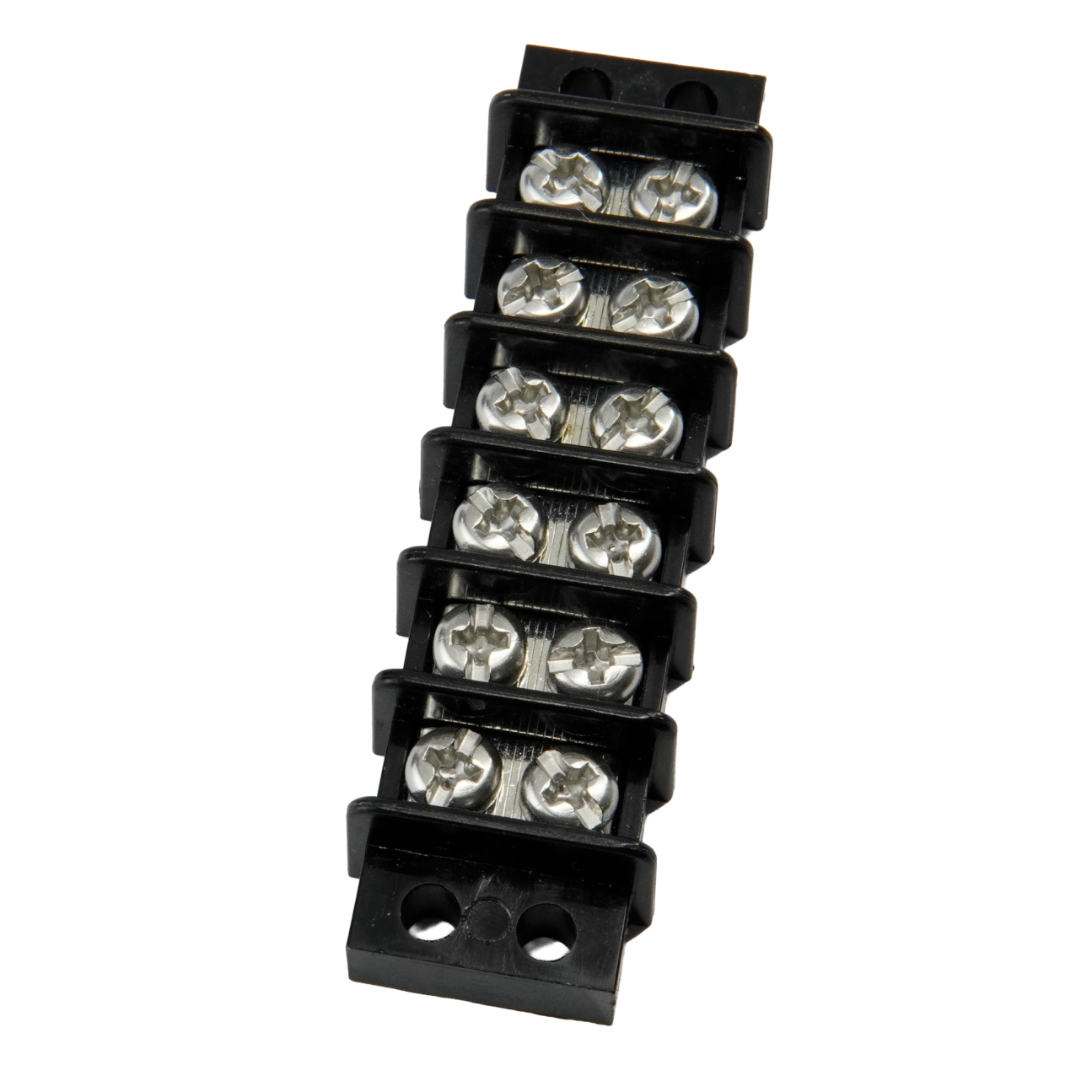

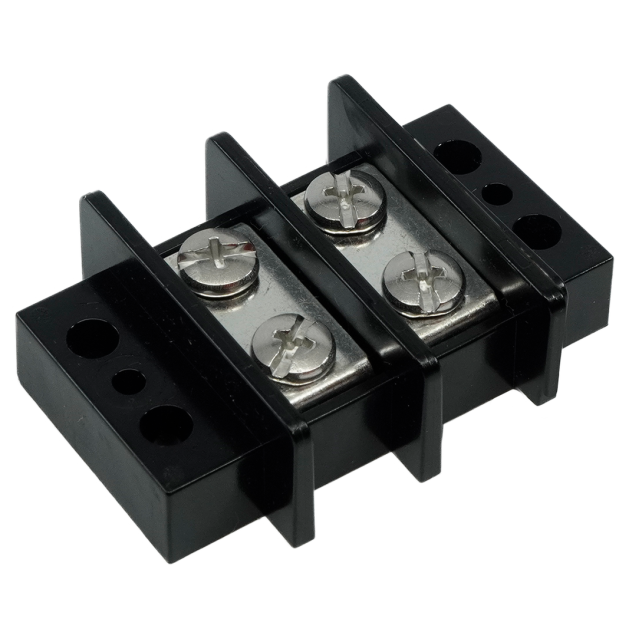

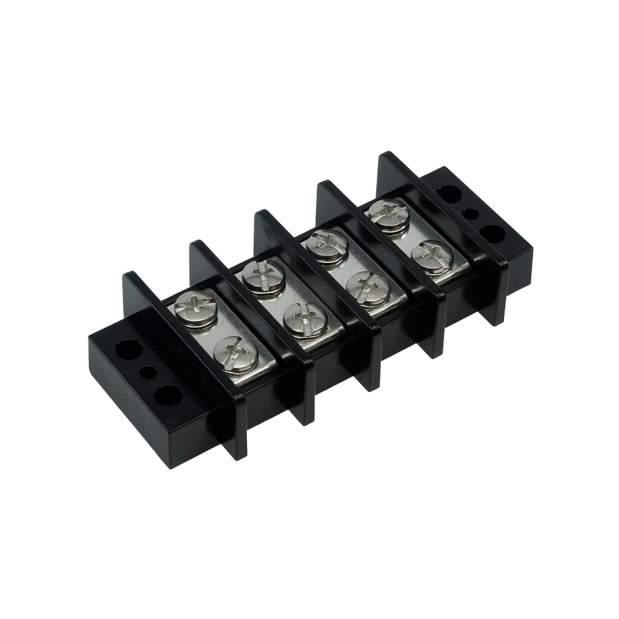

• Terminals blocks available in 2, 4, 6, 8, or 10 matching connection pairs
• 125/240 Volt AC or DC rated
• Supports 12, 24, 36, and 48 V DC systems, as well as 120/240 V AC applications
• 20 Amp, 30 Amp and 65 Amp sizes have available jumpers for bridging circuits as needed
