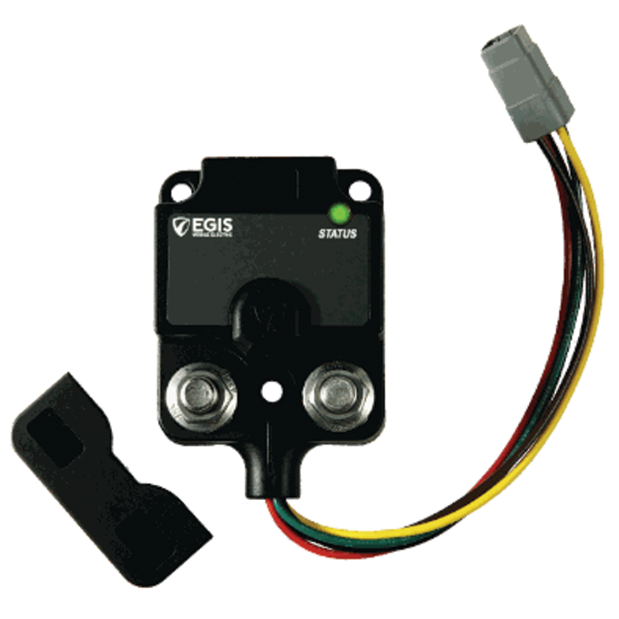

XD Series Bi-Stable Flex Relay/ACR/LVD - DTM

• 500 Amp Continuous Capability / Extremely Compact Footprint
• Available With or Without Intuitive Front Facing Manual Override Knob with Ability to Lock Device ON or OFF for Servicing
• Flexible Functionality via Dip Switches, utilize as a Relay/Battery Disconnect, Automatic Charging Relay, or Low Voltage Disconnect
• Supports Single/Multiple Engine Installations with Dual Start/Engine Isolation Inputs
• Remote ON/OFF/Auto Input Allows Forced Close or Open or Allowing Automatic Operation based on Voltage
• Local and Remote LED Indicators
• Ultra-Low Power Draw: Lowest off-state current draw in industry (1.3 mA)
• Simple & Robust Installation: Sealed plug/harness included. Combined timer & high-amp relay reduces install time/costs. Optional output bus bar connects RT or CT fuse blocks.
• Flexible Application Options: Install as a Time Delay Relay, Battery Management Relay, Low Voltage Disconnect, or Simple Relay. On/Off trigger via external Ignition signal and/or alternator voltage sense and adjustable low voltage protection levels increase flexibility
• Adjustable Optional OFF Time Delay: 0 seconds to 4 hours.
• Diagnostic Feedback via optional external led and on-board LEDs
• Bullet-proof Construction: Sealed unit, high temperature materials allow mounting anywhere on vehicle.
• Integrated thermal overload protection
• Optional Kill Switch eliminates need for using thermal circuit breakers as service maintenance switches, reducing voltage drop to electrical loads.
• Meets Stringent OEM Standards for electrical transient self-protection
• 4 Year Industry Leading Warranty
• See linked tech document for detailed specs and schematics
