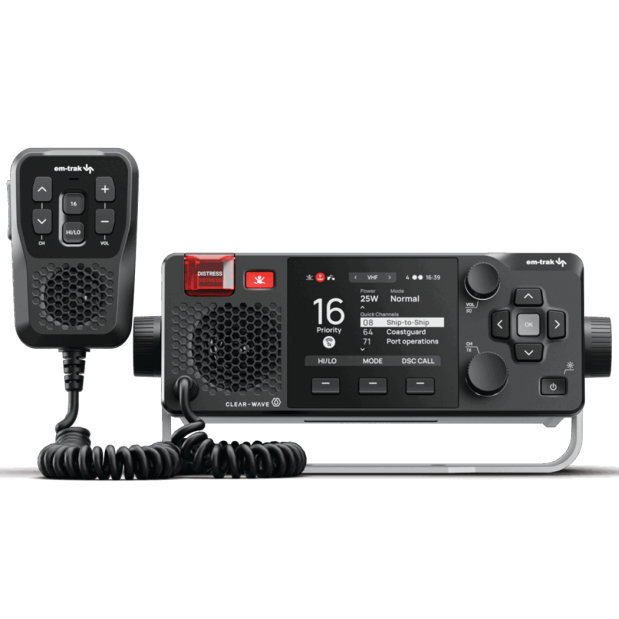

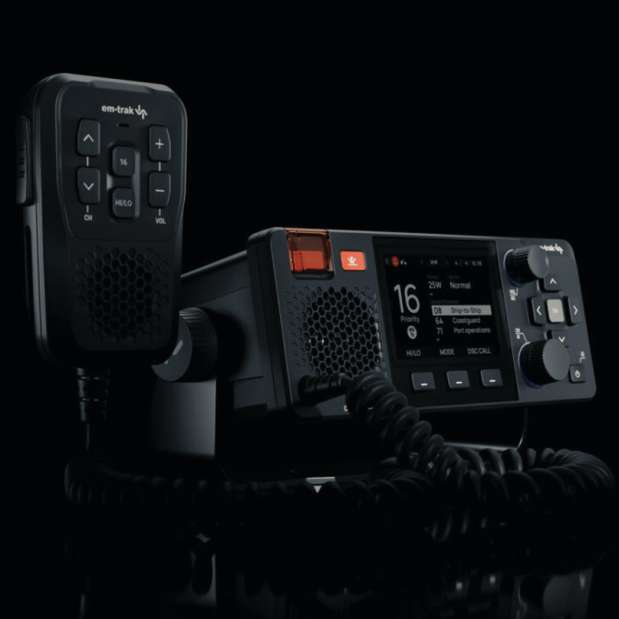

X100 Marine VHF with Class B AIS

The em-trak X100 integrates robust VHF, DSC, and AIS technology with user-friendly wireless control.
It serves as the core of a safer, more serene, and better-connected boating experience.

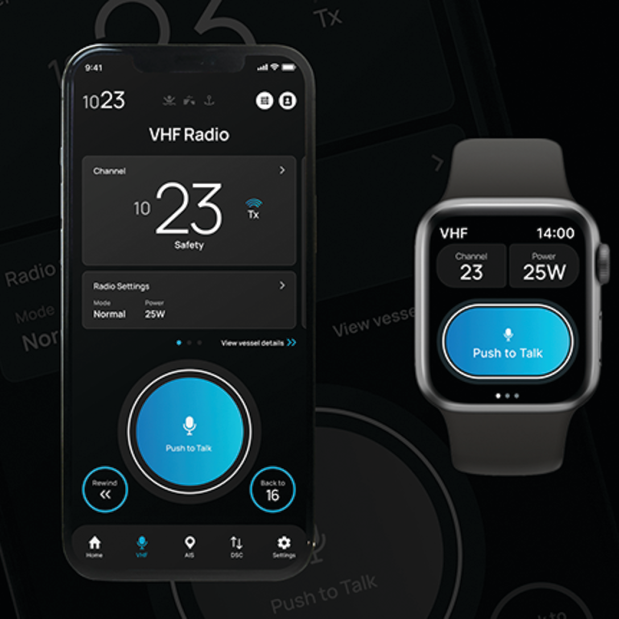

The em-trak CONNECT-X app turns your phone or watch into a wireless mic for full X100 control anywhere on your vessel.
Engineered & Built for Boating Life
• Ruggedized, water and weather-proof
• CLEAR-WAVE digital audio processing
• The full-color direct-sunlight visible display
• WiFi & Bluetooth
• NMEA2000 & 0183
• 12V or 24V DC
• Integrated GPS (external antenna optional)
• Integrated zero-loss VHF antenna splitter – only one antenna is required for both AIS and VHF
• Ergonomic intuitive controls and UI
• Flush, desktop, ceiling mounting options

Outstanding Functionalities that Enhance Your Boating
• CONNECT-X - Transform your smartphone or smartwatch into a full-feature wireless command mic. You can use it to make and receive calls, monitor VHF/DSC, AIS traffic, and nav alerts anywhere on your boat.
• VHF/DSC – X100 is a certified Class DVHF/DSC marine radio with a full feature globally certified Class D VHF/ DSC radio.
• Chat to anyone on the boat using the Connect-X private intercom functionality.

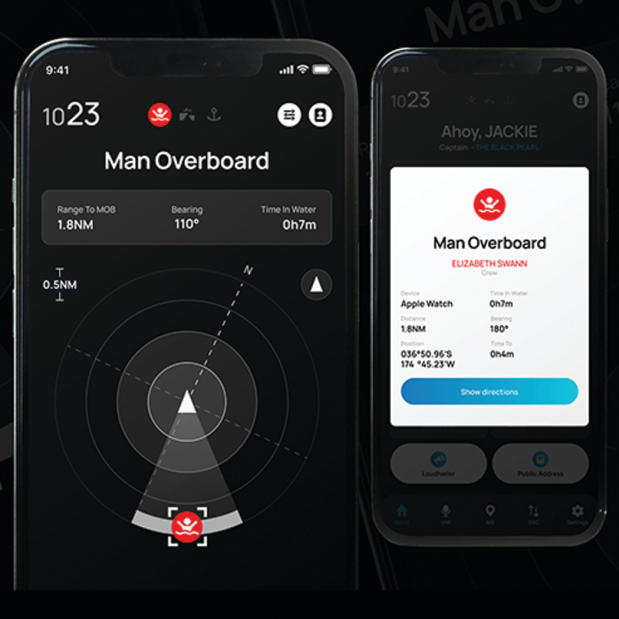

• Enable the MOB function and be alerted to any connected device that leaves the boat.
• High-powered AIS that receives and transmits. Integrated navigation alerts allow you to go silent and stop transmitting when you want.
• Single system-wide phonebook for Vessel DSC, AIS & On-board Intercom for consistent communication by whatever means vessel-wide.
• Wi-Fi Access Point mode is for standalone installation, and Station mode is for integration within existing vessel Wi-Fi infrastructure for a scalable solution that will meet the needs of solo mariners on small boats to medium to large motor yachts and sailing vessels.
• Streaming of all received AIS data to navigation apps on tablets and phones over Wi-Fi to easily integrate 3rd party navigation apps into your system.
• Autoset DSC “Nature of Distress” when in a MOB situation for the quicker triggering of DSC distress following a MOB situation.

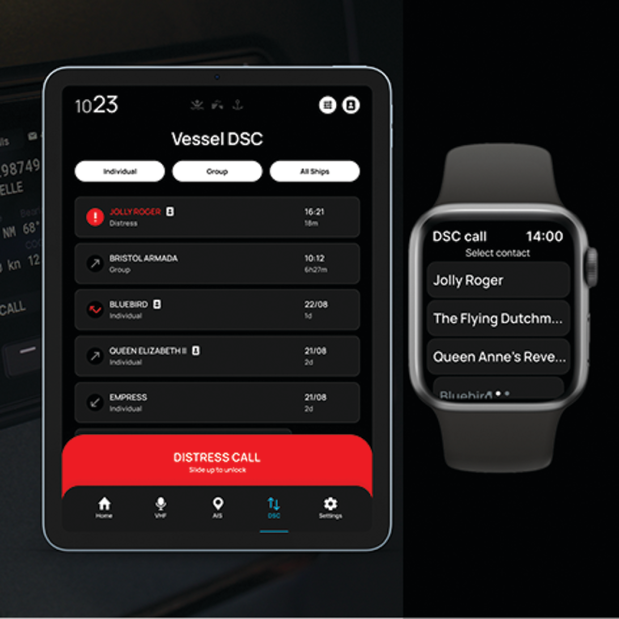

• Initiation of DSC calling from Phonebook, AIS List/Plot, or via direct entry of MMSI to make using DSC much more convenient, quicker, and feature-rich without having to enter MMSI numbers directly.

Advanced Safety and Communication
• VHF/DSC: Dependable Class D communication
• AIS: Track, be seen, and receive CPA alerts
• MOB: Instant detection and guidance
• Wireless Command-Mic: Control from anywhere onboard
• Private Intercom: Crew connection without chaos
• One-Touch Calling: Call AIS targets instantly
• When something matters — a close pass, a call for help, a MOB alert — the X100 acts immediately.

Unique X100 Features
• Dual, tri, or custom tri-channel monitoring.
• Quick-access channels and simple fist-mic controls.
• Two-way crew intercom and public address system.
• Loudhailer for direct vessel-to-vessel communication.
• Full compliance with international channel mappings.

Specifications
• RF Frequency range: TX: 156.025-161.425 MHz, RX: 156.300-161.925 MHz
• DSC: 156.525 MHz
• AIS 1, 2: 161.975, 162.025 MHz
• Usable Channels: INT, USA, CAN, ATIS
• Power Supply: 9.6 - 31.2V DC
• Operating Temperature Range: -13° to 154° F (-25° to 68° C)
• Antenna Impedance: 50 Ohms
• Transmitter Output Power: VHF: 25W, 1W AIS: 5W
• Audio Output Power - Internal Speaker: 5W producing 81 dB @ 1 m
• External Speaker/Loudhailer: 15W
• NMEA 0183/NMEA 2000: Ed 3.101
• Wireless LAN Standards: IEEE802.11 b/g/n
• Authentication and Encryption: WEP (64/128 bit), WPAPSK (TKIP), WPA2-PSK (AES)
• Bluetooth: 4.2 classic and low energy (BLE)
• AIS Class B SOTDMA Certification: I EC 62287-2:2017
• DSC/VHF Certification: EN 301025 v2.2.1 and IEC 62238
• NMEA Certification: IEC 61162-1 and IEC 61162-3
• Environmental Certification: IEC 60945 "Exposed" + IEC 60529 IP66
• 9.8"W x 3.3"H x 6.4"D (249 x 84 x 162 mm)
• 1.5 lbs (700 g)
